CRL P8 Brushed Stainless Steel 42" Fixed End Post Glass Railing Kit
Item# P8F42EBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights also available
- Two standard stainless finishes; custom powder paint finishes available

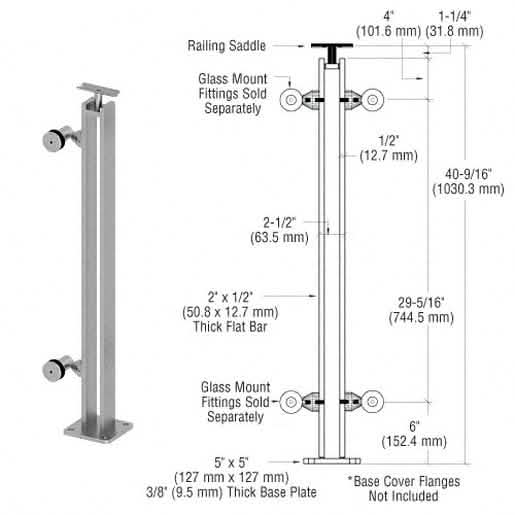

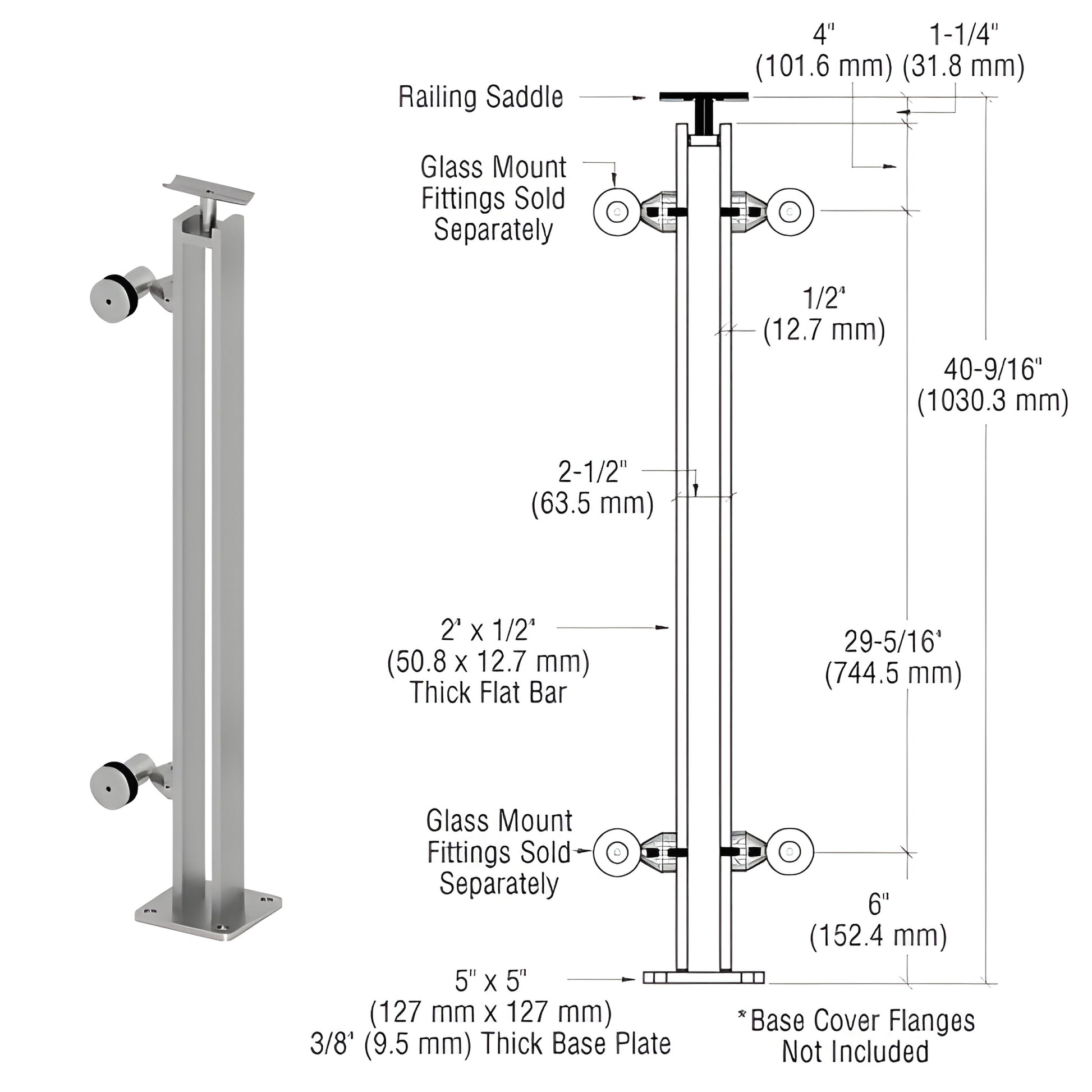

These innovative Surface Mounted Post Railing Kits (SKU: P8F42EBS) are suitable for guard rail and hand rail applications. CRL manufactures these kits from 1/2" x 2" (12.7 x 50.8 mm) stainless steel flat bars for durable, commercial-grade performance. Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 hand rail tubing. Each kit is supplied complete with a base plate and welded top saddle. For screws to attach the top rail to the saddle, specify Cat. No. PRS1032 — 10-32 x 5/8" stainless steel screws, 50 per pack.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; fittings must be purchased separately.
Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary depending on your monitor.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Highlight: durable stainless steel surface mounted post railing kit for 1/2"–1" glass panels — available in standard and custom heights and finishes. Order SKU P8F42EBS or contact CRL Customer Service to request exact shipping weight or place an order.
