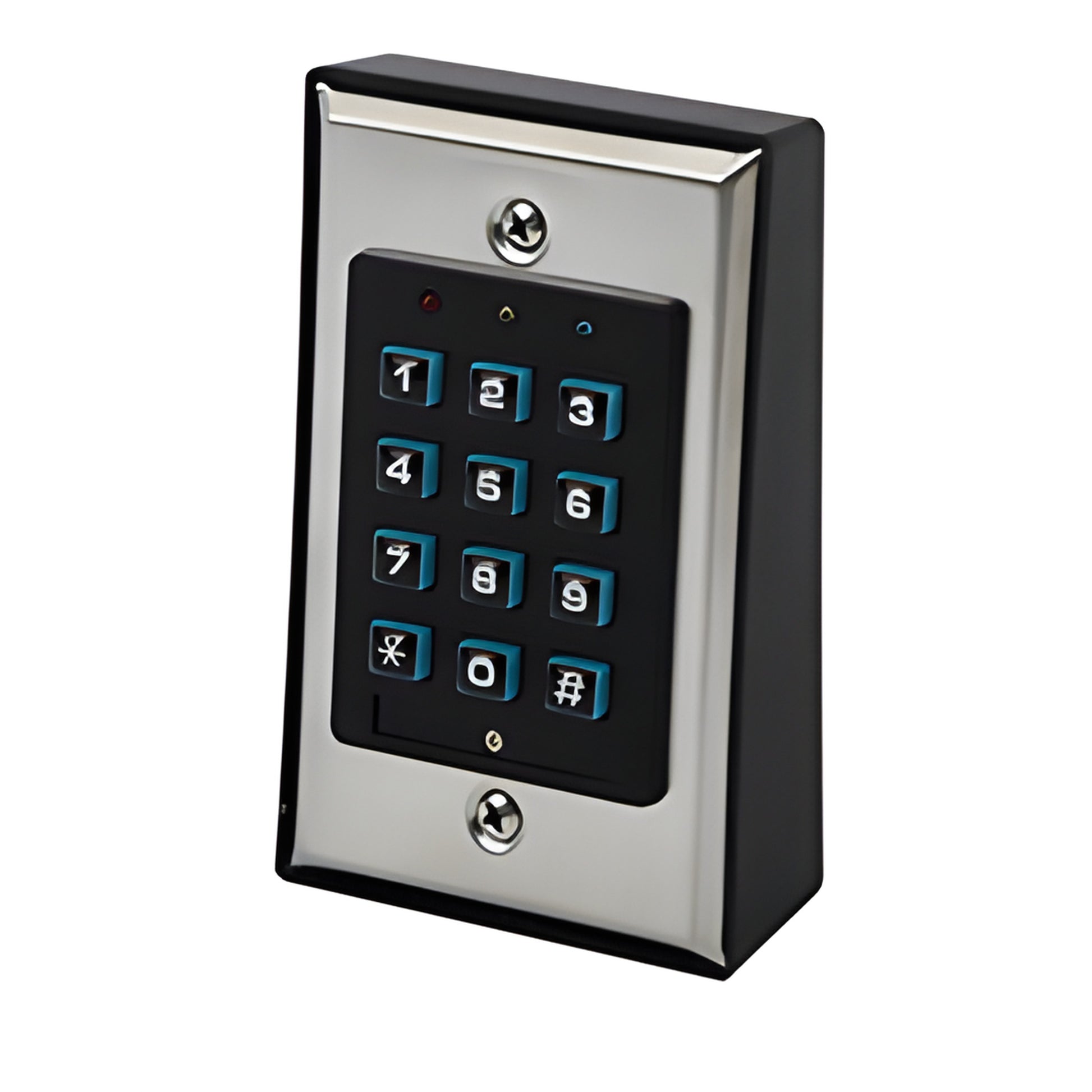

CRL Brushed Stainless Programmable Keyless Entry Door Keypad
Item# MLDK83N
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Face Plate Height
4-1/2
Face Plate Width
2-3/4
Input
12/24V AC/DC
Size
2-7/8" x 4-5/8" x 1-7/8" (Junction Box)
- Programmable access control keypad for security applications — supports 100 user codes (SKU: MLDK83N)
- Four programmable code levels: Master, User, Duress, and Quick
- Dual-voltage 12/24V AC/DC operation (also available as 12VDC single-voltage model)
Designed as a self-contained, programmable access control keypad with a built-in 5A relay for electric strikes, the MLDK83N offers secure access management with over 100 million possible code combinations across Master, User, Duress, and Quick code levels. Supplied complete with junction box and brushed stainless steel faceplate, this keypad is ideal for commercial and residential security installations requiring a rugged, tamper-resistant keypad.
SPECIFICATIONS:
Input: 12/24V AC/DC
Contacts: N.O. or N.C. – 30V DC Max
Output Relay: 5A
Non-volatile EPROM memory
Audible confirmation buzzer and status LEDs
Programmable N.O. or N.C. output
Dimensions: Junction Box: 2-7/8" x 4-5/8" (74 x 117 mm); Box Depth: 1-7/8" (48 mm)
Finish: Brushed stainless steel faceplate
Product Availability / Warning:
The dual-voltage 12/24V AC/DC MLDK83N keypad is temporarily out of stock. A limited supply of the 12VDC single-voltage version is available as MLDK83N12VDC. A new dual-voltage replacement model will be announced when available. For an immediately available dual-voltage programmable keypad alternative, see catalog number SDC920.
Most shipping weights are approximate and have not been verified. If you require exact weight to calculate shipping costs, please contact CRL Customer Service before ordering. Product images are actual product or close representations; color may vary by monitor.
Order the available MLDK83N12VDC now or contact us for updates on the MLDK83N dual-voltage keypad and compatible programmable access control solutions.
Installation Instructions
