CRL PTH Brushed Stainless Top Transom Glass Door Patch Fitting
Item# PTH23SBS
Shipping Weight: 10.56 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.56 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)

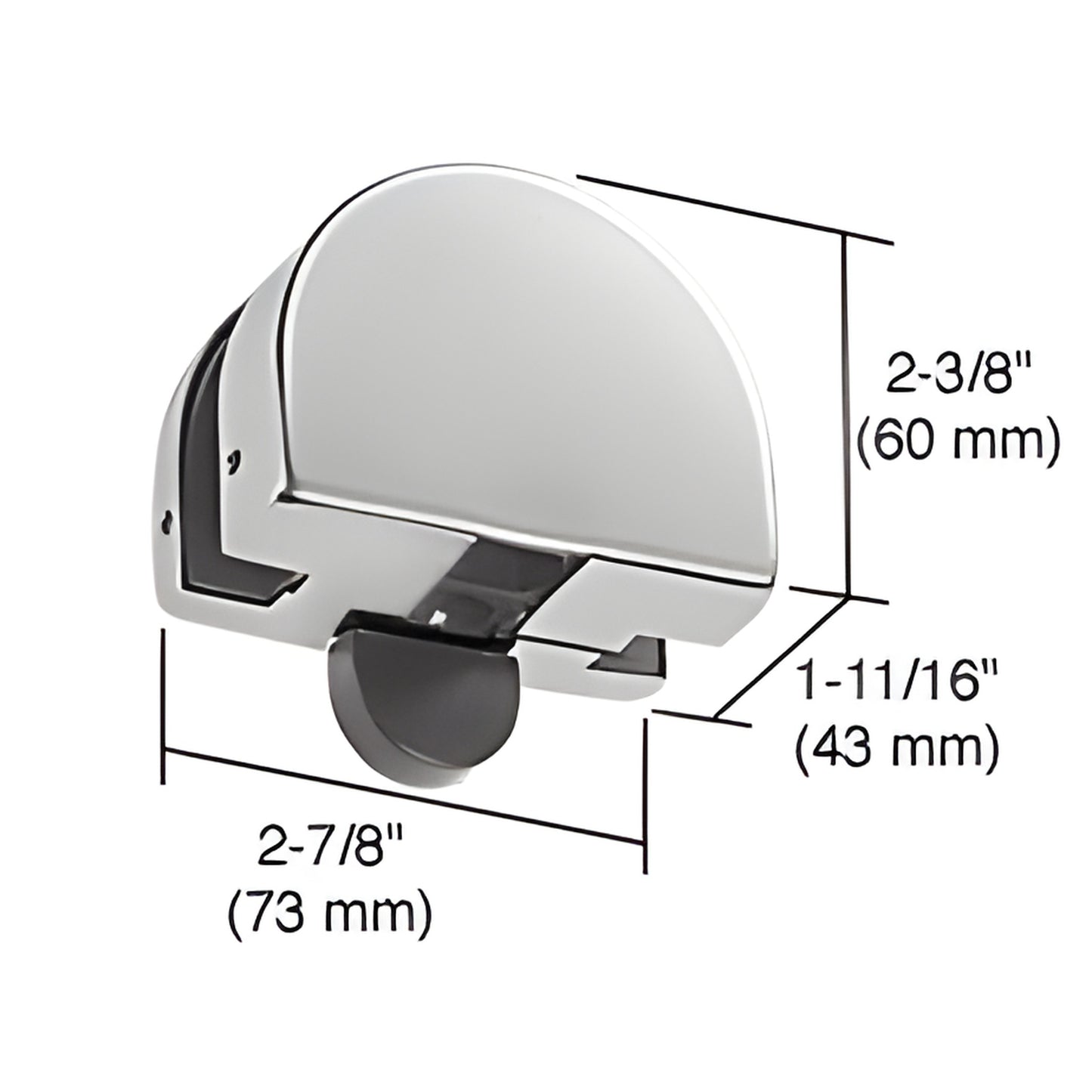

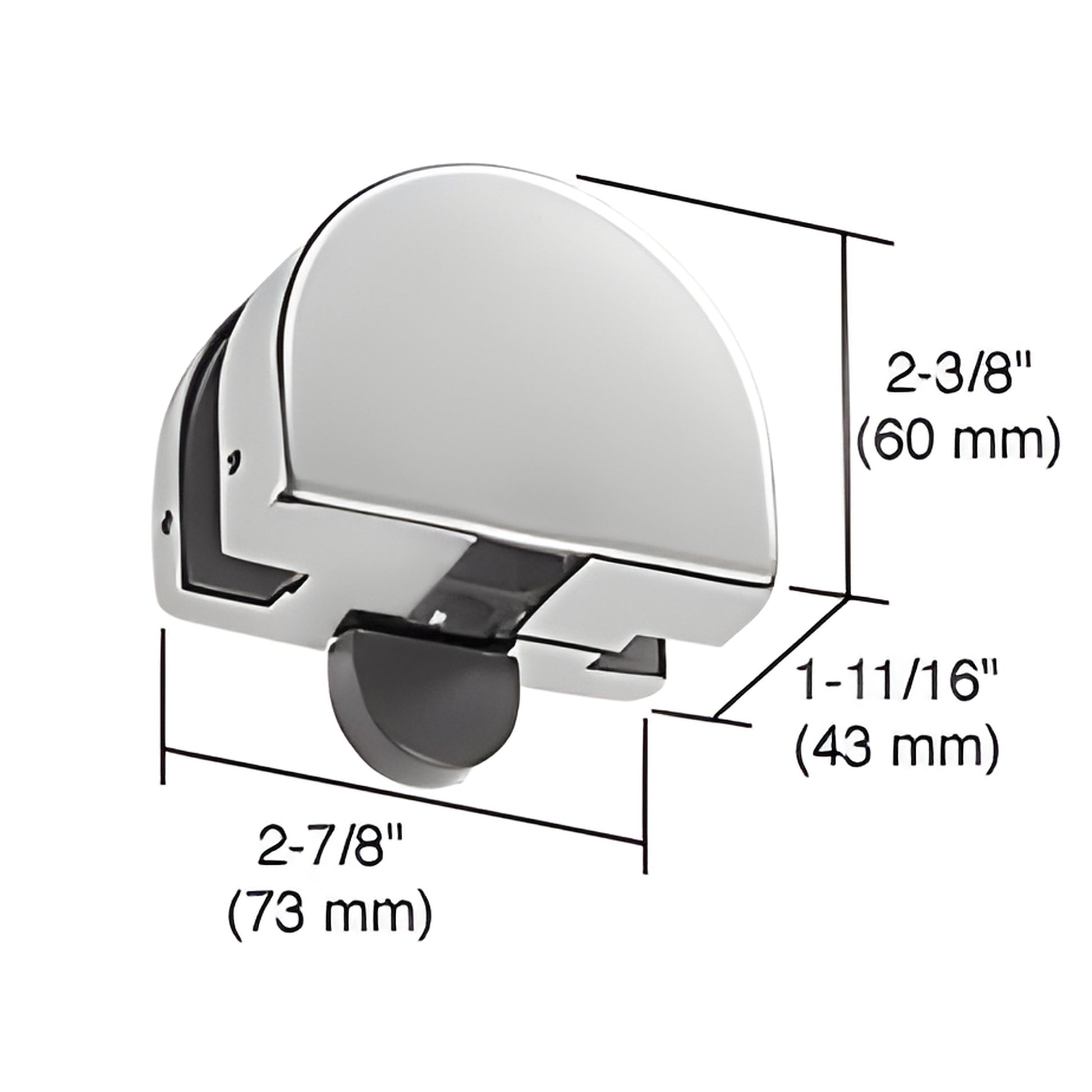

Height
2-3/8 in. (60 mm)
Series
PTH
Type
Top
Width
2-7/8 in. (73 mm)
- For use with 3/8" or 1/2" (10 or 12 mm) thick glass — fits standard tempered glass doors
- Molded body with finished cover plates for clean, concealed appearance
CRL PTH Series Top Transom Door Stop Patch Fitting (SKU: PTH23SBS) includes molded body, stop insert, finished cover plate, and gaskets for 3/8" and 1/2" (10 or 12 mm) glass. Designed for installation on the strike side of a transom to reliably stop a commercial or residential glass door. Ideal for frameless and patch-style glass door hardware applications.
GLASS FABRICATION REQUIRED:
One notch (template included)
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before placing an order, contact CRL Customer Service. Product images represent the actual item or a close representation; colors may vary by monitor settings.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
Need this specific top transom door stop patch fitting for 3/8" or 1/2" glass? Contact CRL Customer Service or order PTH23SBS today.
