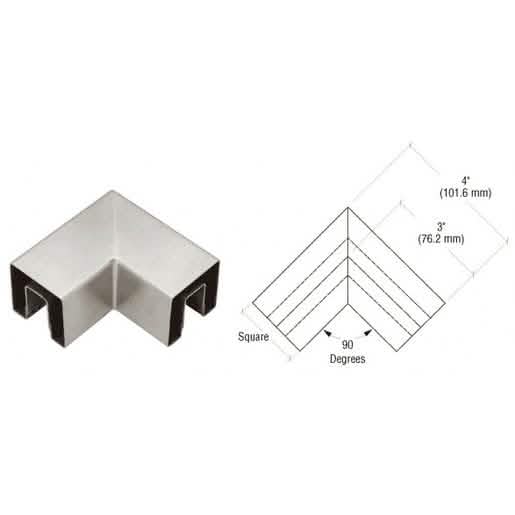

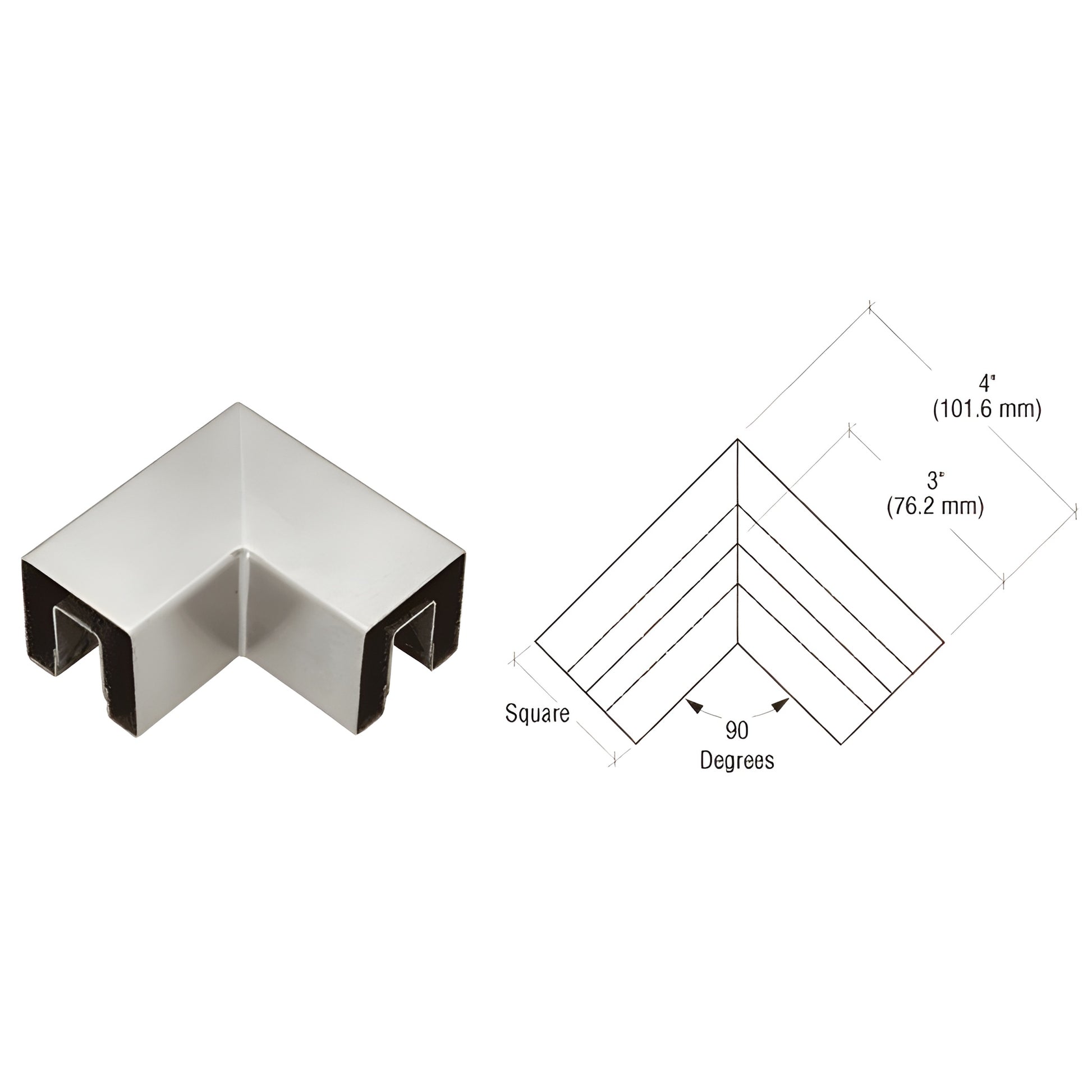

CRL Brushed Stainless 2" 90° Corner Fitting for 1/2" Sq Glass Cap Rail

• New square profile
• Welded and finished, ready-to-install
• Fits 1/2" (12 mm) to 5/8" (16 mm) glass
• Two finishes available
• Requires two connector sleeves (not included)

CRL Interior Slip-Fit Horizontal Corners provide precision hairline joint assemblies when paired with straight lengths of CRL Square Cap Rail. Designed for 1/2" (12 mm) to 5/8" (16 mm) glass, these horizontal corners are ideal for interior glass railing and glass partition applications where a clean, continuous cap rail look is required. Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required for each corner (sold separately). SKU: GRS20HBS.

Each horizontal corner is individually fabricated, welded, finished, and packed. Standard stainless alloy is 304; 316 stainless is available by special order. All stainless corners are made from CRL Premium Cap Rail and finished to match—offering durable decorative trim for interior glass railings and balustrades. Contact CRL Technical Sales for pricing or lead times.

Installation Notes: Except for the GRS15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl plus 95CBL Silicone to secure the glass. For GRS15 Series with 5/8" (16 mm) glass, use 95CBL Silicone and shims only.

Stainless Steel Advisory:

Order GRS20HBS or contact us for a quote and lead time.
