CRL Brushed Stainless 1.5" Square Corner Rail Cap for 1/2" Glass
CRL Brushed Stainless 1.5" Square Corner Rail Cap for 1/2" Glass
Regular price
$1,096.71 CAD
Regular price
Sale price
$1,096.71 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRSC15BS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Length
120 in. (3048 mm)
Material
Stainless Steel
Thickness
.078 in. (2 mm)
Overview
- Crisp Corner Design
- Use Sleeve No. GRS15CSS
- 120" (3.05 m) stock lengths available in two sizes and two architectural finishes

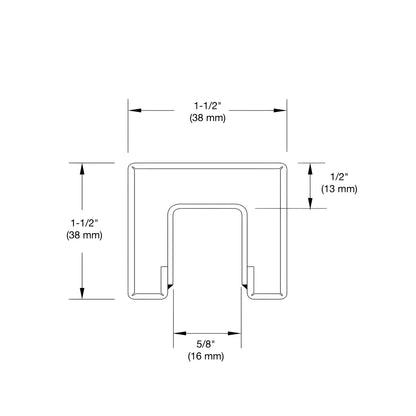

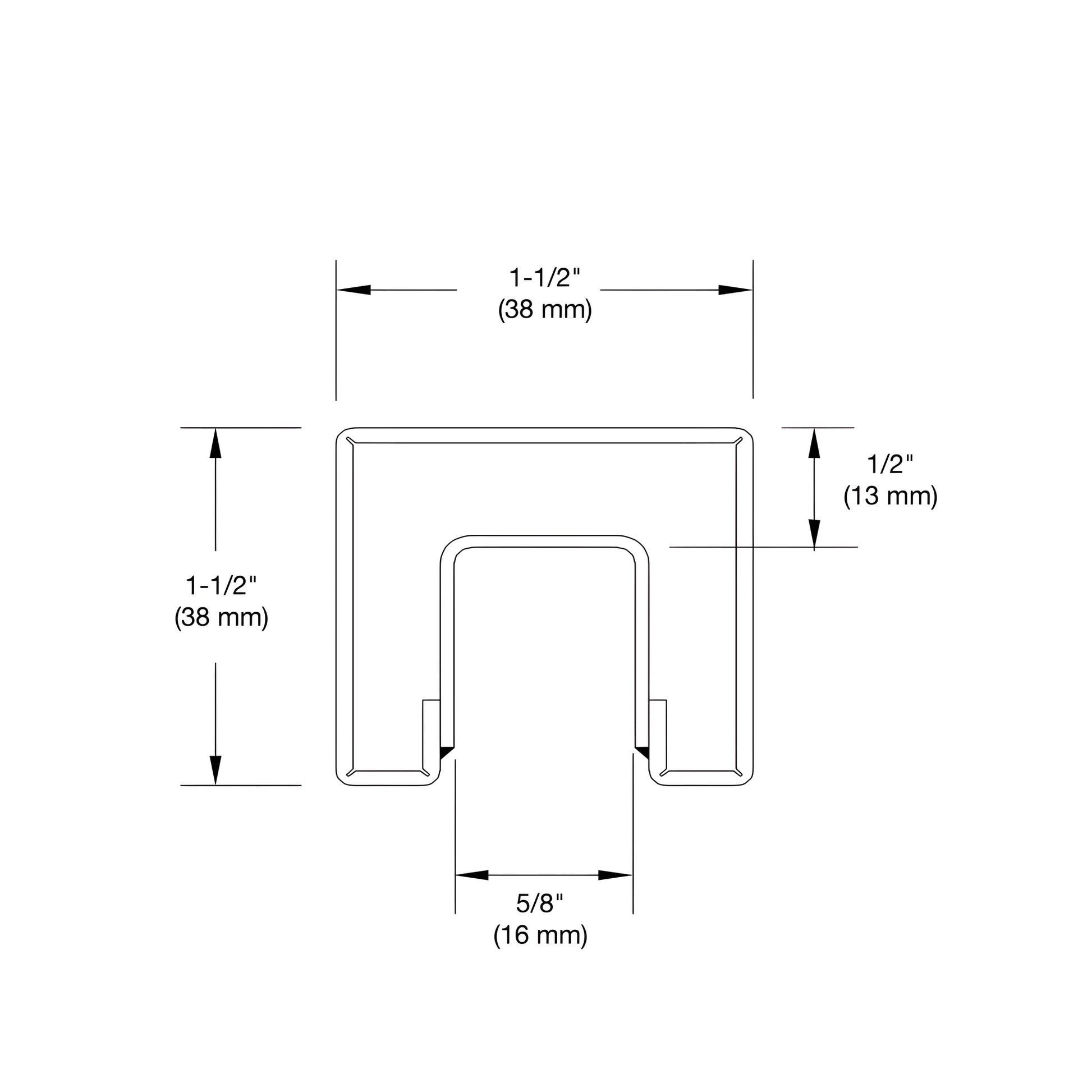

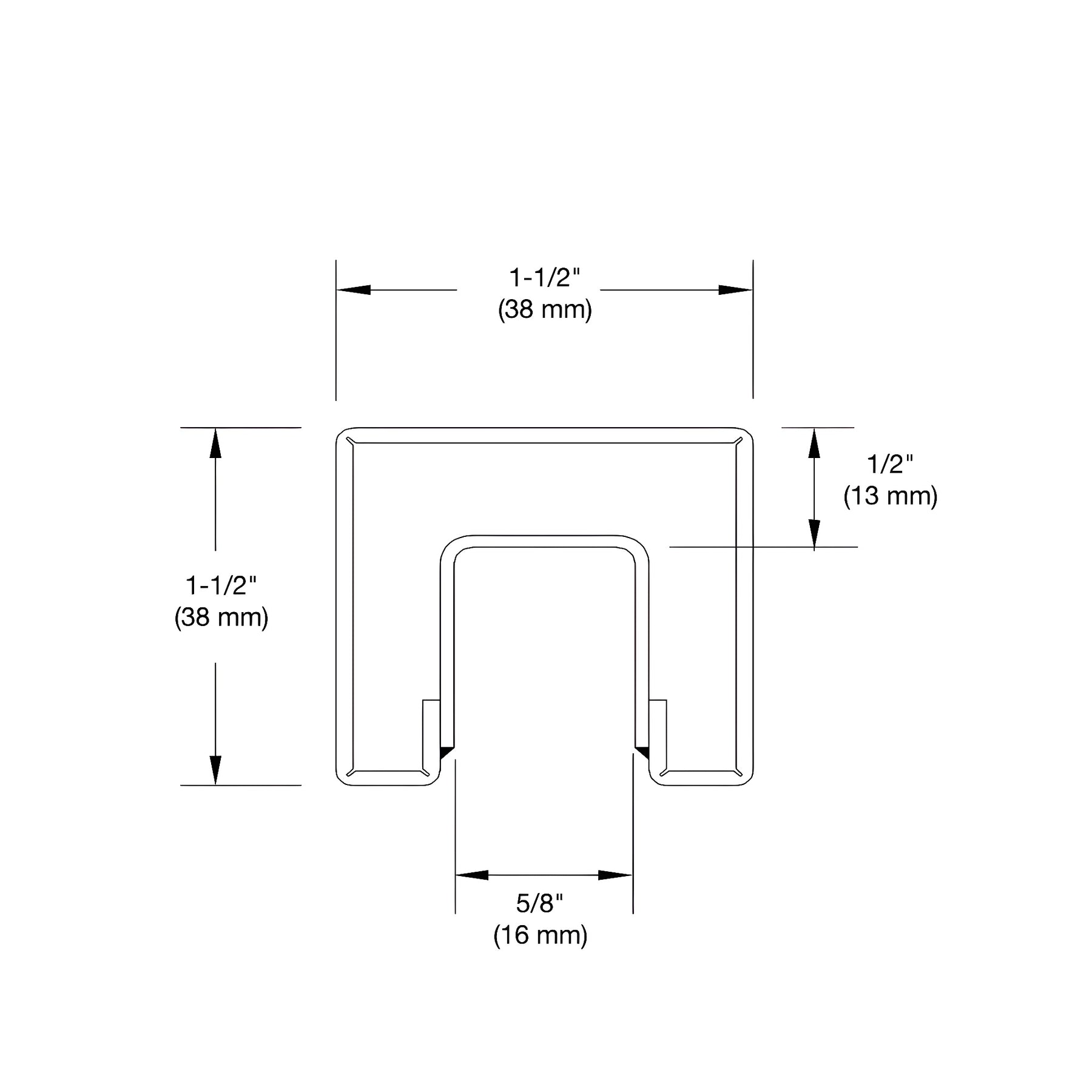

- Profiles range from 1-1/2" (38 mm) to 2-1/2" (64 mm)
- 304 stainless alloy is standard; 316 alloy available on special order

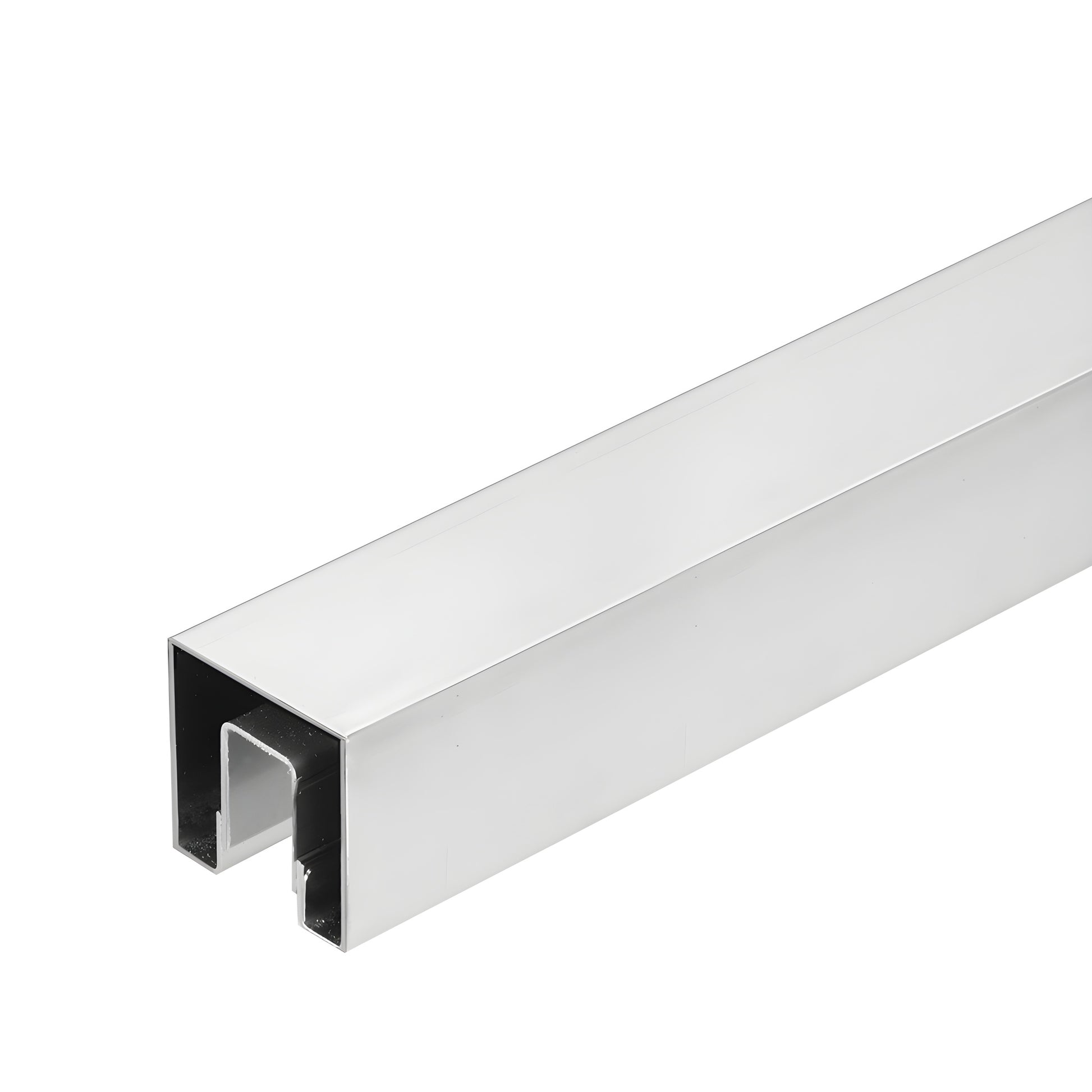

CRL Crisp Corner Square Cap Rails are formed using precision tooling to maintain uniform profiles for smooth hairline transitions at splices, corners, and end caps. An internal channel is welded in place to increase strength and stability for fabrication. Use Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond at all connections. These square cap rails are ideal as a stainless steel handrail or square cap rail for 1/2" (12 mm) glass balustrades and glass railing systems when a clean, architectural finish is required.
NOTE: 1-1/2" (38 mm) Square Premium Cap Rail works only with 1/2" (12 mm) glass, secured with 95CBL silicone and shims.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. For details see the Stainless Steel Disclaimer in the Technical References section below.
SKU: GRSC15BS
Order GRSC15BS today or contact CRL Customer Service for lead times, exact weights, or to request 316 stainless on special order.
