CRL Brushed Stainless Steel Custom P2 Series 180° Center-Post Railing Kit
CRL Brushed Stainless Steel Custom P2 Series 180° Center-Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P242CBSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
304
Angle
180
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Brushed Stainless Steel
Glass Included
No
Glazing Thickness
1/2 in. To 1 in. (12 mm To 25 mm)
Height
42 in. (1067 mm)
Material
Stainless Steel
Overview

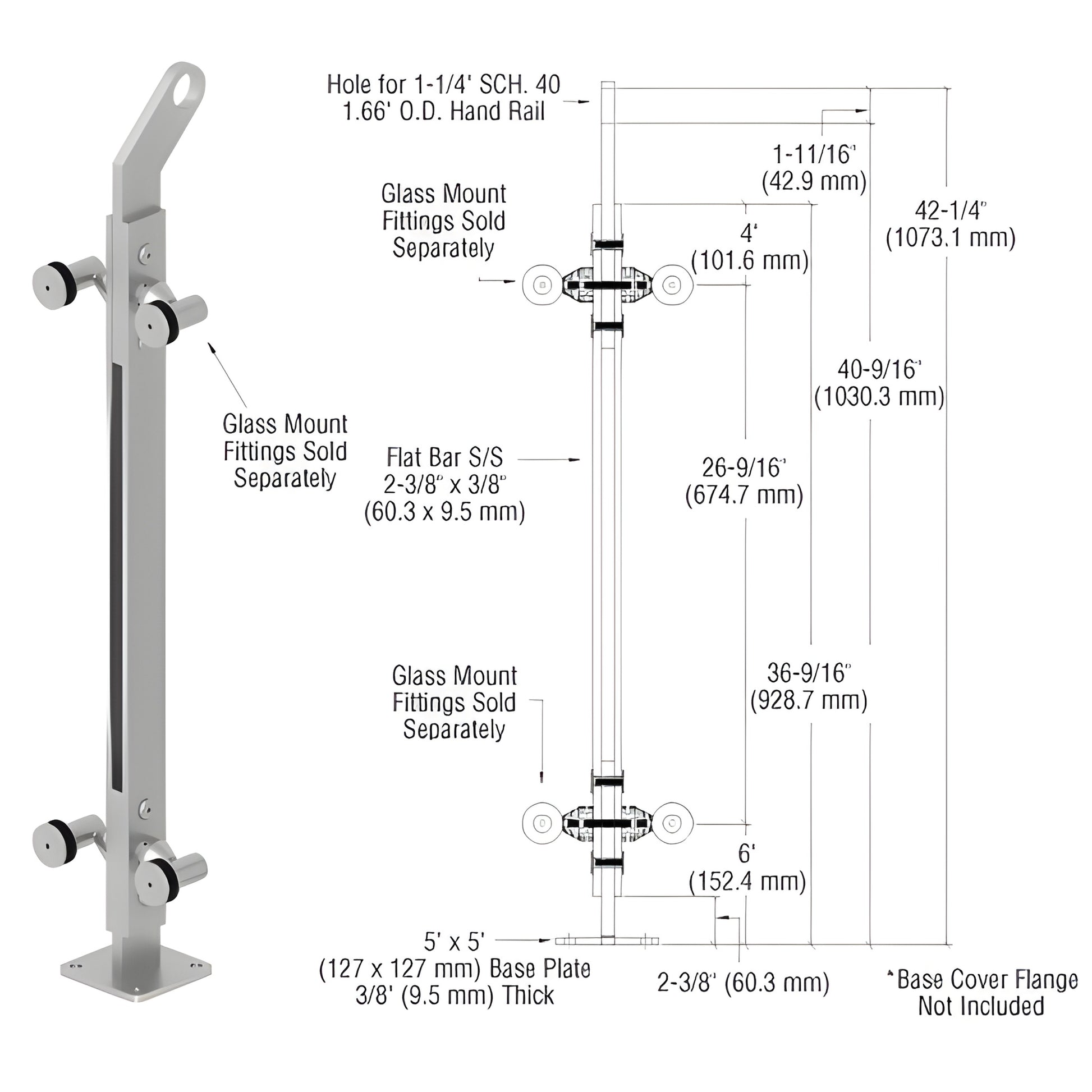

- For use with 1/2" (12 mm) to 1" (25 mm) thick panels (glass or infill)
- Glass attachment fittings sold separately — purchase mounting hardware to complete installation
- Meets or exceeds guardrail and handrail code standards for commercial and residential applications
- Designed to support 1-1/4" (32 mm) Schedule 40 horizontal tubing (1.66" outside diameter)
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder-coat paint finishes available for project matching
CRL P2 Post Railing Kits (SKU: P242CBSC) are surface-mounted stainless steel post kits engineered for glass-panel and horizontal-tubing railing systems. Manufactured from stainless steel flat bar and supplied with base plates prepped for standard glass mount fittings, these kits are optimized for code-compliant commercial and residential guardrail installations. They are ideal long-tail search needs such as "stainless steel P2 surface mounted post railing kit for glass panels" and "code compliant handrail post for 1-1/4 inch tubing."
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass mount fittings and anchoring hardware must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for care and maintenance details.
Ready to specify? Contact CRL or your local distributor to order SKU P242CBSC or request custom heights and finishes.
