Product Details
- Standard Inset Frame Vision Window Typically Used Above Built-In Exchange Drawers in Walk-Up Installations
- Drawings and Specifications are Available

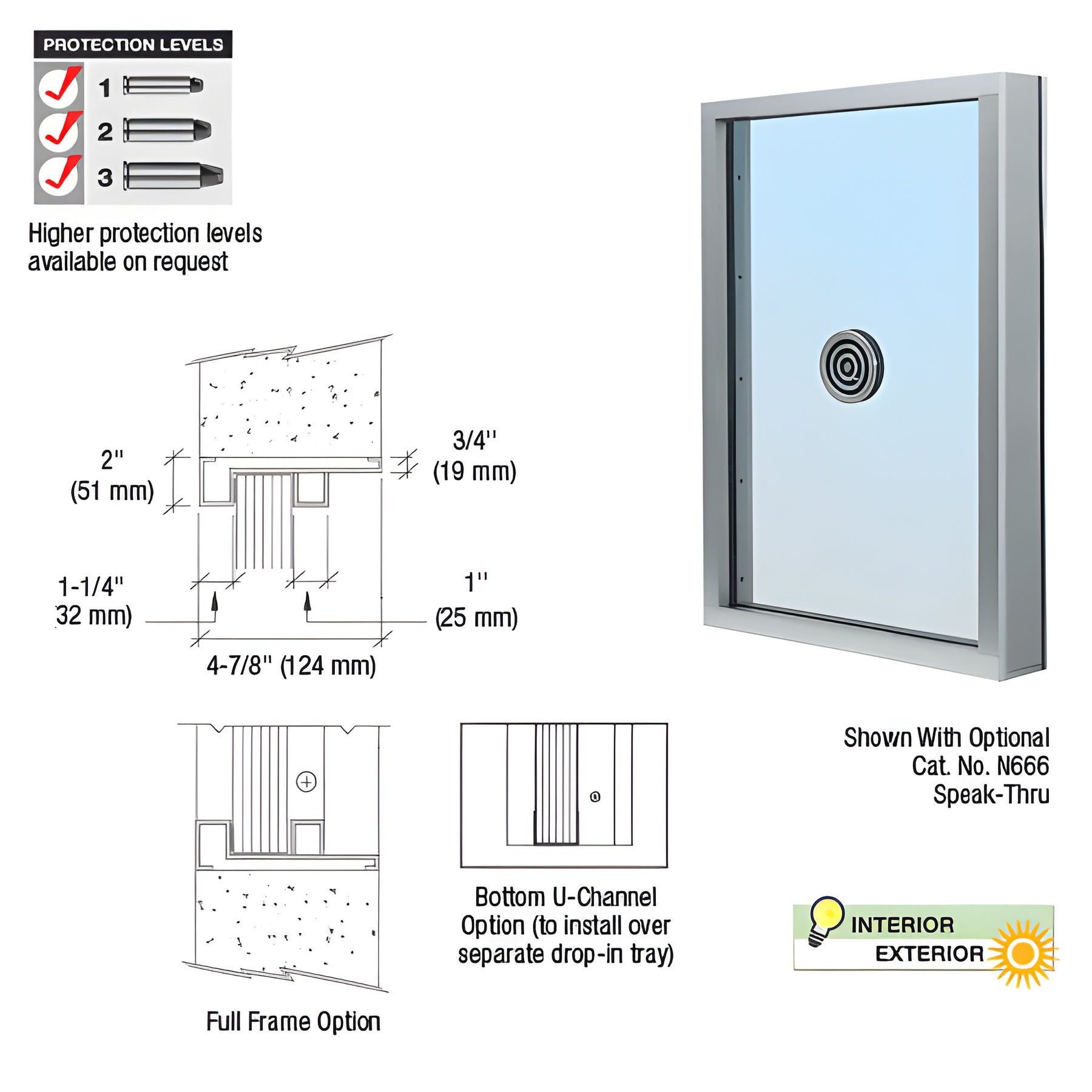

CRL Standard Inset Frame Vision Windows are designed for installation in wall openings having a thickness of at least 4-7/8" (124 mm). The frame has a uniform design on all four sides, and the selected glazing material will be sealed into the frame for a weather tight installation. Vision Windows are commonly used as sidelites in Multi-Lite Exchange Window units. Also for installation above built-in Transaction Drawers or Package Receivers. Installer affixes frame to wall opening then permanently seals glazing material into frame with included glazing tape. Can be ordered with U-Channel only under the glazing to enable easy access to Drop-In Deal Trays.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-3/16" (30 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass;
1-3/8" (35 mm) Level 2 Acrylic with Abrasion Resistant Coating; 1" (25 mm) Level 2 Lexgard®; 1-11/16" (43 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - 11 Gauge Brushed Stainless Steel #4 Finish
Instructions Included
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
