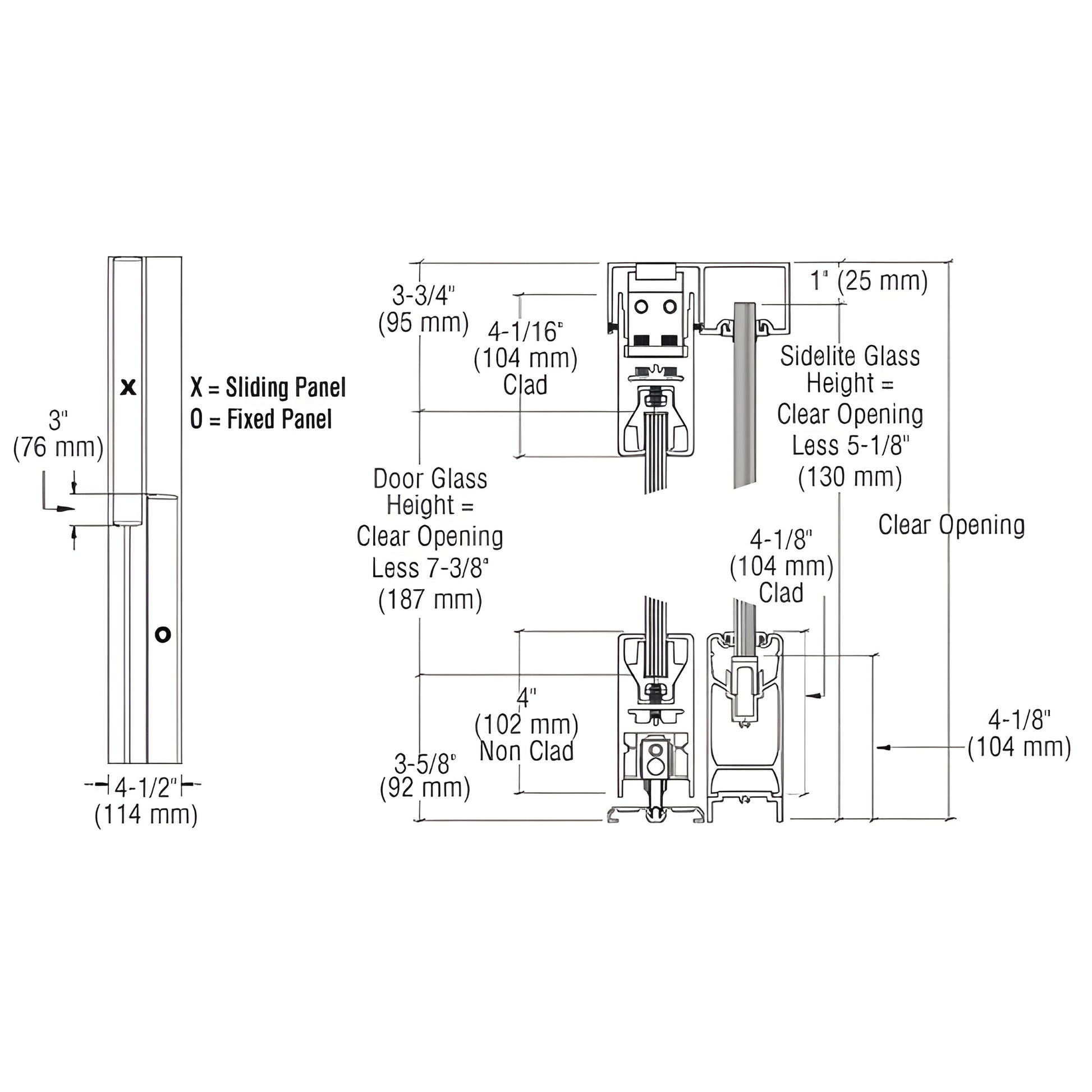

• Schematic of CRL SSR bottom-rolling sliding door system SKU 4SSR2CBS, 4" brushed stainless rails and dimensions
1 1

CRL

CRL Brushed Stainless Steel 4" Square Sliding Glass Door OX/XO

CRL Brushed Stainless Steel 4" Square Sliding Glass Door OX/XO

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SSR2CBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
XO or OX
Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
2

Overview

  • With 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
  • Available in Seven Architectural Finishes

The CRL SSR Bottom Rolling Sliding Door System (SKU: 4SSR2CBS) features 4" (102 mm) square rails and the Wedge-Lock® Glass Securing System used in DR4S Series door rails on all sliding panels. Bottom rails are available with or without locks for added security and customization.

The fixed sidelites use SR4S Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications for precise fit and finish.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before you complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not stain- or rust-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for maintenance guidance.

Choose the CRL SSR 4" bottom rolling sliding door system for durable, customizable bottom-rolling doors with Wedge-Lock® glass retention and seven architectural finish options. Contact CRL Customer Service to request exact weights, place a custom order, or get a quote.
