CRL OXO SSR 4in Brushed Stainless Steel Square Sliding Door Hardware
CRL OXO SSR 4in Brushed Stainless Steel Square Sliding Door Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SSR3EBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXO
Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3
Overview
- With 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes
The CRL SSR Bottom Rolling Sliding Door System (SKU: 4SSR3EBS) features 4" (102 mm) square rails and the Wedge-Lock® Glass Securing System used in the DR4S Series door rails on all sliding panels—an ideal choice for a heavy-duty bottom rolling sliding door with secure glass retention and clean architectural lines.
The fixed panels use SR4S Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m) and maximum door height is 108" (2.74 m); maximum panel weight is 234 lb (106 kg). All panels are custom fabricated to your specifications, making this bottom-rolling sliding door solution suitable for commercial storefronts and residential openings requiring durable, custom-configured sliding glass doors.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Differentiators: Wedge-Lock® glass securing system for enhanced glass retention, available with or without rail-integrated locks, seven architectural finishes, and fully custom-fabricated panels for precise fit and commercial-grade durability.
Order or request a quote for SKU 4SSR3EBS today.
Specifications

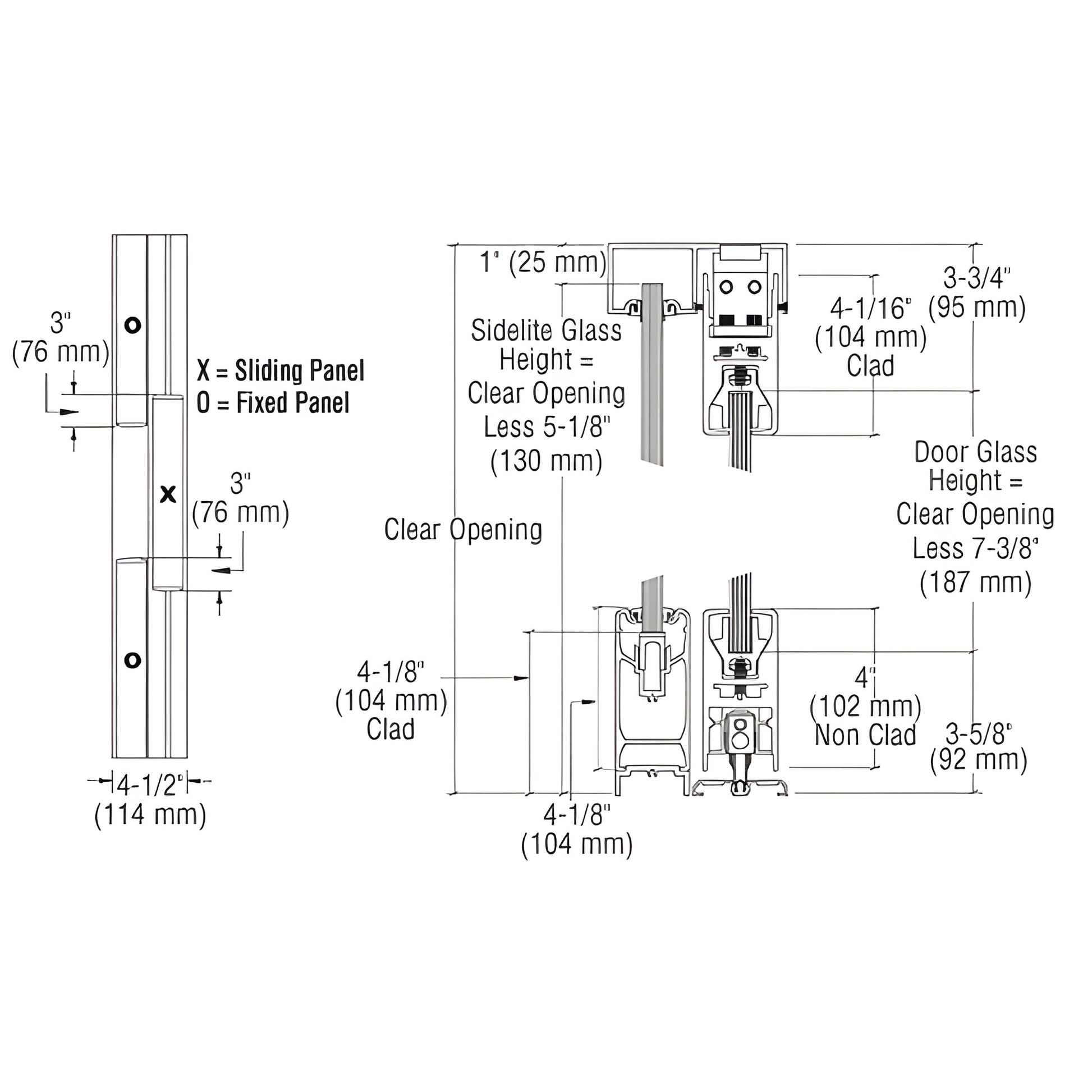

CAD Drawings - pdf
