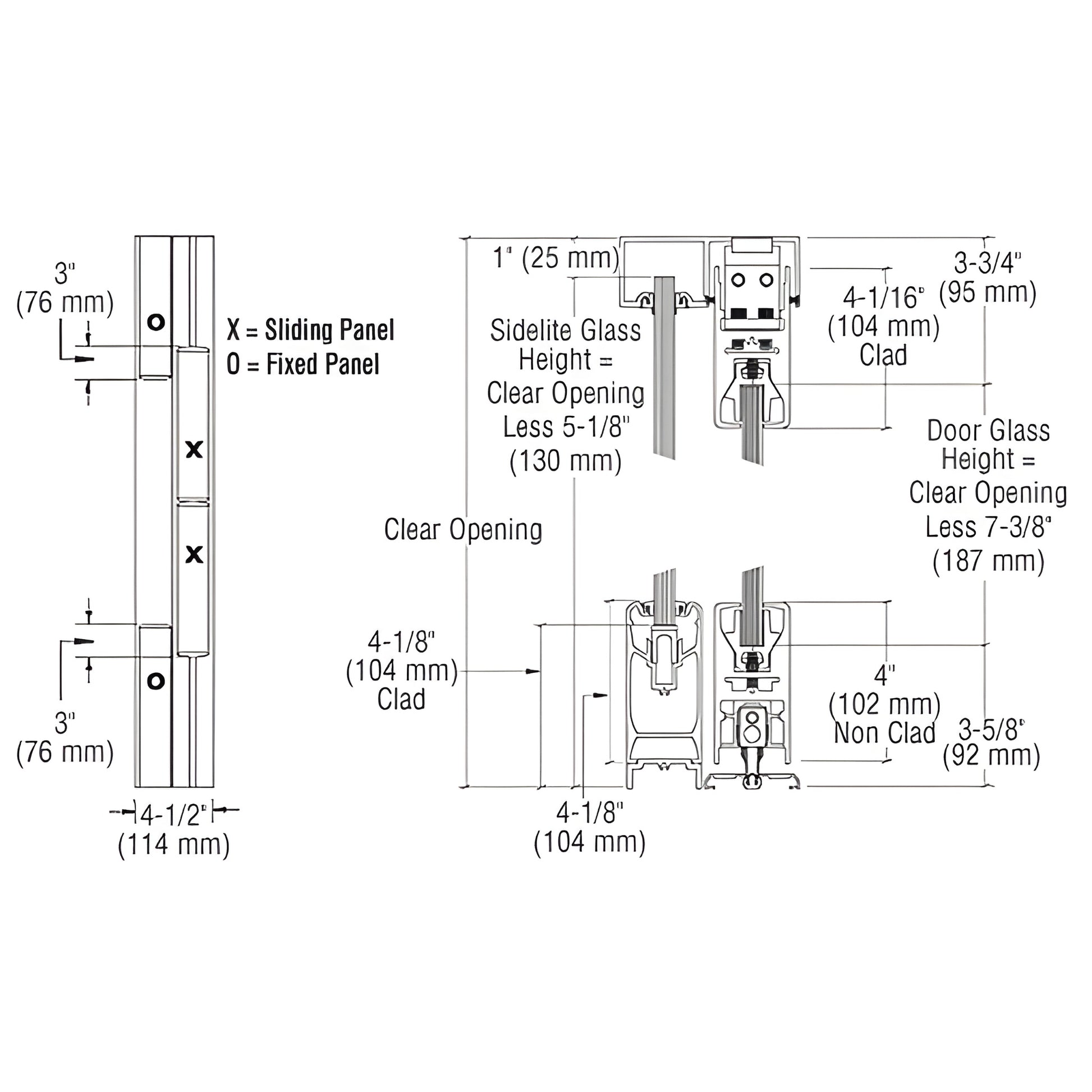

• CRL SSR bottom-rolling sliding door system (SKU 4SSR4FBS) technical line drawing showing 4" rails, sidelite rails and dimensi
1 1

CRL

CRL OXXO SSR 4in Brushed Stainless Steel Square Sliding Door Hardware

CRL OXXO SSR 4in Brushed Stainless Steel Square Sliding Door Hardware

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SSR4FBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4

Overview

  • With 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
  • Available in Seven Architectural Finishes

The CRL SSR Bottom Rolling Sliding Door System (SKU: 4SSR4FBS) features 4" (102 mm) square rails and the proven Wedge-Lock® Glass Securing System used in DR4S Series door rails on all sliding panels. Bottom rails are available with or without locks.

The fixed panels use SR4S Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m) and maximum door height is 108" (2.74 m); maximum panel weight 234 lbs. (106 kg). All panels are custom fabricated to your specifications.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor settings.

Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

Highlights: bottom rolling sliding door system, 4" square rails, Wedge-Lock® glass securing, seven architectural finishes, custom-fabricated panels. Contact CRL to request a quote or technical assistance.
