CRL SSR Brushed Stainless Steel Bottom Rolling Sliding Door OXXO

CRL SSR Brushed Stainless Steel Bottom Rolling Sliding Door OXXO

$0.00 CAD
$0.00 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SSR4FBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Material
Aluminum
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Minimum Door Width
234 in. (5944 mm)

Overview

  • With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
  • Available in Seven Architectural Finishes

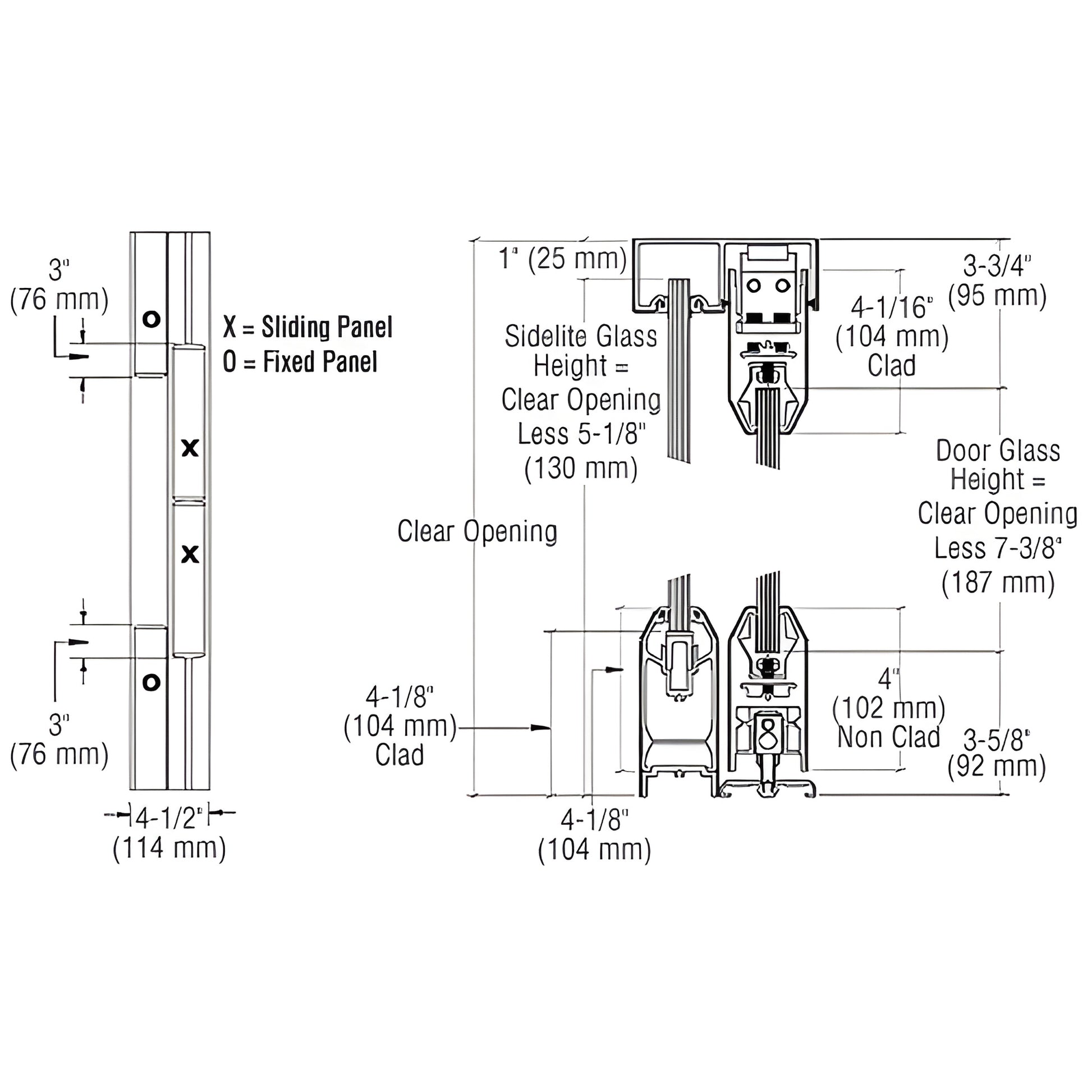

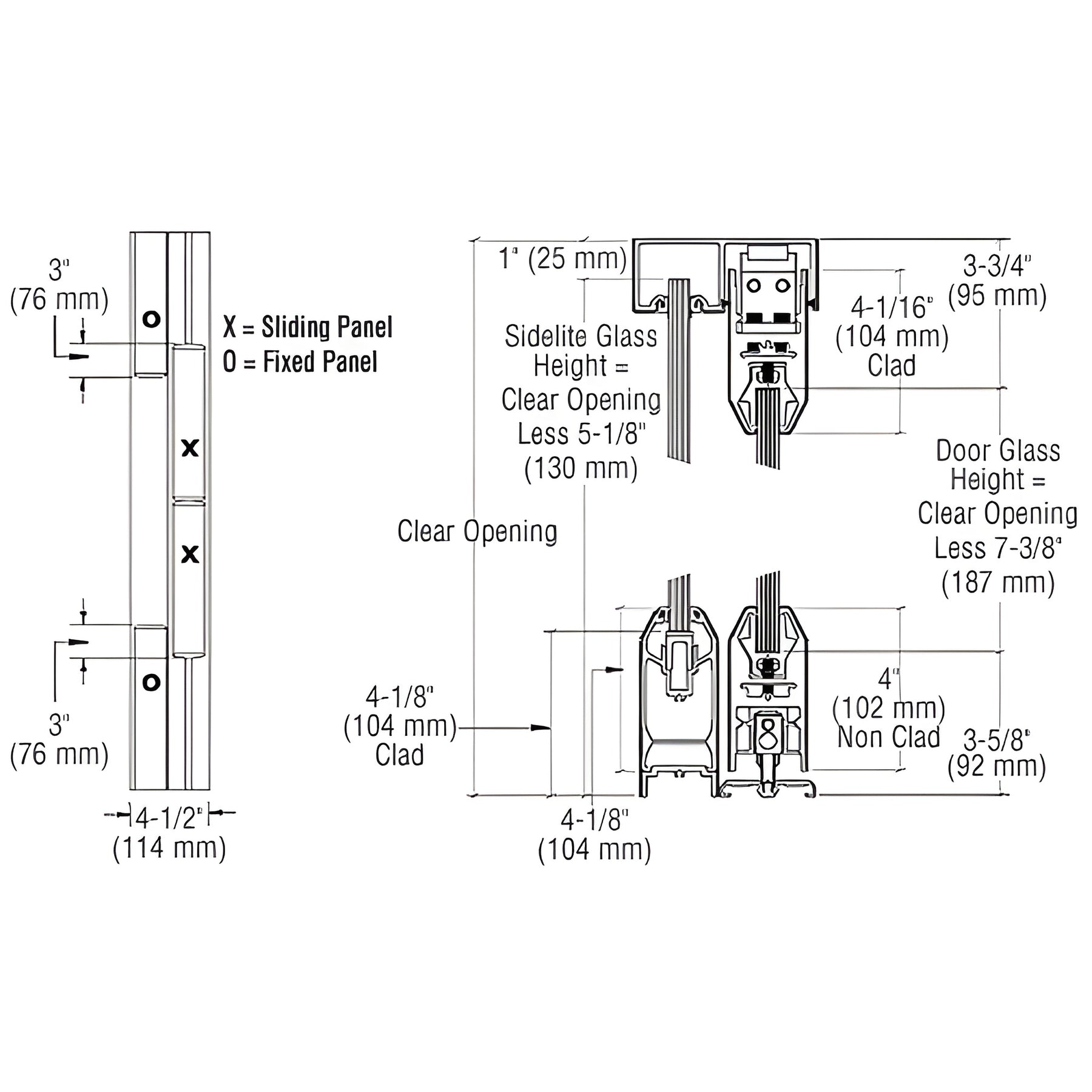

The CRL SSR Bottom Rolling Sliding Door System (SKU: SSR4FBS) features 4" (102 mm) tapered rails and the Wedge-Lock® Glass Securing System used on the DR4T Series door rails for secure, tool-free glass retention. Bottom rails for sliding panels are available with or without locks to suit commercial and residential security needs.


Fixed sidelites use SR4T Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track for smooth operation and weather resistance. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications and finished in one of seven architectural finishes for consistent aesthetics and durability.
