CRL Brushed Stainless SSR Bottom-Rolling Sliding Glass Door Hardware
CRL Brushed Stainless SSR Bottom-Rolling Sliding Glass Door Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SSR2CBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XO/OX
Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Material
Aluminum
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Minimum Door Width
234 in. (5944 mm)
Overview
- With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes
The CRL SSR Bottom Rolling Sliding Door System (SKU: SSR2CBS) features 4" (102 mm) tapered rails and the proven Wedge-Lock® Glass Securing System used in DR4T Series door rails on all sliding panels. Bottom rails can be specified with or without locks for secure, low-profile operation.
Fixed sidelites use SR4T Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m) and maximum door height is 108" (2.74 m); maximum panel weight is 234 lb (106 kg). All panels are custom fabricated to your specifications for precise fit in commercial and residential bottom rolling sliding door installations.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not stain- or rust-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.
Highlight: 4" tapered rails, Wedge-Lock® glass securing, seven architectural finishes, custom-fabricated bottom rolling sliding door panels—ideal for commercial storefronts and high-end residential installations.
Ready to specify? Contact CRL or your local distributor to request a quote or submittal for SSR2CBS.
Specifications

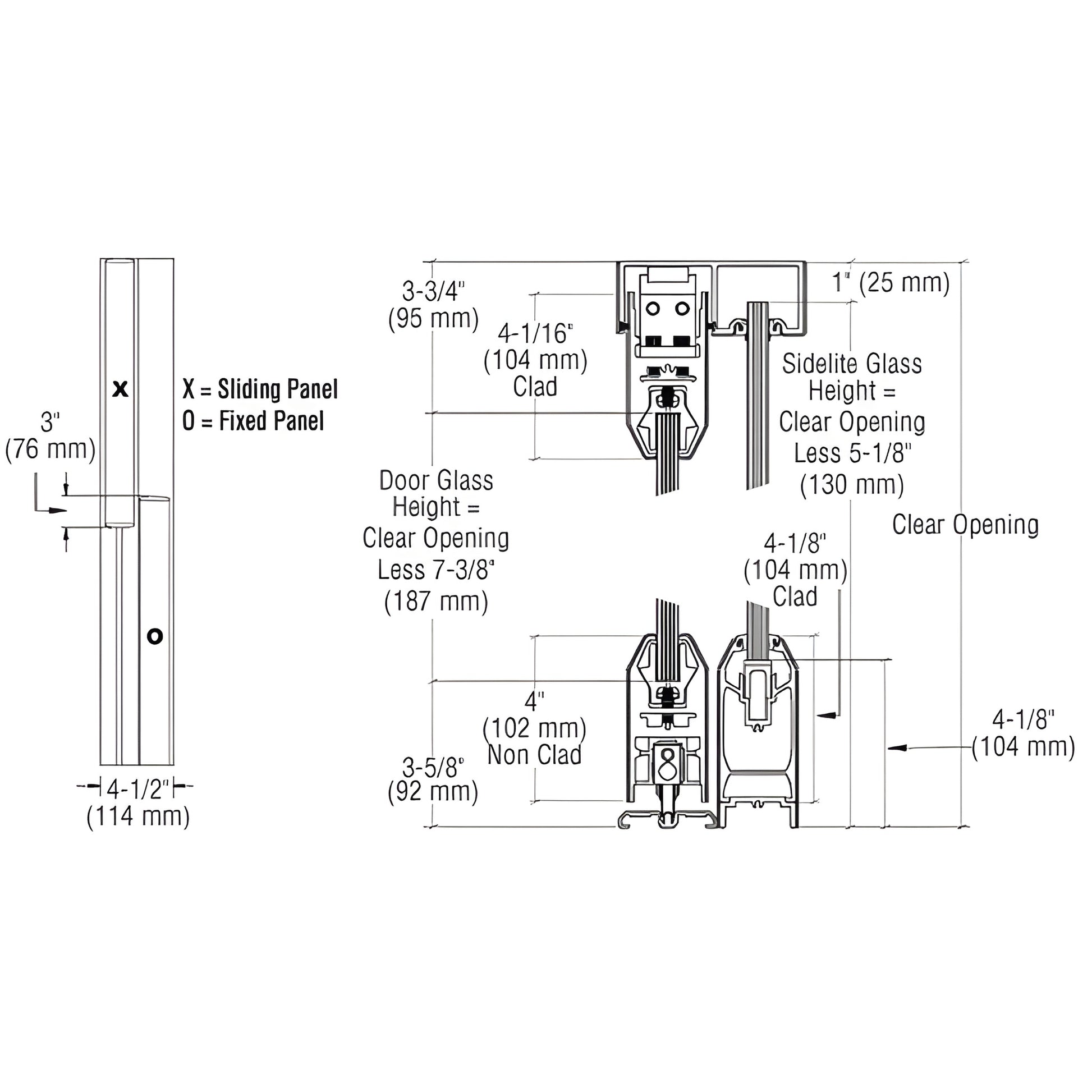

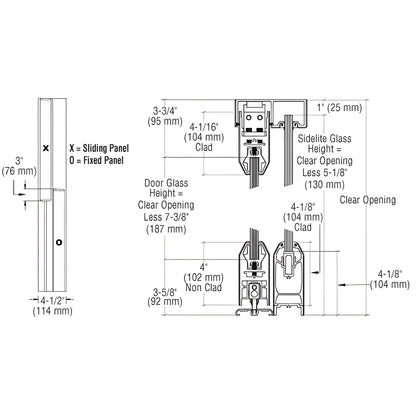

CAD Drawings - pdf
