CRL XOX SSR Brushed Stainless Steel 4 in Square Sliding Door Hardware
CRL XOX SSR Brushed Stainless Steel 4 in Square Sliding Door Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SSR3DBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XOX
Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3
Overview
- 4" Square DR4S Series Door Rails and 4" Square SR4S Series Sidelite Bottom Rails
- Available in seven architectural finishes

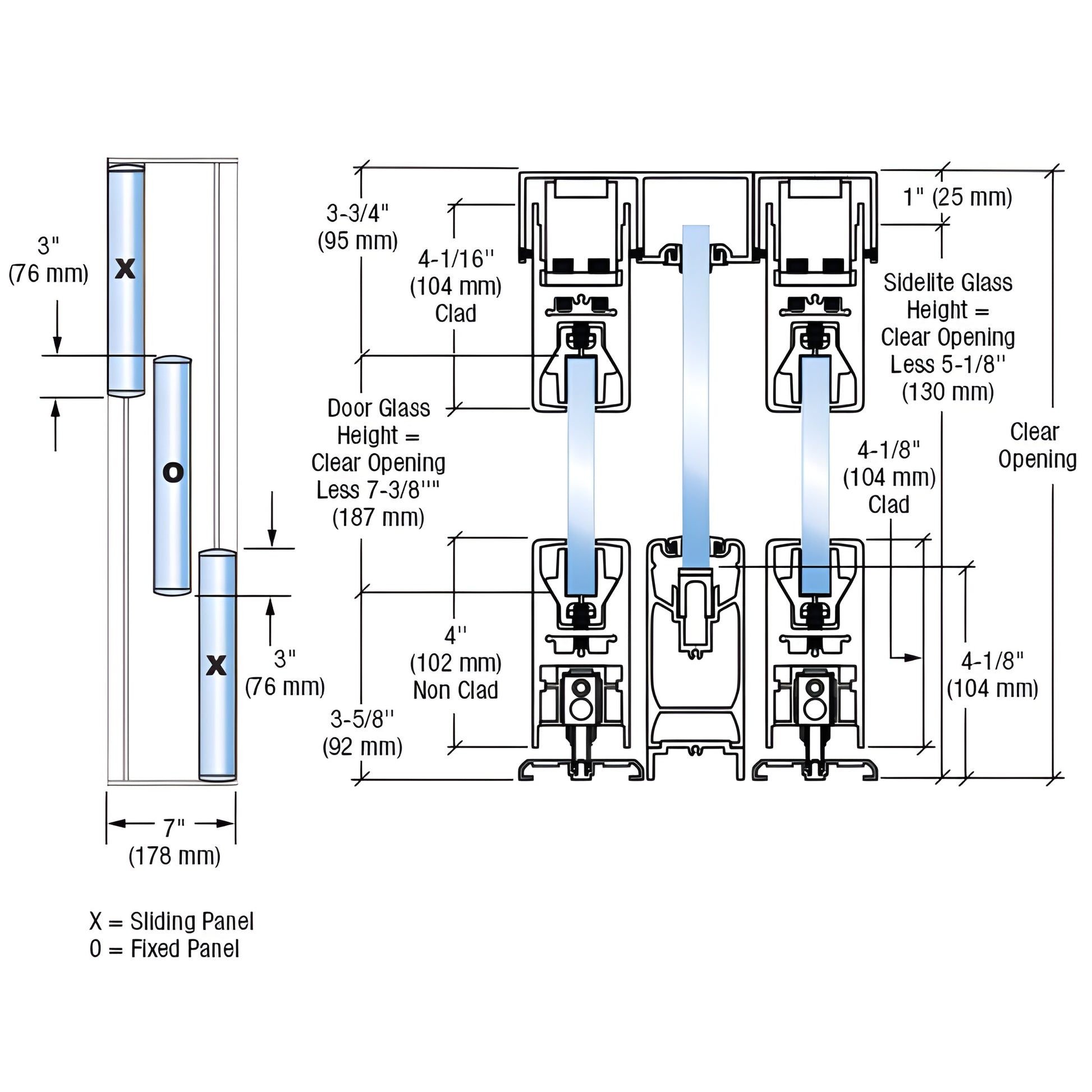

The CRL SSR Bottom Rolling Sliding Door System is a heavy-duty bottom rolling sliding door solution with 4" (102 mm) square rails that use the Wedge-Lock® Glass Securing System—providing secure, tool-free glass retention found on DR4S Series door rails. Bottom rails for sliding panels are available with or without locks.
The fixed sidelites use SR4S Series rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications for precise fit and performance.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care guidelines.
SKU: 4SSR3DBS — For pricing, finish options, or to request a custom quote for this bottom rolling sliding door system, contact CRL Customer Service today.
Specifications
CAD Drawings - pdf
