Most shipping weights are approximate and have not been verified. If exact weight is required to calculate shipping costs, request this prior to order submission by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
CRL

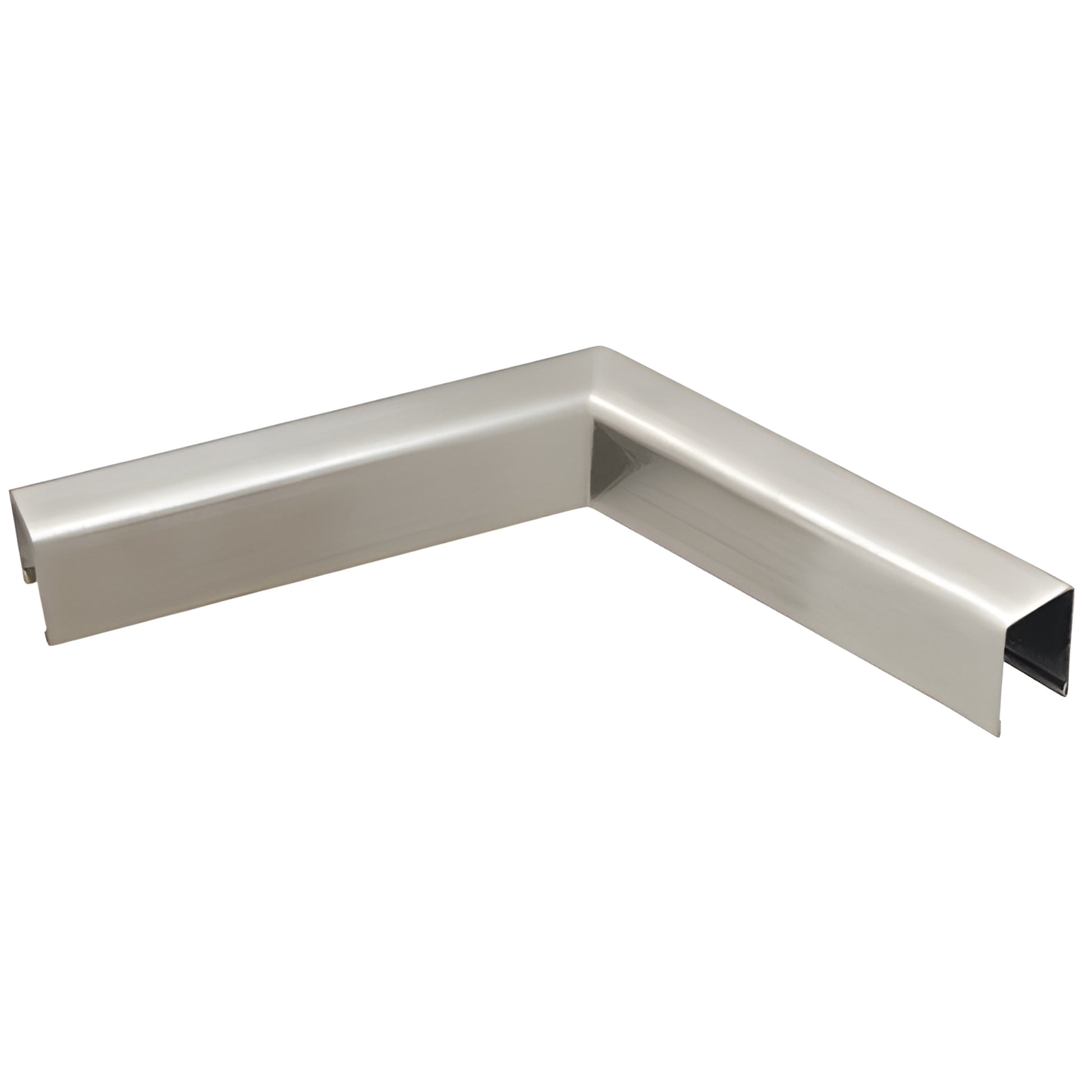

CRL Brushed Stainless U-Channel Corner for 1/2" Glass Cap Railing
CRL Brushed Stainless U-Channel Corner for 1/2" Glass Cap Railing
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRUC5HBSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
304
Cap Height
1/2 in. (13 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Material
Stainless Steel
Overview
- Welded and finished, ready-to-install
- For 1/2" (12 mm) glass — hairline joint assemblies
- Custom angle; compatible with straight lengths of CRL Cap Rail
This CRL Custom Horizontal Corner (SKU: GRUC5HBSC) is designed for hairline joint assemblies with 1/2" (12 mm) glass and pairs with straight lengths of CRL Cap Rail for seamless glass railing systems. Use of CRL 95CBL Construction Sealant is required to achieve a secure, permanent bond.
Each horizontal corner is fabricated, finished, and individually packed for protection. Standard stainless alloy is 304; stainless alloy 316 is available on special order. Contact CRL Technical Sales for lead times, pricing, or a custom quote.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for care details.
Order this ready-to-install, welded custom horizontal corner for 1/2" glass today — contact CRL for a quote or to place an order.
Specifications
Cleaning & Maintenance
