CRL Brushed Stainless UV-Bonded Glass-to-Glass Shower Door Hinge
Item# UVHG1BS
Shipping Weight: 4.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Brushed Stainless Steel
Height
1-1/2 in. (38 mm)
Material
Stainless Steel
Maximum Weight Capacity
40 lbs.(18 kg)
Overall Width
3-17/32 in. (90 mm)
Wing Width
1-49/64 in. (45 mm)
- For inset or overlay doors
- Self-centering at 90° and 180° for precise alignment

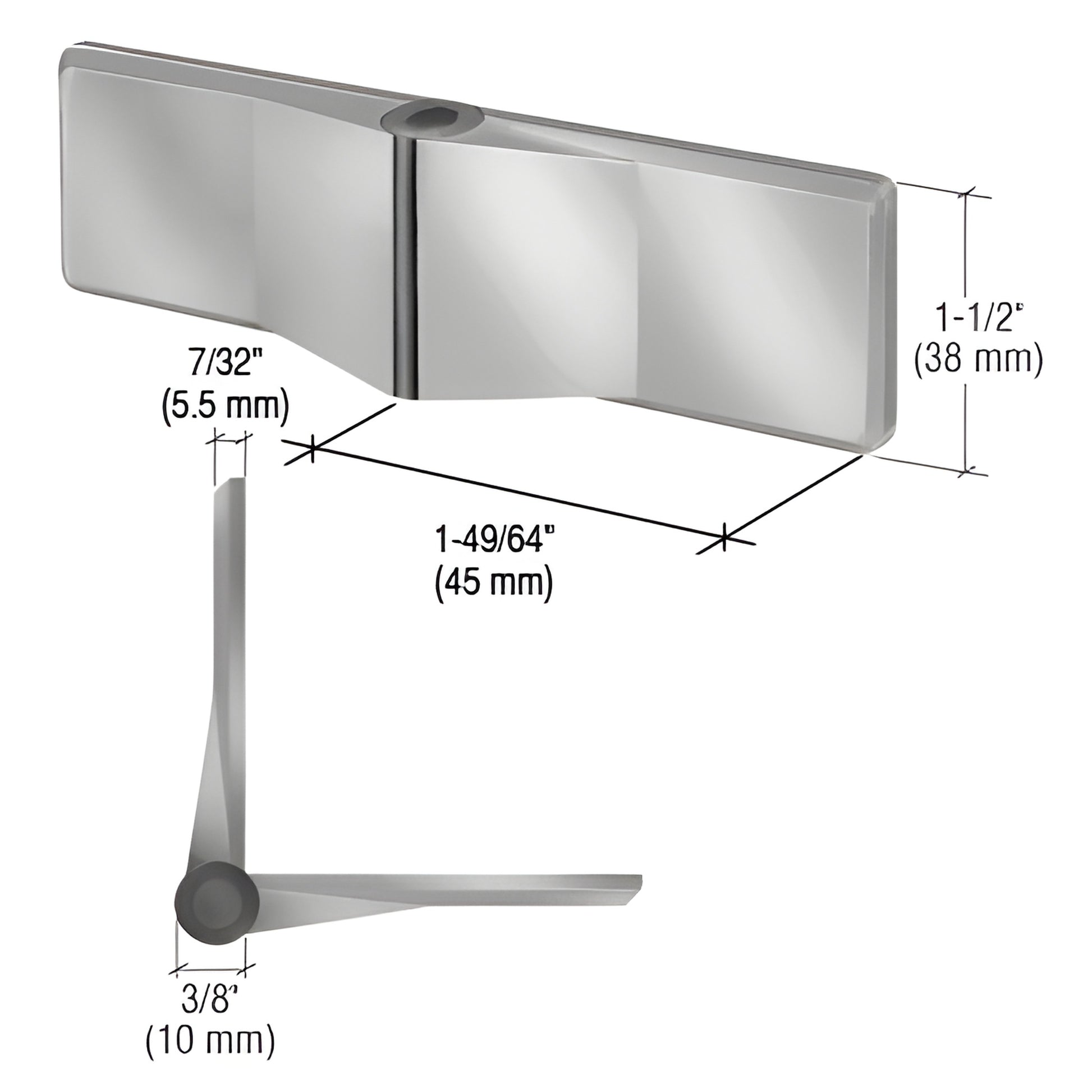

CRL UVHG1BS UV Stainless Steel Glass-to-Glass Hinges are precision hinges engineered for all-glass cabinets and frameless glass doors. Available in brushed or polished stainless steel finishes, these glass-to-glass cabinet hinges feature a 2-1/8" (54 mm) by 1-1/2" (38 mm) hinge plate and are rated for a maximum recommended door weight of 40 lbs. (18 kg) per pair. Ideal for display cases, medicine cabinets, and glass furniture where a clean, hardware-minimal look is required.
Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs before completing your order, request this prior to submitting your order by contacting CRL Customer Service. Product images show the actual product or a close representation; colors can vary depending on your monitor and video card settings.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.
SKU: UVHG1BS — Order now for dependable stainless steel glass-to-glass hinges with self-centering action.
