Product Details
- Available in Brushed and Polished Stainless Steel
- Single Inset or Overlay Lock

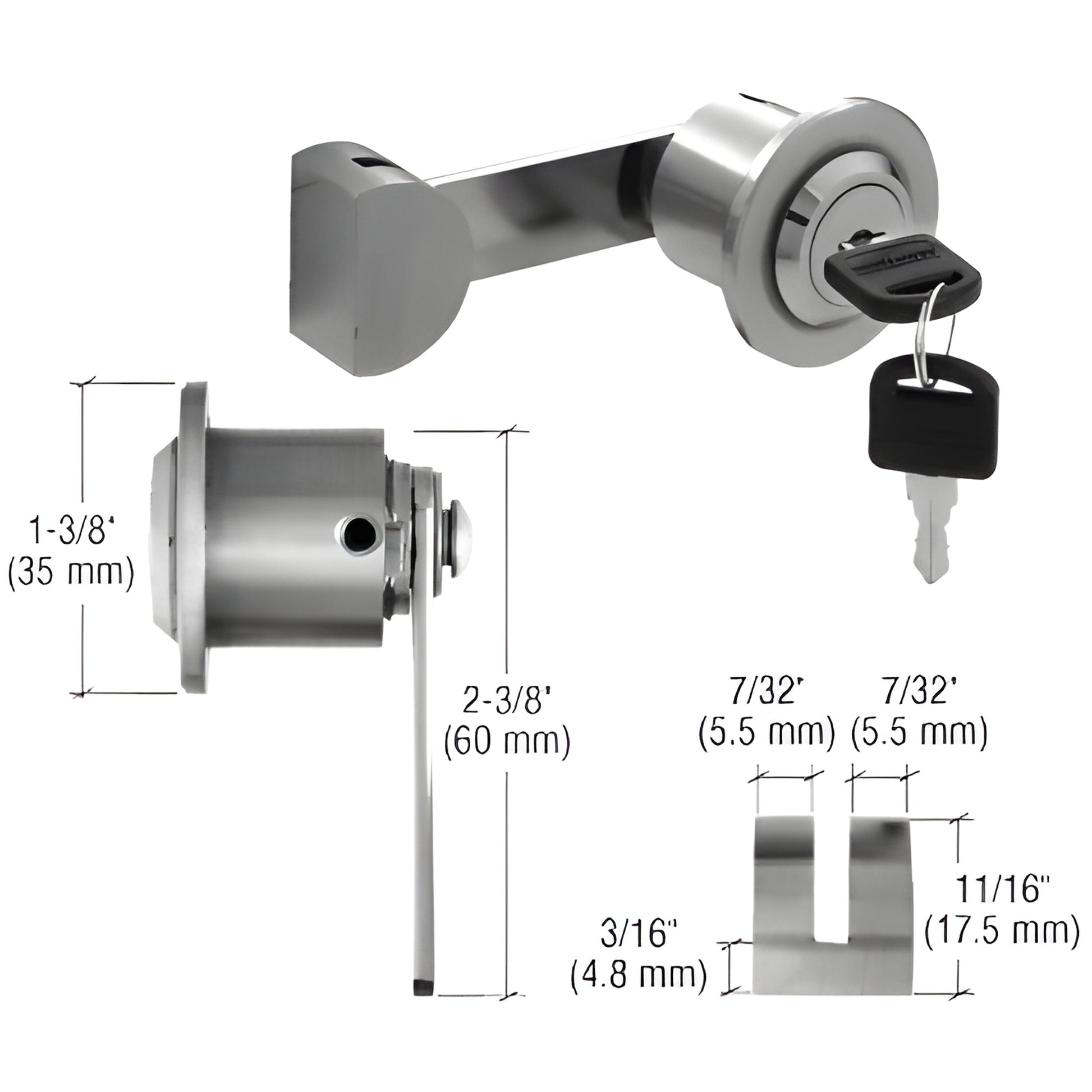

CRL's Versatile UV Lock can be used for both single inset or overlay glass doors. Requires drilling a 1" (25 mm) diameter hole in the glass door, with adhesive applied to rear surface of cover plate, and bonding the latch to the glass side panel. Each Lock includes a 1-7/8" (48 mm) short cam for overlay doors and a 2-3/8" (60 mm) long cam for inset doors. Designed for 'all-glass' cabinets with a maximum glass thickness of 3/8" (10 mm).
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
