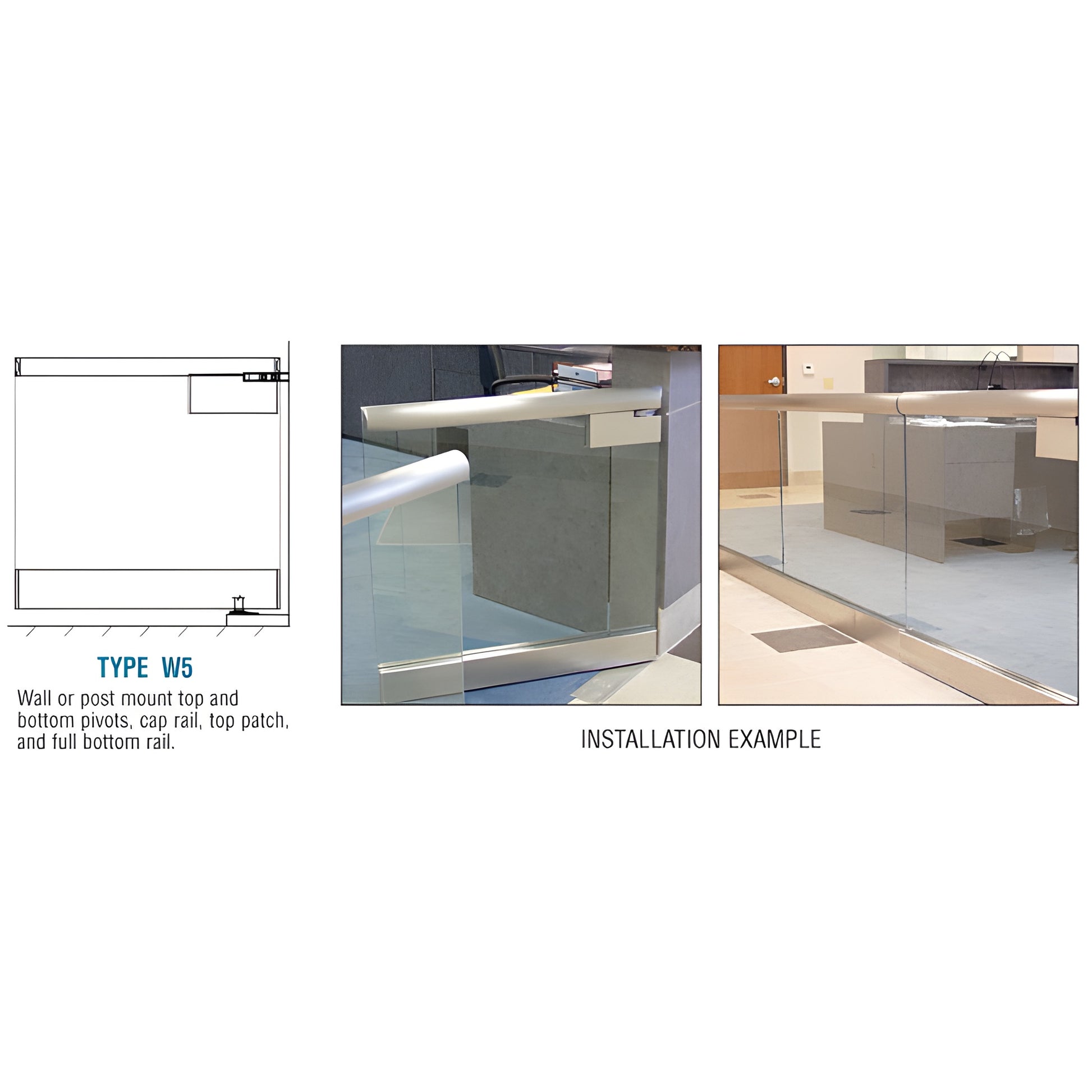

CRL Brushed Stainless Wall-Mount Swing Gate with 2.5" Cap Rail
CRL Brushed Stainless Wall-Mount Swing Gate with 2.5" Cap Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGW5BS25WC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Rail Type
Wide
Cap Rail Diameter
2-1/2 in. (64 mm)
Finish/Color
Brushed Stainless Steel
Overview
- Heavy-Duty Glass Gate With Cap Rail
- Beautiful in Design and Functional in Operation
- Custom Fabricated to Meet Your Design Requirements
CRL's CRL Series of Swinging Gates (SKU: SGW5BS25WC) are commercial-grade and residential glass swing gates engineered for reliable operation with a clean, architectural look. Designed as an offshoot of the Wedge-Lock® Door Rail System, these custom glass swing gates integrate seamlessly with the HRS Glass Rail System and optional HRS Cap Rails for a continuous glass railing appearance.
Key features and installation notes:
- Upper patch fitting modified for stainless steel bracket mounting or Cap Rail attachment
- Top pivot: heavy-duty ball bearing for smooth operation
- Bottom pivot: floor-mounted commercial door closer that automatically returns the gate to closed; closing speed is adjustable
- Bottom rail can be widened to match adjacent fixed railing base shoe for a flush transition
- Available in Wall Mount or Post Mount models
- Custom fabricated to your specifications—ideal for bespoke glass railing and glass gate installations
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact CRL Technical Sales for lead times or a quote.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
For custom glass gate pricing, technical questions, or to place an order for SKU SGW5BS25WC, contact CRL Technical Sales today.
Specifications
CAD Drawings - pdf
