CRL Brushed SS U-Channel 3/4" Glass Top-Load Roll-In Gasket 120"

• Fits glass thicknesses 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 or 19 mm)
• Designed for monolithic tempered glass
• Matches the width of door and sidelite rails and channels
• Accepts roll-in glazing gasket, top pivot block, and snap-in filler strip
• Ready-to-ship models from CRL inventory; available in stock lengths, fabricated headers, or header with side pockets for lift-and-drop panel installation

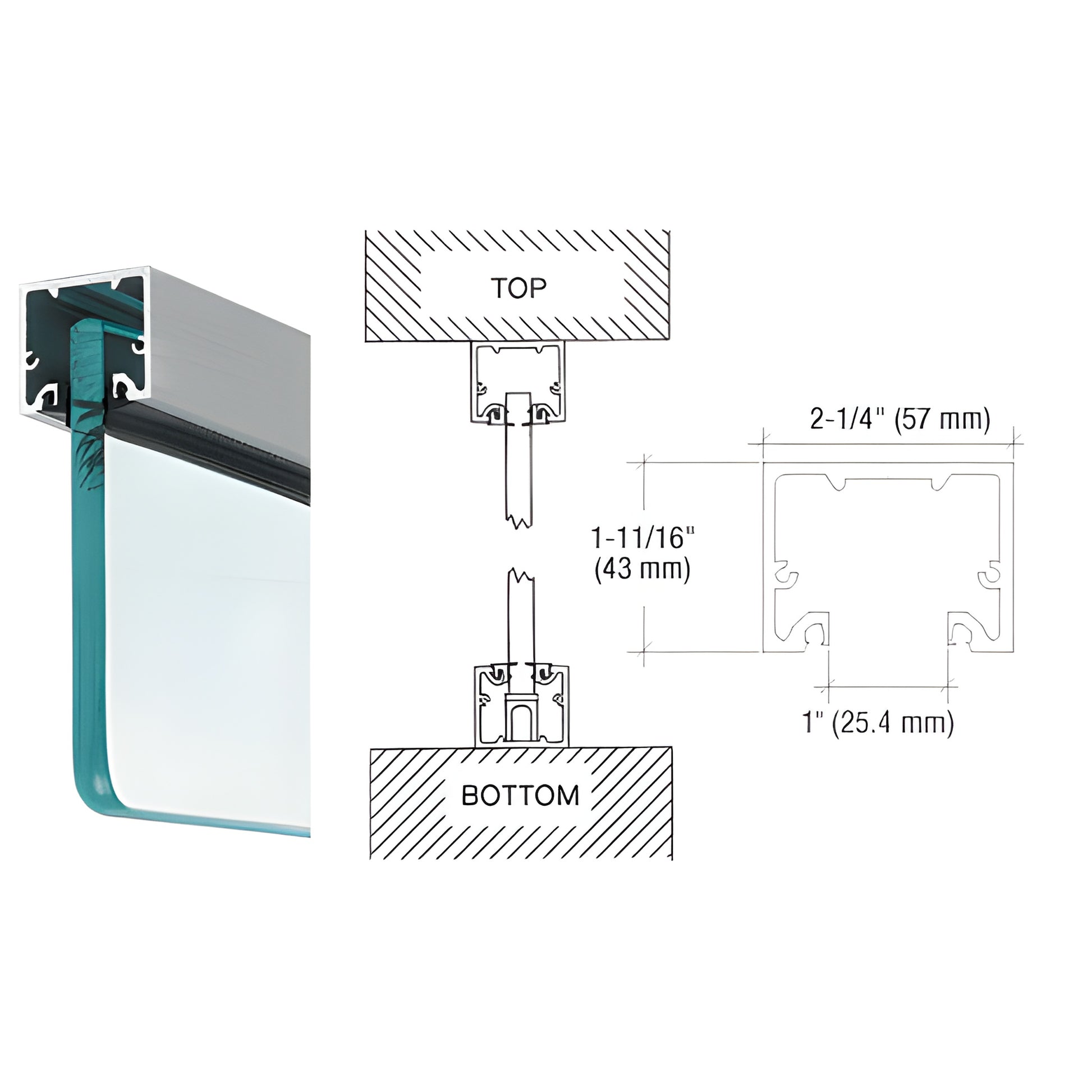

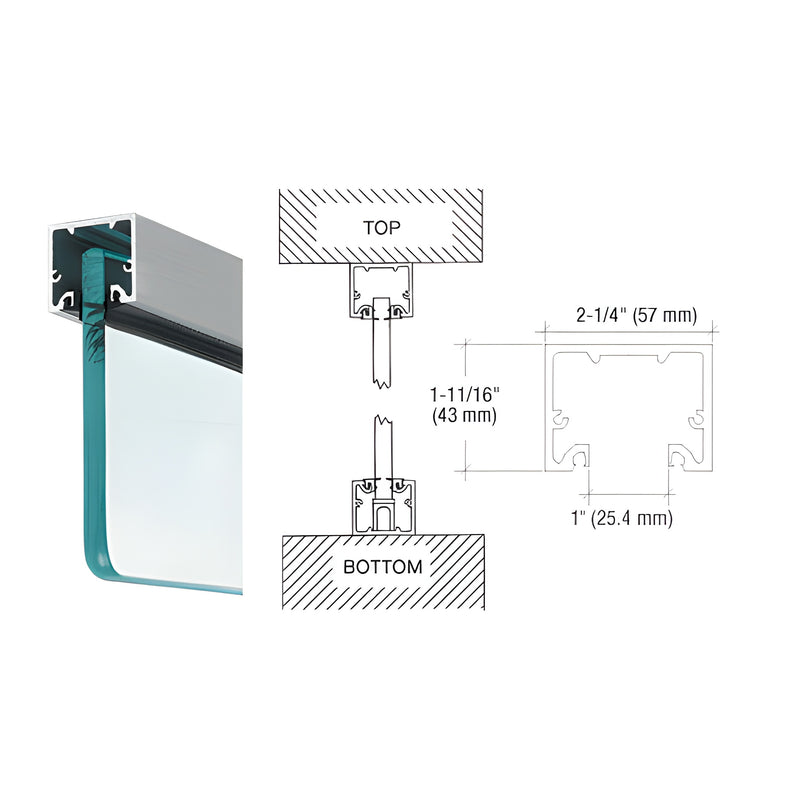

This aluminum extrusion (SKU: NH3BSSL) is stainless steel cladded aluminum engineered for three primary applications:

• U-Channel matching sidelite and door rail widths for seamless sight lines
• Narrow header matching sidelite and door rail width that accepts a top free-swinging pivot to secure the top of doors
• Even Sight Line System: secure the fabricated narrow header to the opening, then attach the sidelite rail to the narrow header with the 1/4" (6 mm) header saddle

All drilling, tapping, and fabrication can be completed at manufacture on request to save on-site installation time.

Quick Pick stock policy: These products are stocked at our centralized service center and ship on the next weekly re-supply truck to your regional CRL service center. If local stock is unavailable, orders are typically filled within a few days. Check current availability by clicking "CHECK STOCK AVAILABILITY".

Product Warning:
This material is stainless steel cladded aluminum and must not be cut with a standard chop saw or abrasive blade—these will overheat and damage the cladding finish. Use a cold saw to prevent finish damage. For guidance, contact Technical Sales.

Stainless Steel Advisory:

Order NH3BSSL today or contact CRL for fabrication and stock availability.
