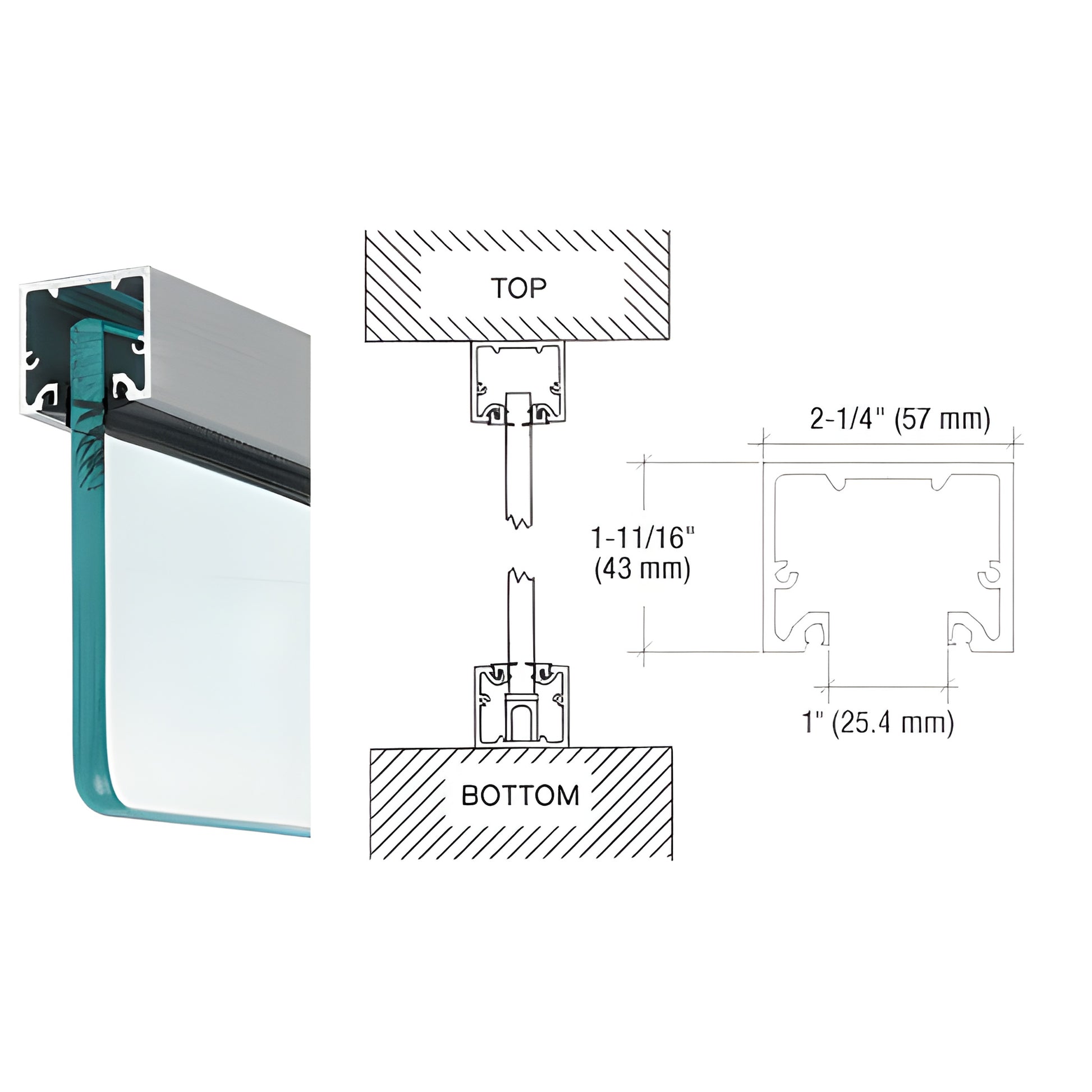

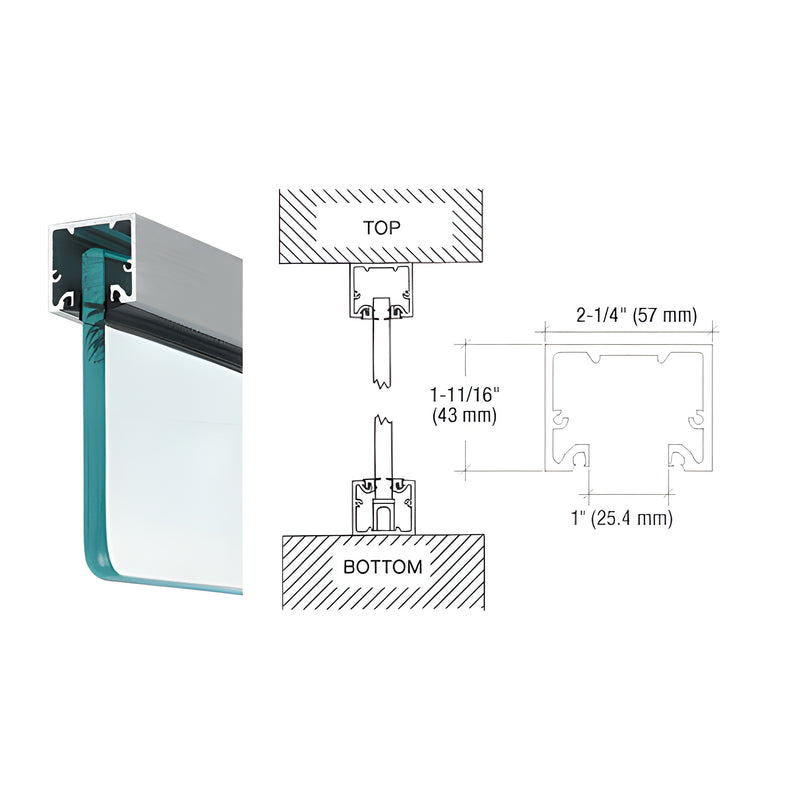

CRL Brushed Stainless Steel U-Channel, Glazing Gasket for 3/4" Glass
CRL Brushed Stainless Steel U-Channel, Glazing Gasket for 3/4" Glass
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# NH3BSCL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Height
1-11/16 in. (43 mm)
Length
Specify
Width
2-1/4 in. (57 mm)
Overview
- Matches width of door and sidelite rails; accepts roll-in gasket, top pivot block and flush snap-in insert
- Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
- Special sidelite rail adapter creates a continuous sight line when used with the narrow header
This CRL Wide U-Channel and Narrow Header (SKU: NH3BSCL) is engineered for use as:
- a U-channel matching our Sidelite and Door Rails,
- a narrow header with the same sidelite/door rail width that accepts a top free-swinging pivot to secure door tops, and
- an Even Sight Line System—attach the fabricated narrow header to the opening, then secure the sidelite rail to the header using the 1/4" (6.4 mm) header saddle for a continuous sight line.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ideal for commercial glass doors, narrow header systems, and continuous sight line sidelite installations—order SKU NH3BSCL or contact us for a quote today.
