• CRL SDR bottom-rolling sliding door rail, 4" brushed stainless steel, max 48x108 in, SKU 4SDR1ABS
1 1

CRL

CRL Brushed Stainless 4" Square Rail Sliding Door Entrance System

CRL Brushed Stainless 4" Square Rail Sliding Door Entrance System

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR1ABS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

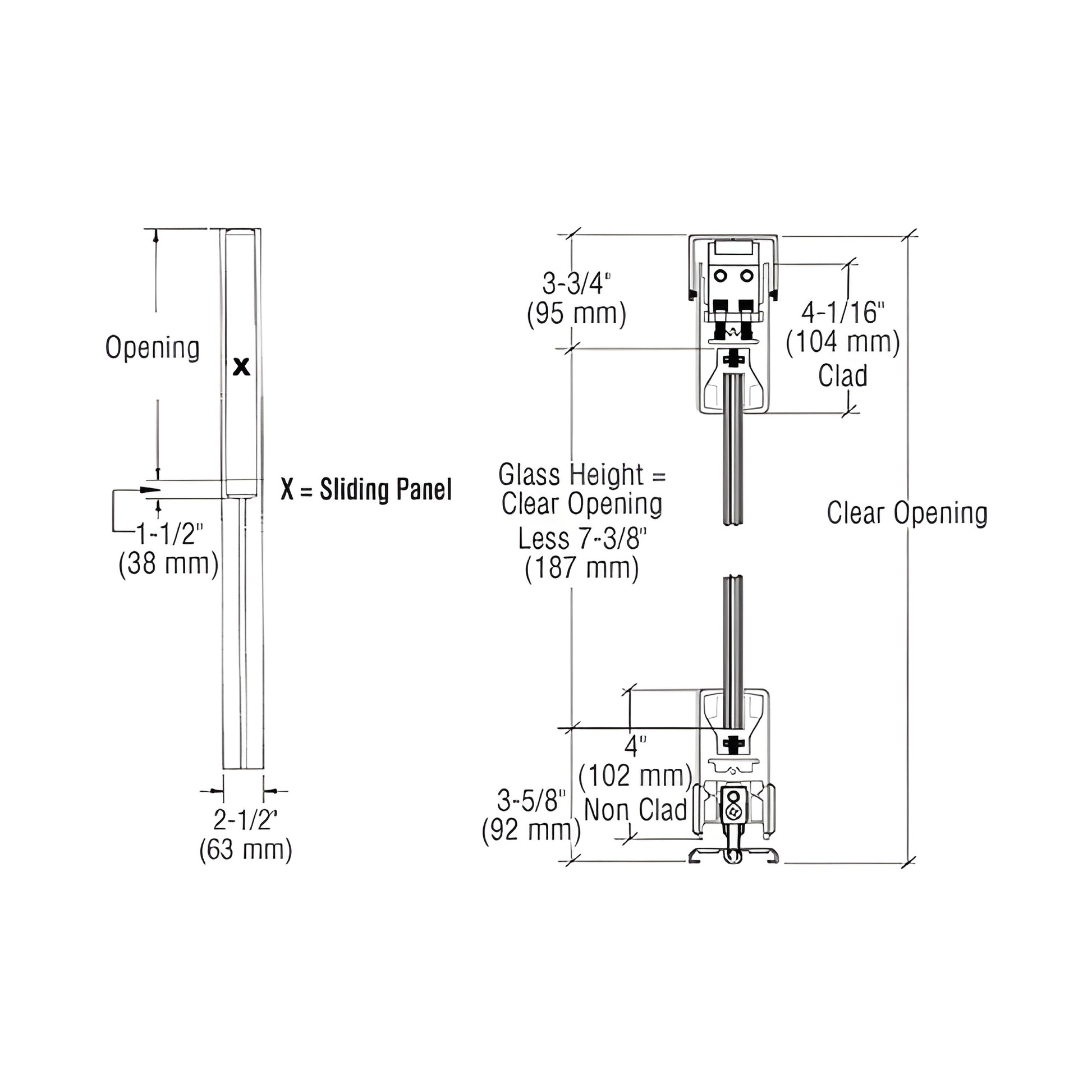

The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) Square Rails top and bottom and the patented Wedge-Lock® Glass Securing System for secure, tool-free glass retention. DR4S Series rails are custom fabricated for all door and fixed panels and are ideal for commercial and high-end residential applications requiring a durable, low-profile bottom rolling sliding door solution.

Key specifications: Maximum door width 48" (1.22 m); maximum door height 108" (2.74 m); maximum door weight 234 lbs. (106 kg). Doors can be ordered with or without locks in the bottom rail. SKU: 4SDR1ABS.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.

Differentiators: Wedge-Lock® system for reliable glass retention, precision-fabricated DR4S rails, seven architectural finishes for seamless design integration. Order now to get custom-fabricated rails to your specifications.
