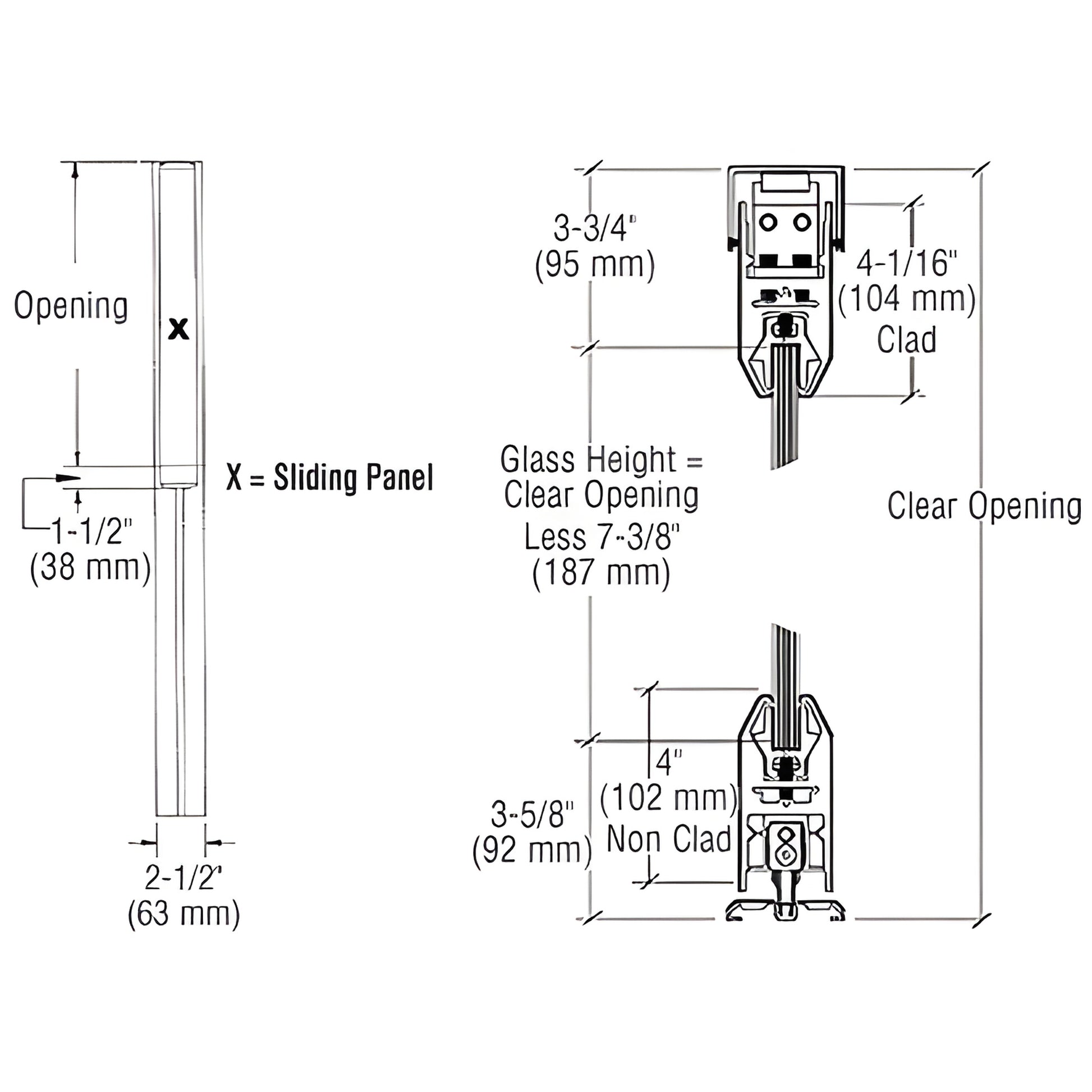

• SDR1ABS technical drawing of CRL SDR bottom-rolling sliding door system, 4" tapered rails, brushed stainless, key dimensions.
1 1

CRL

CRL Brushed Stainless 4" Top & Bottom Tapered Rail Sliding Door

CRL Brushed Stainless 4" Top & Bottom Tapered Rail Sliding Door

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR1ABS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
X-/-X
Finish/Color
Brushed Stainless Steel
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) tapered top and bottom rails and the patented Wedge-Lock® Glass Securing System for secure, low-profile glass retention. DR4T Series rails are used for all door and fixed panels and are custom fabricated to your specifications. Doors are available with or without bottom-rail locks. Maximum door width is 48" (1.22 m) and maximum height is 108" (2.74 m); maximum weight is 234 lb (106 kg). Ideal for commercial and architectural glass applications requiring heavy-duty bottom rolling sliding door hardware and precision glass door systems.

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor and video card settings.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.

Choose the CRL SDR system for durable, customizable bottom rolling sliding door hardware with tapered 4" rails and Wedge-Lock® glass security — contact CRL to request a quote or technical support.
