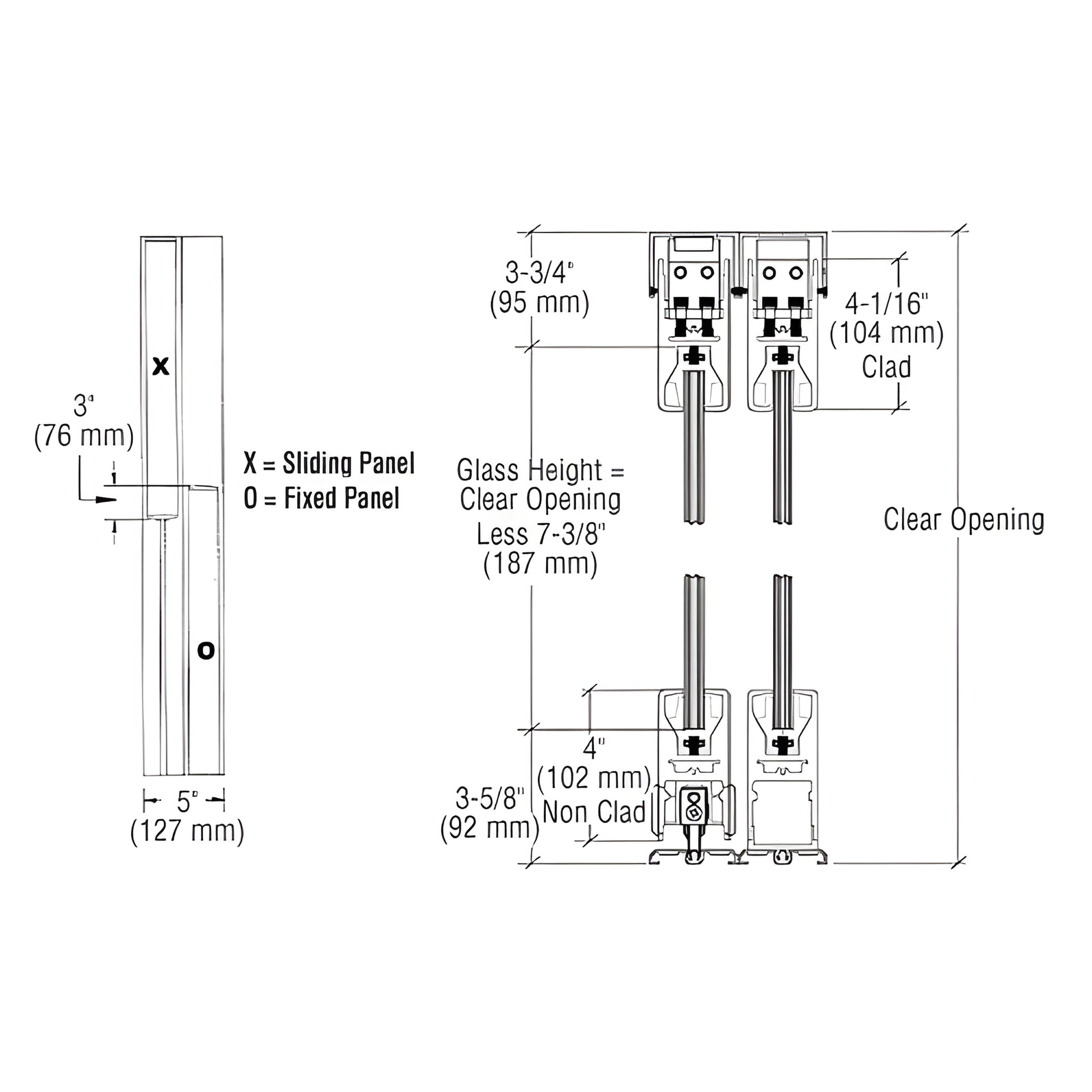

• SDR bottom-rolling sliding door system (SKU 4SDR2CBS), brushed stainless 4" rails, technical diagram, max 48" W x 108" H
1 1

CRL

CRL Brushed Stainless XO/OX Sliding Door Entrance, 4" Top/Bottom Rail

CRL Brushed Stainless XO/OX Sliding Door Entrance, 4" Top/Bottom Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR2CBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) Square Rails top and bottom and uses the Wedge-Lock® Glass Securing System for secure, concealed glass retention. DR4S Series door rails serve all door and fixed panels and are custom fabricated to your exact specifications, making this bottom rolling sliding door ideal for commercial storefronts, interior partitions, and architectural glass applications. Doors are available with or without bottom-rail locks. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum weight: 234 lb (106 kg).

Most shipping weights are approximate and have not been verified. If exact shipping weight is required to calculate costs and complete your order, contact CRL Customer Service before submitting your order. Product images represent the actual product or a close representation. Colors may vary by monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.

Custom-fabricated rails and multiple architectural finishes provide design flexibility—contact CRL Customer Service to request a quote or place an order.
