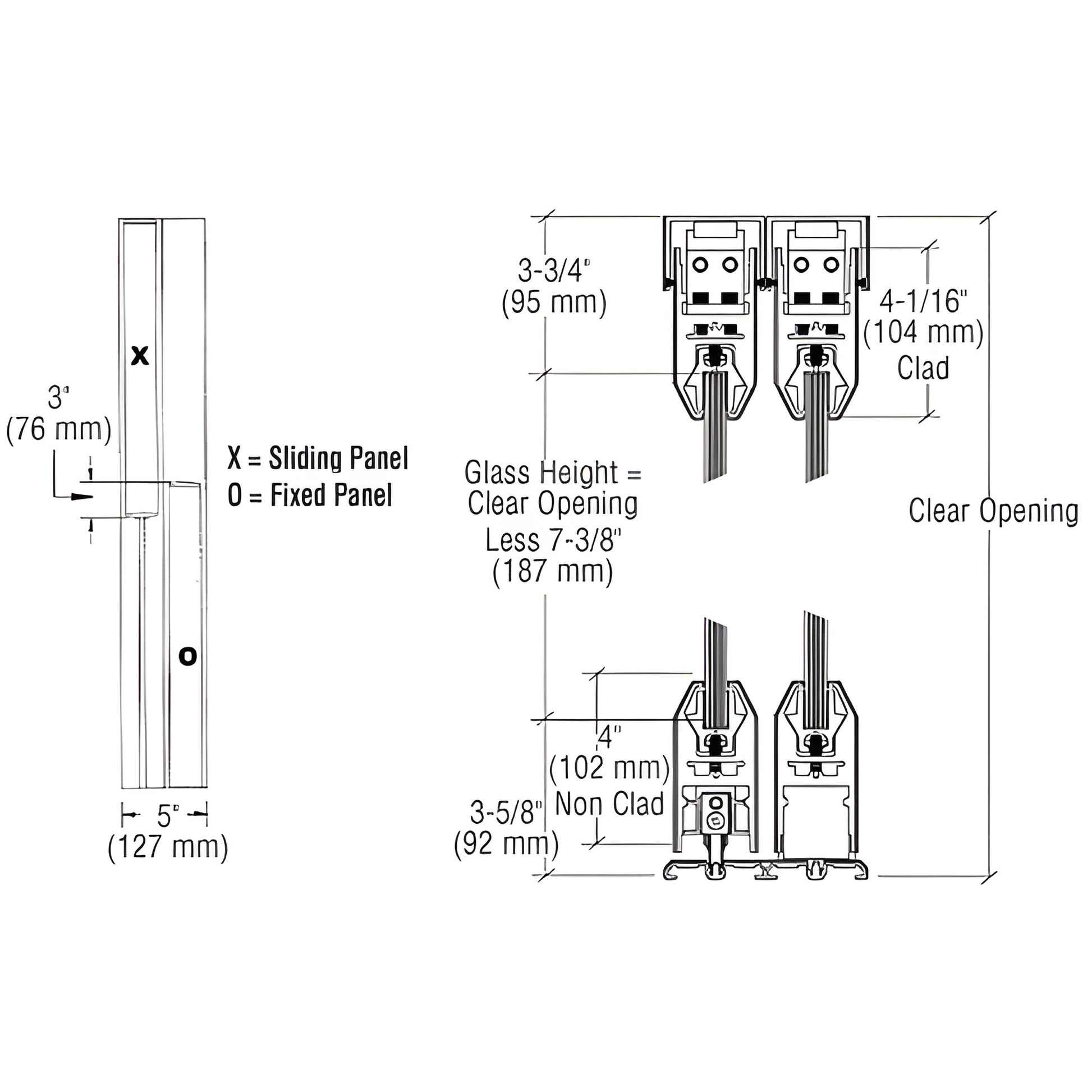

• Technical drawing of CRL SDR2CBS bottom-rolling sliding door system with 4 tapered rails, panel labels and key dimensions.
1 1

CRL

CRL Brushed Stainless XO/OX Sliding Door System, 4 in Tapered Rails

CRL Brushed Stainless XO/OX Sliding Door System, 4 in Tapered Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR2CBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
XO/OX
Door Type
Sliding
Finish/Color
Brushed Stainless Steel
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • Features 4" Tapered DR4T Series door rails (top and bottom)
  • Available in seven architectural finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR2CBS) uses 4" (102 mm) tapered DR4T rails top and bottom and the proven Wedge-Lock® Glass Securing System for secure, smooth bottom-rolling operation. DR4T rails are custom fabricated to your project specifications and used for both door and fixed panels. Doors may be ordered with or without bottom-rail locks. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lb (106 kg).

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor and video card settings.

Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not fully rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for maintenance guidance.

Ideal for commercial and architectural applications requiring a durable bottom rolling sliding door system with customizable 4-inch tapered rails—contact CRL to request a quote or technical assistance.
