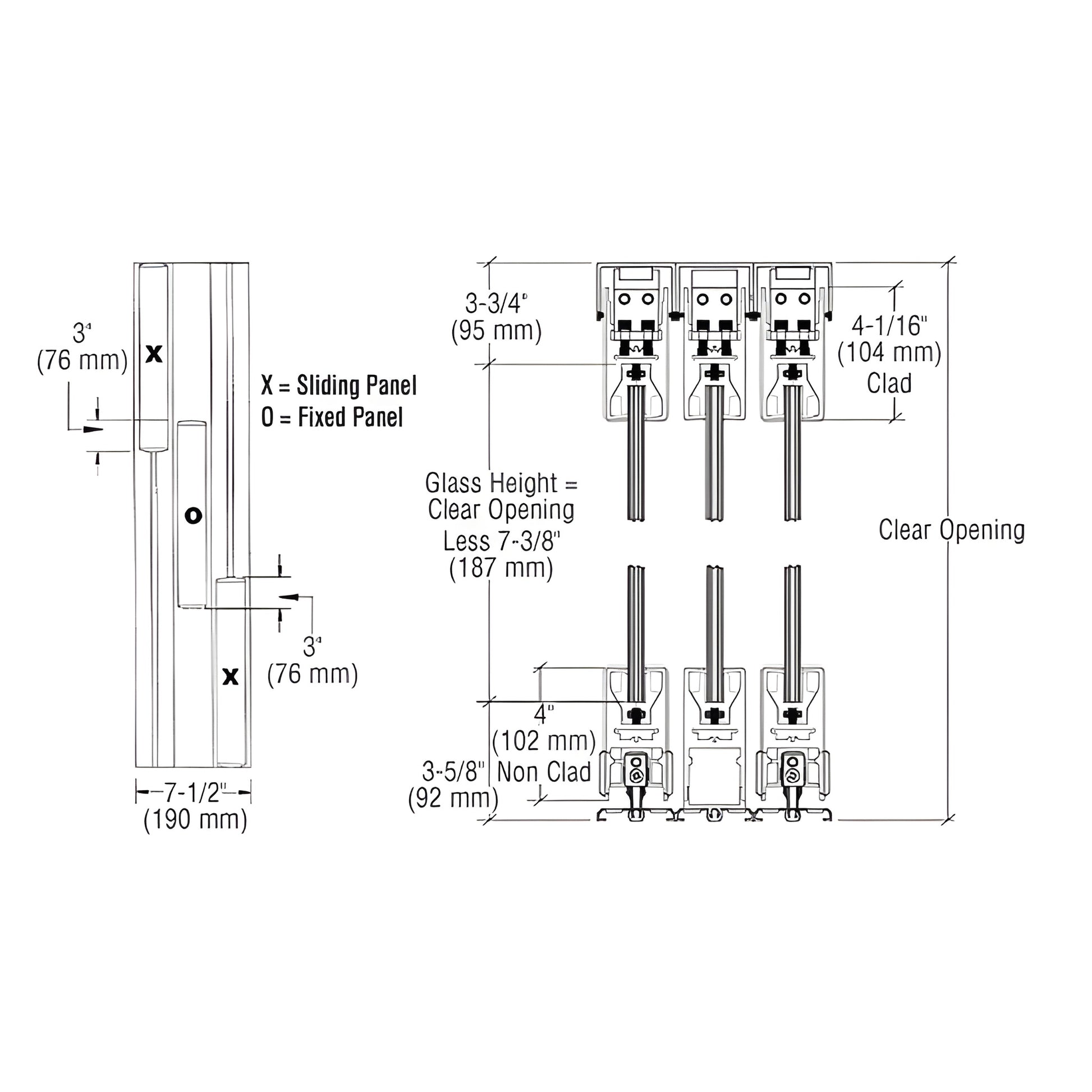

• Technical CAD drawing of CRL SDR bottom-rolling sliding door system (SKU 4SDR3DBS), showing rails, glass and dimensional deta
1 1

CRL

CRL Brushed Stainless XOX Sliding Hardware - 4in Top & Bottom Rail

CRL Brushed Stainless XOX Sliding Hardware - 4in Top & Bottom Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR3DBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR3DBS) features 4" (102 mm) square rails top and bottom and the patented Wedge-Lock® Glass Securing System for reliable, tool-free glass retention. DR4S Series rails are custom fabricated to your project specifications and serve all door and fixed panels. Doors can be ordered with or without locks integrated into the bottom rail. Maximum door width: 48" (1.22 m); maximum height: 108" (2.74 m); maximum weight: 234 lb (106 kg). This bottom-rolling sliding door system is ideal for commercial and high-traffic applications requiring durable, architectural-grade hardware.

Most shipping weights are approximate and have not been verified. If you need exact shipping weight or shipping cost information to complete your order, please contact CRL Customer Service before submitting your order. Product images are accurate representations; actual colors may vary by monitor and video settings.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care guidelines.

Order the CRL SDR Bottom Rolling Sliding Door System today or contact us for a custom quote and finish options.
