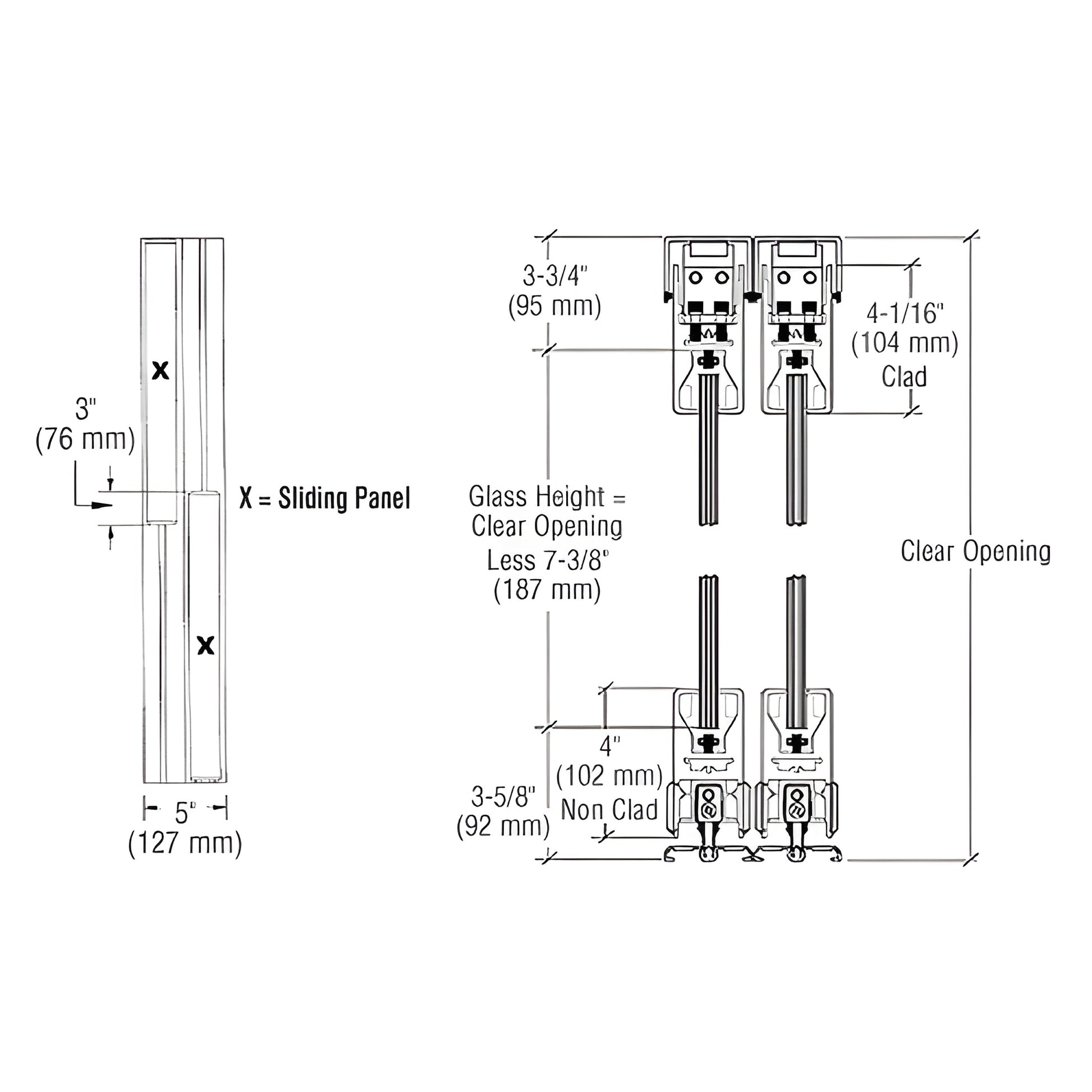

• CRL SDR bottom-rolling sliding door system (SKU 4SDR2BBS), 4" brushed stainless rails, max 48"x108", 234 lb capacity.
1 1

CRL

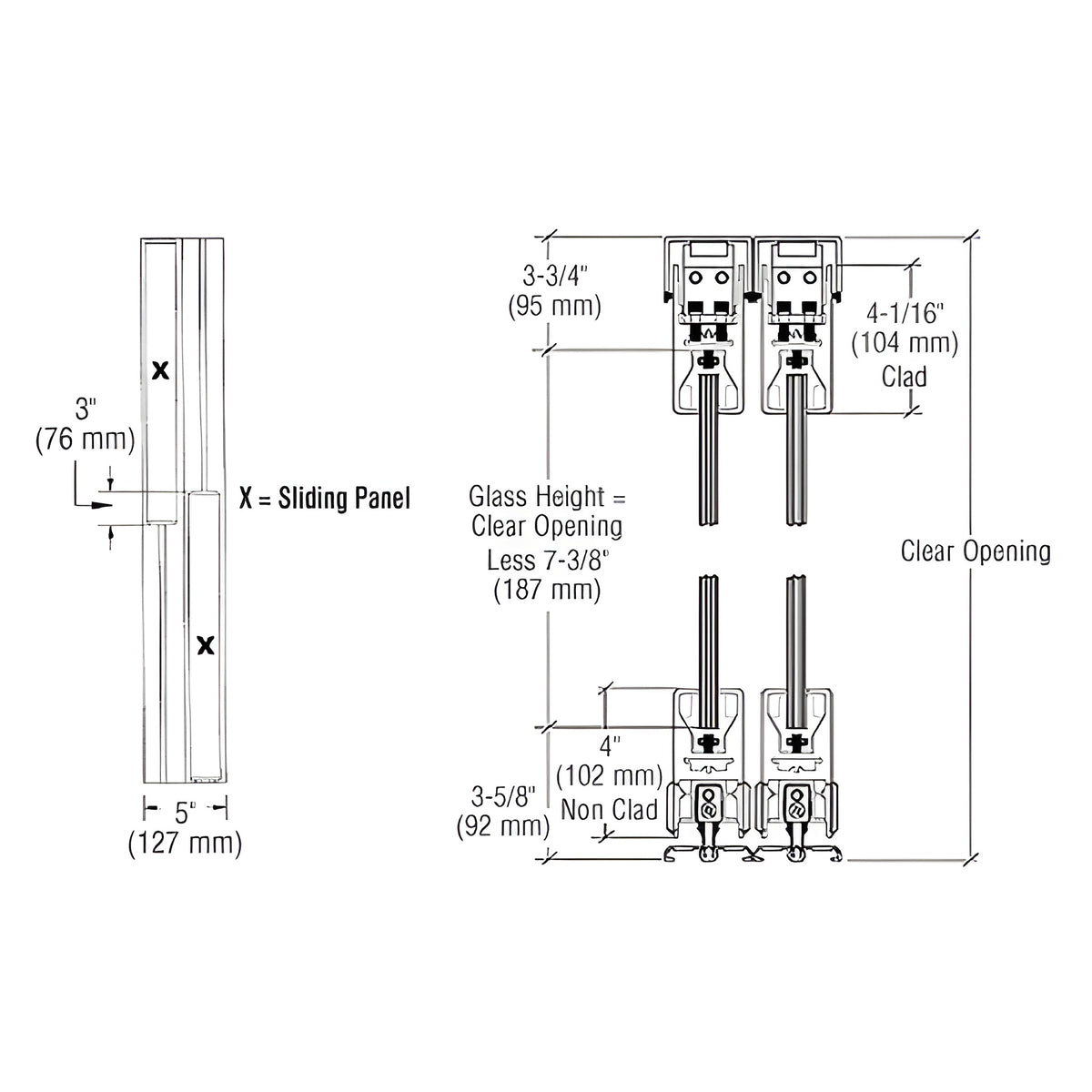

CRL Brushed Stainless Sliding Glass Door System, 4in Top/Bottom Rails

CRL Brushed Stainless Sliding Glass Door System, 4in Top/Bottom Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR2BBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) square top and bottom rails uses the proven Wedge-Lock® Glass Securing System for secure, reliable glass retention. DR4S Series rails are custom fabricated to your specifications for both door and fixed panels. Doors are available with or without locks in the bottom rail to suit commercial and residential applications.
  • Maximum door width: 48" (1.22 m)
  • Maximum door height: 108" (2.74 m)
  • Maximum door weight: 234 lbs (106 kg)

SKU: 4SDR2BBS

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.

Engineered for durability and smooth bottom-rolling performance—order the CRL SDR Bottom Rolling Sliding Door System (SKU 4SDR2BBS) today or contact CRL for custom specifications and finish options.
