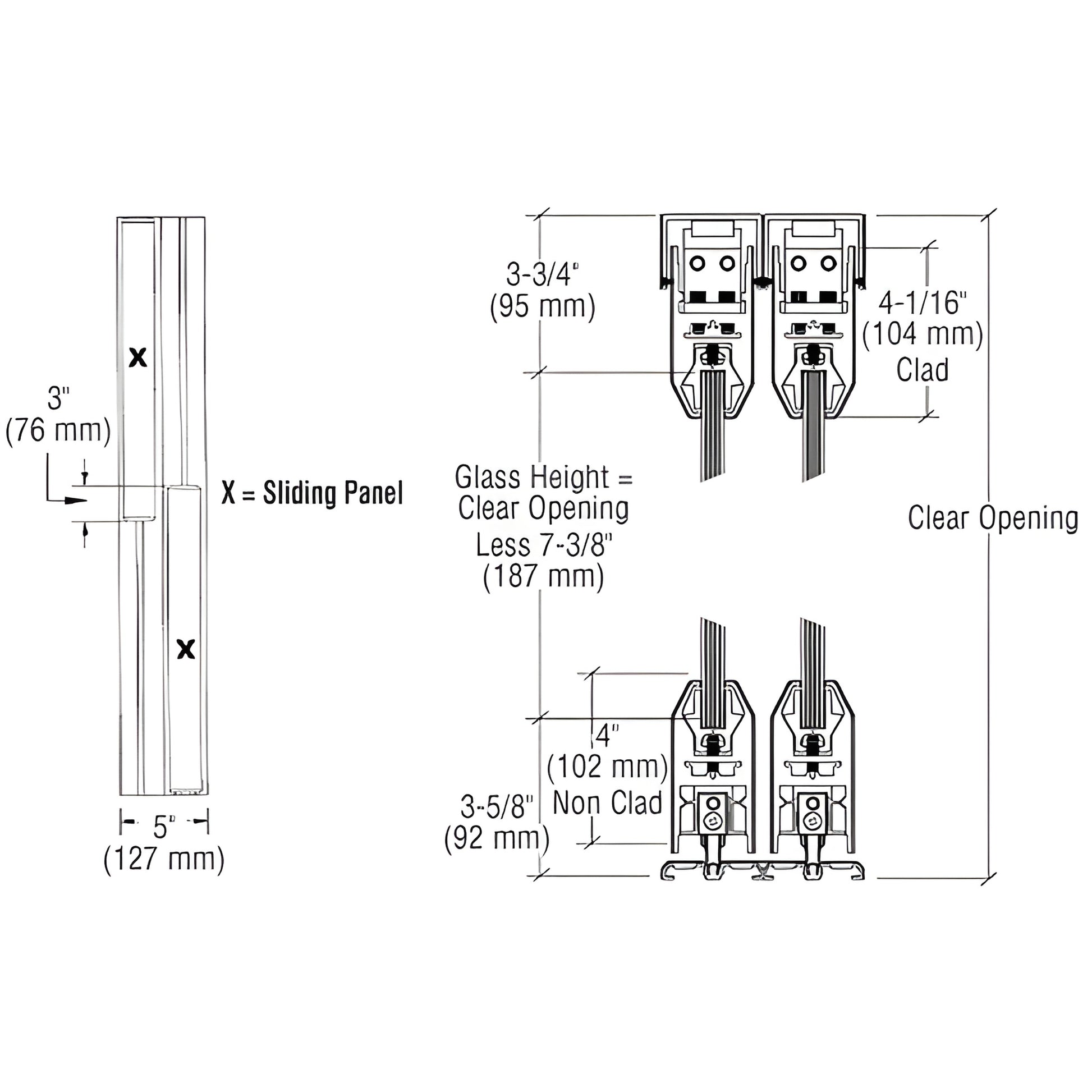

• SDR2BBS bottom-rolling sliding door system, brushed stainless, 4in tapered rails, fits up to 48x108 in panels, 234 lb max.
1 1

CRL

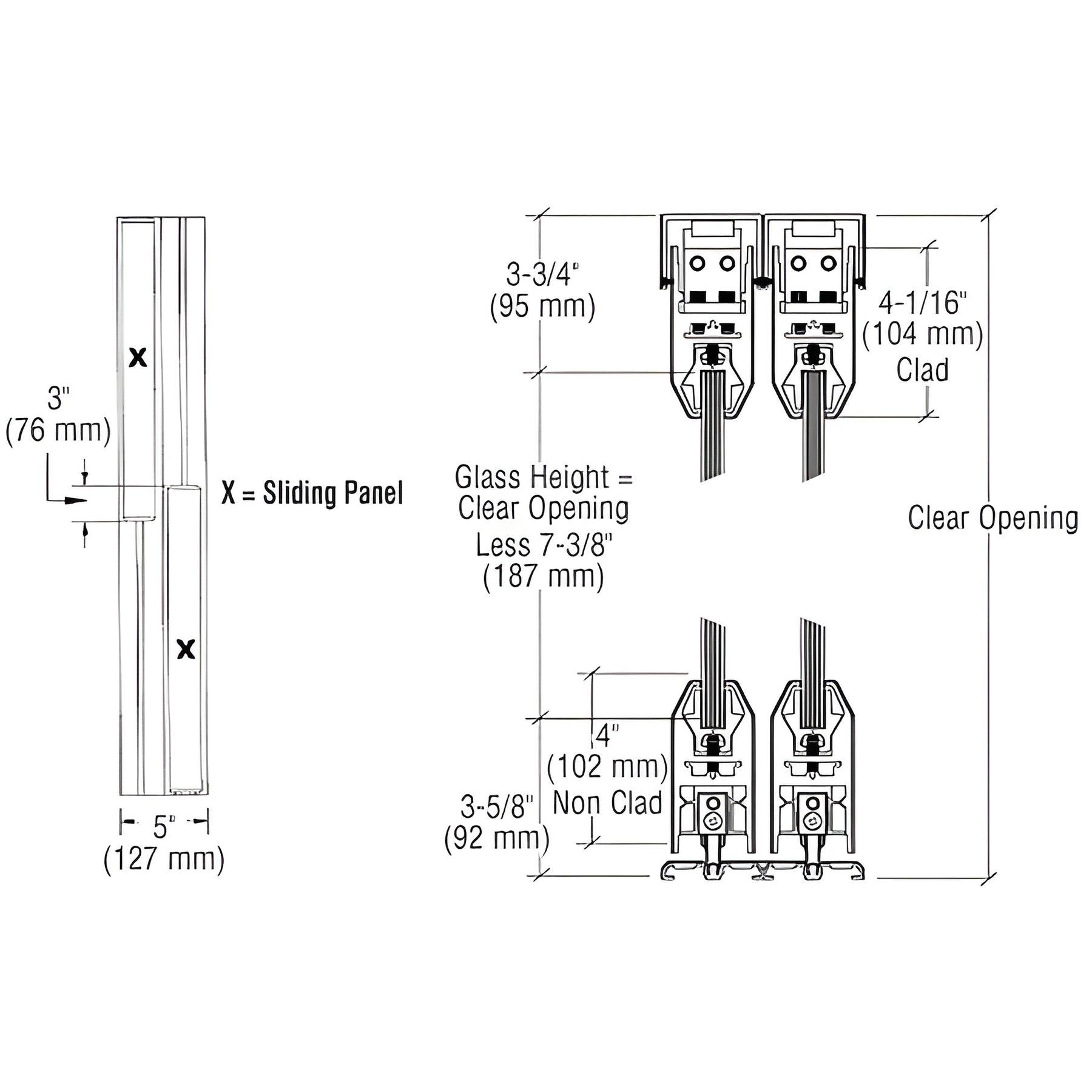

CRL Brushed Stainless XX Format Sliding Door - 4" Tapered Rails

CRL Brushed Stainless XX Format Sliding Door - 4" Tapered Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR2BBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
X X
Door Type
Sliding
Finish/Color
Brushed Stainless Steel
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR2BBS) features 4" (102 mm) tapered DR4T rails top and bottom and uses the proven Wedge-Lock® Glass Securing System for secure, clean glass retention. DR4T Series door rails are used for all door and fixed panels and are custom fabricated to your specifications. Doors are available with or without locks integrated into the bottom rail. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum weight per door: 234 lbs. (106 kg). This bottom-rolling sliding door system is ideal for commercial and architectural openings that require durable, low-profile tapered rails and customizable finishes.

Most shipping weights are approximate and have not been verified. If you need exact shipping weights to determine shipping costs before ordering, please contact CRL Customer Service. Product images show the actual product or a close representation; colors may vary based on your monitor and video card settings.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.

For custom quotes, finish options, or to order the SDR Bottom Rolling Sliding Door System (SDR2BBS), contact CRL Customer Service today.
