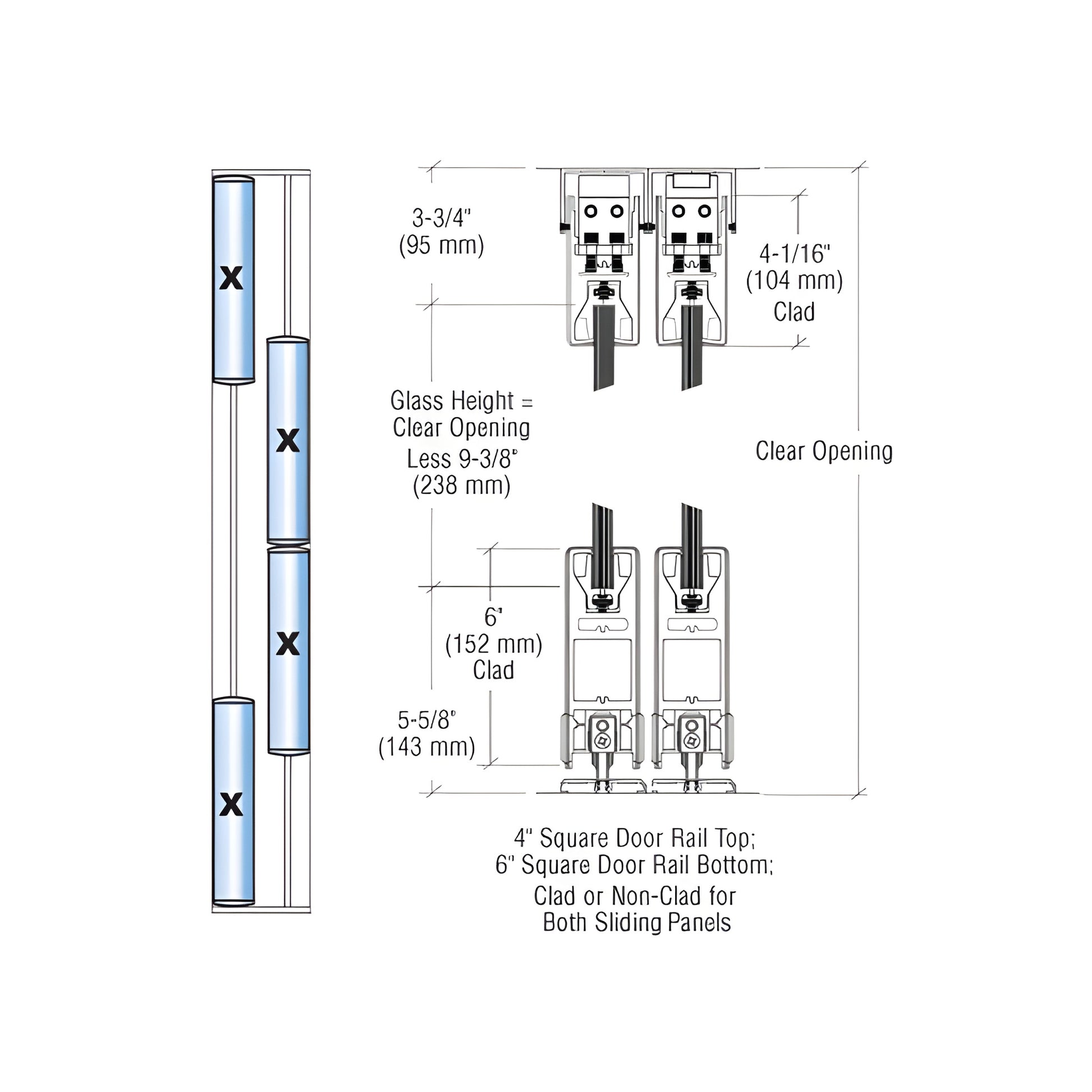

• Technical drawing of CRL SDR bottom-rolling sliding door system (SKU 6SDR42FBS) showing 4" top and 6" bottom rails with dimen
1 1

CRL

CRL Brushed Stainless Sliding Door System – 4in Top, 6in Bottom Rail

CRL Brushed Stainless Sliding Door System – 4in Top, 6in Bottom Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 6SDR42FBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
XXXX
Finish/Color
Brushed Stainless Steel
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4

Overview

  • With 4" Square DR4S Series Door Rails and 6" Square DR6S Series Bottom Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: 6SDR42FBS) features 4" (102 mm) square top rails (DR4S) and 6" (152 mm) square bottom rails (DR6S) and uses CRL’s Wedge-Lock® Glass Securing System for secure, dependable glass retention. This bottom rolling sliding door system is custom fabricated to your specifications and can be ordered with or without locks in the bottom rail. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum weight: 234 lbs (106 kg).

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before ordering, please contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor and video card settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for maintenance guidance.

Highlight: Wedge-Lock® Glass Securing System, seven architectural finishes, and custom fabrication make this bottom rolling sliding door ideal for commercial and residential openings where durability and clean aesthetics matter. Order or request a quote today.
