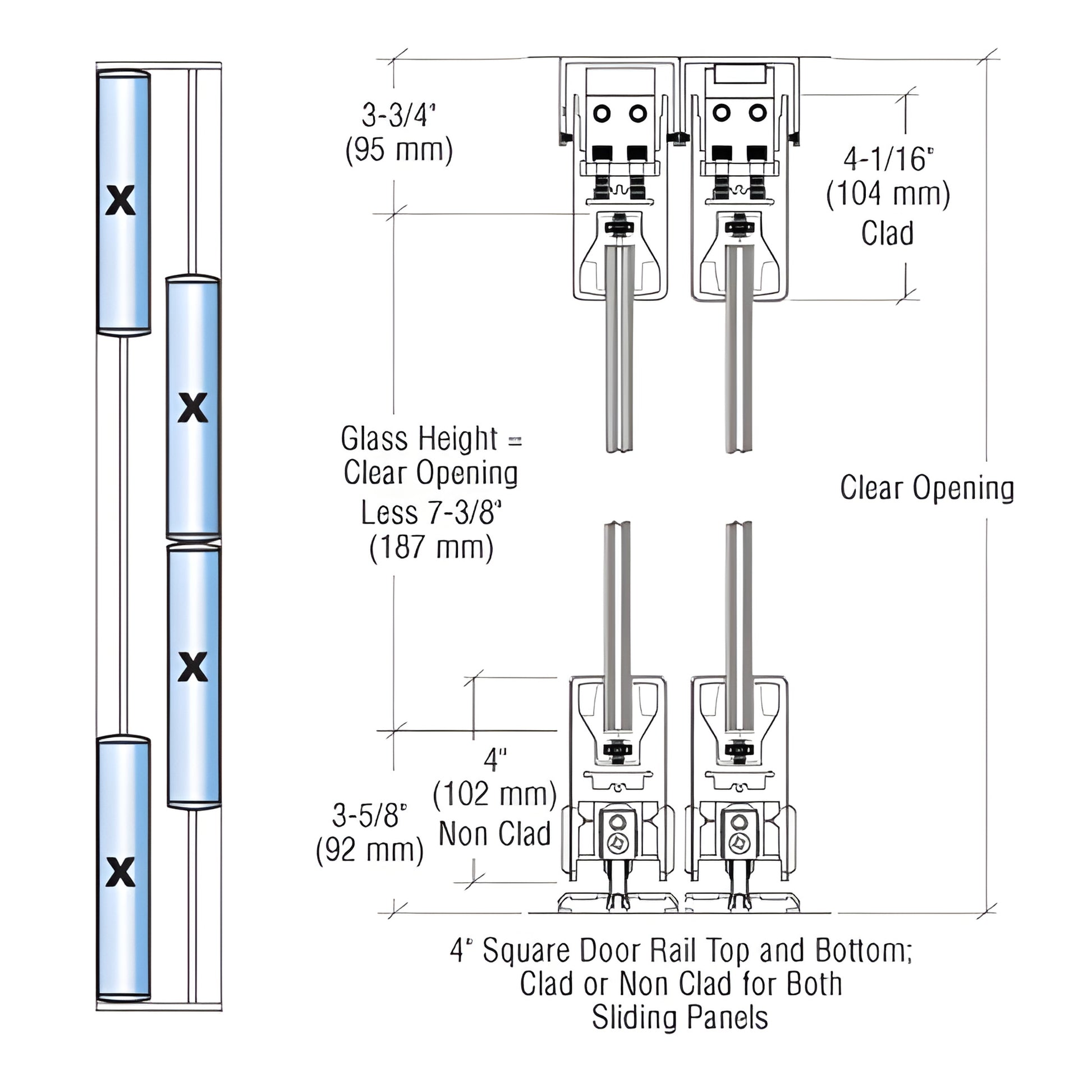

• Technical drawing of CRL SDR bottom-rolling sliding glass door system, 4" brushed stainless rails, 4-panel, SKU 4SDR42FBS
1 1

CRL

CRL Brushed Stainless 4" Top & Bottom Square Rail Sliding Door System

CRL Brushed Stainless 4" Top & Bottom Square Rail Sliding Door System

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR42FBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR42FBS) features 4" (102 mm) square top and bottom rails and uses the proven Wedge-Lock® Glass Securing System for secure, low-profile glass installation. The DR4S Series rails are custom fabricated for both door and fixed panels to your specifications, making this a versatile bottom rolling sliding door solution for commercial and residential glass openings.
  • Optional bottom-rail locking available
  • Maximum door width: 48" (1.22 m)
  • Maximum door height: 108" (2.74 m)
  • Maximum door weight: 234 lbs. (106 kg)

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

For custom sizes, finishes, or ordering information for SKU 4SDR42FBS, contact CRL Customer Service or request a quote today.
