• CRL SDR42FBS bottom-rolling sliding door system, brushed stainless steel, 4" tapered rails, max 48 108 in, 234 lb
1 1

CRL

CRL Brushed Stainless XXXX Sliding Door System - 4" Tapered Rails

CRL Brushed Stainless XXXX Sliding Door System - 4" Tapered Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR42FBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
XXXX
Door Type
Sliding
Finish/Color
Brushed Stainless Steel
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

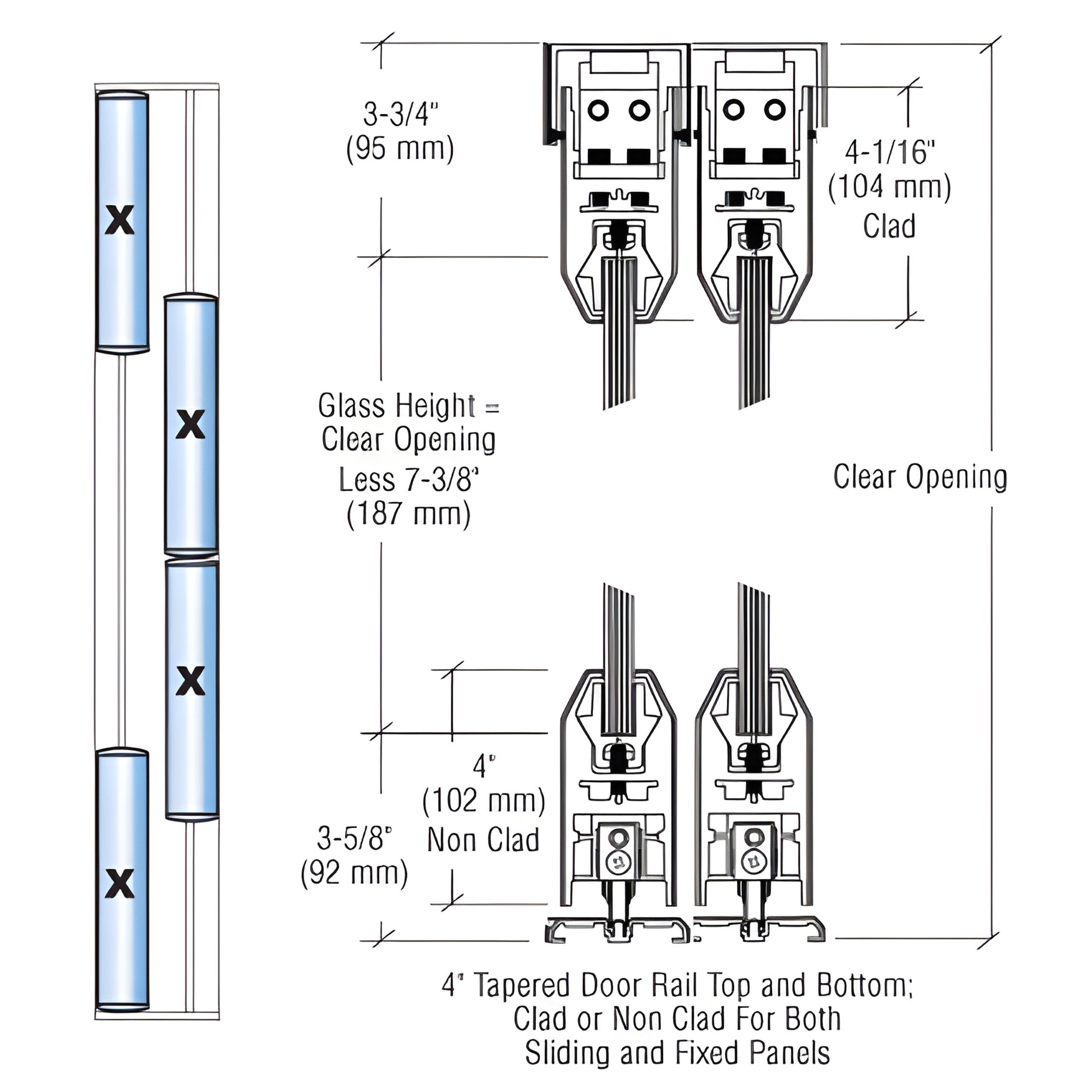

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR42FBS) features 4" (102 mm) tapered rails top and bottom and uses the industry‑proven Wedge-Lock® Glass Securing System for secure, reliable panel retention. DR4T Series door rails are used for all door and fixed panels and are custom fabricated to your specifications. Doors may be ordered with or without locks in the bottom rail. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum weight: 234 lb (106 kg). Ideal for commercial and architectural applications requiring a durable bottom rolling sliding door system with tapered rails and multiple finish options.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and how your monitor's color is adjusted.

Stainless Steel Advisory:
Although stainless steel is highly corrosion resistant, it is not rust- or stain‑proof. CRL recommends periodic maintenance to help preserve the factory finish. For full details, see the Stainless Steel Disclaimer in the Technical References section below.

Available in seven architectural finishes—contact CRL for finish options and custom fabrication lead times. Order the CRL SDR Bottom Rolling Sliding Door System (SDR42FBS) today to get started.
