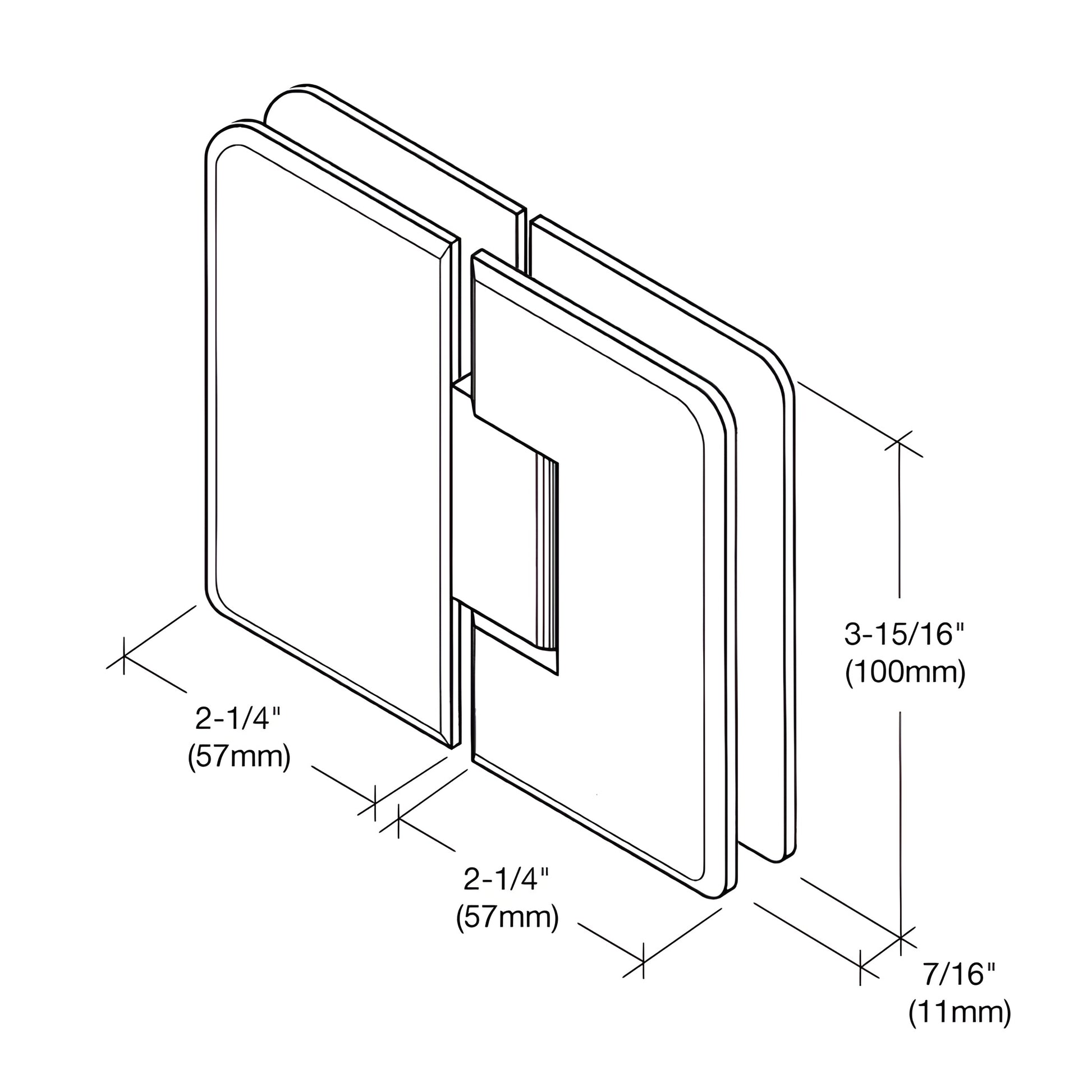

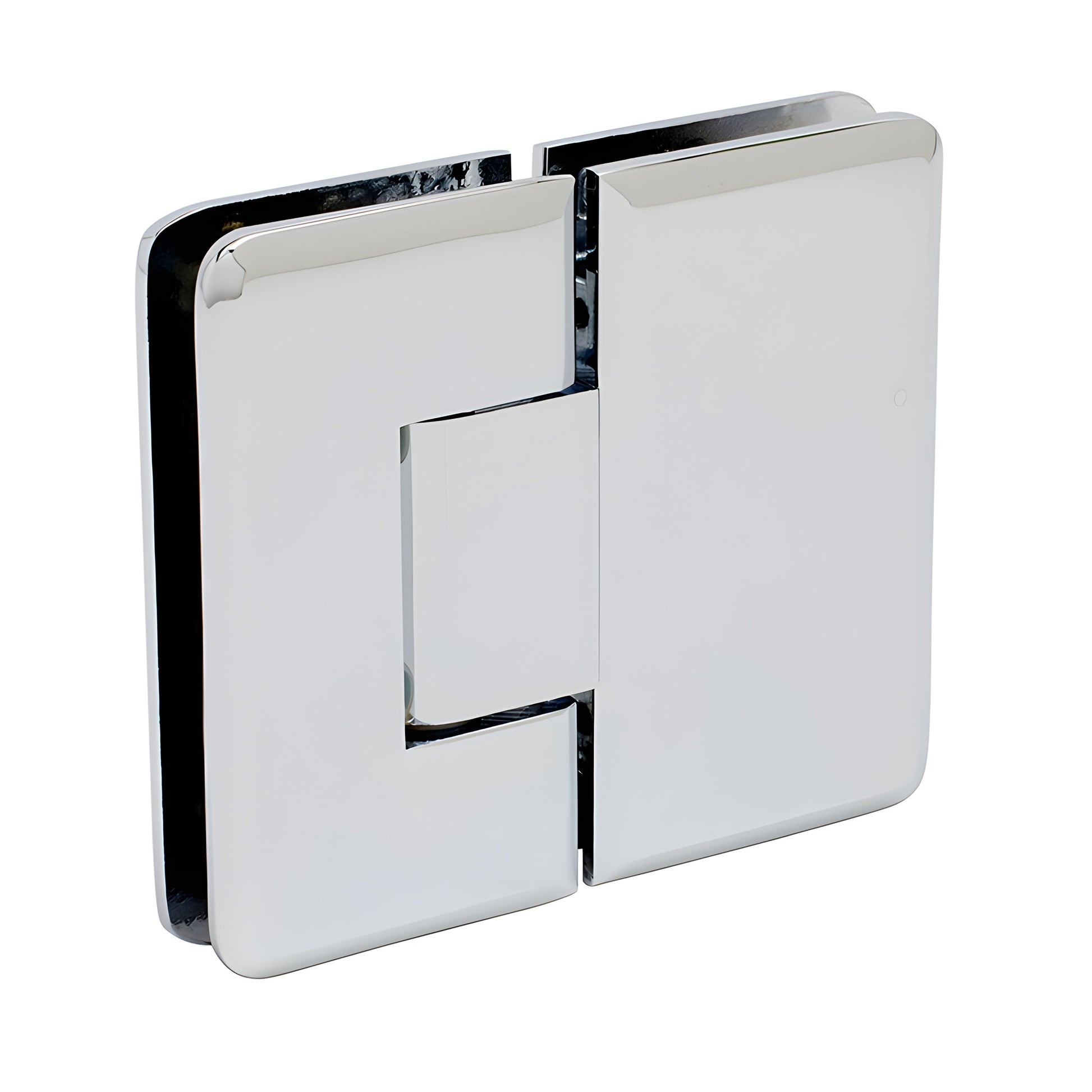

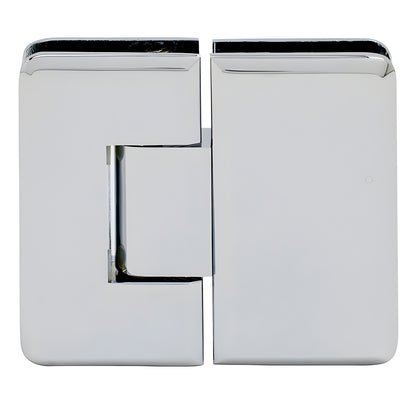

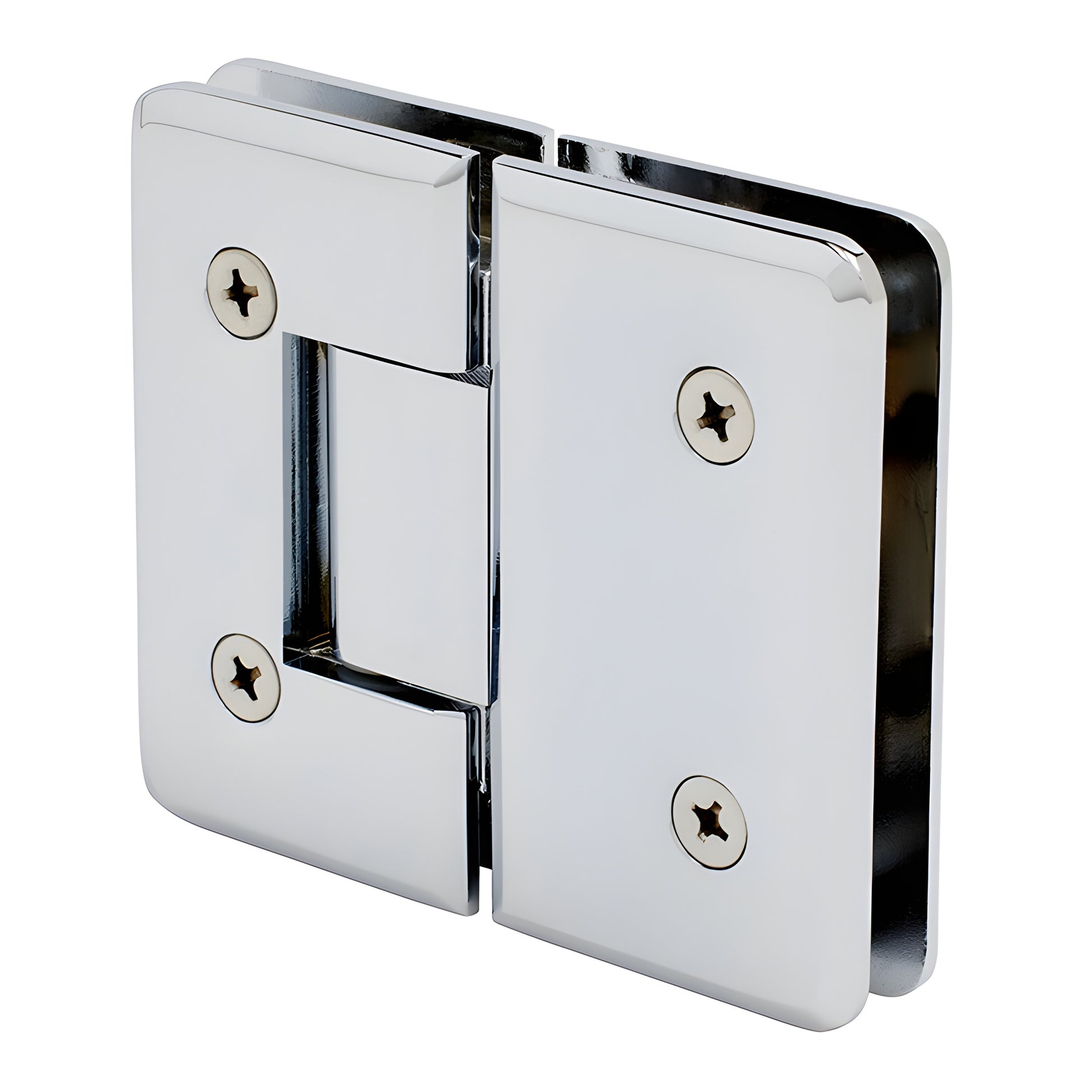

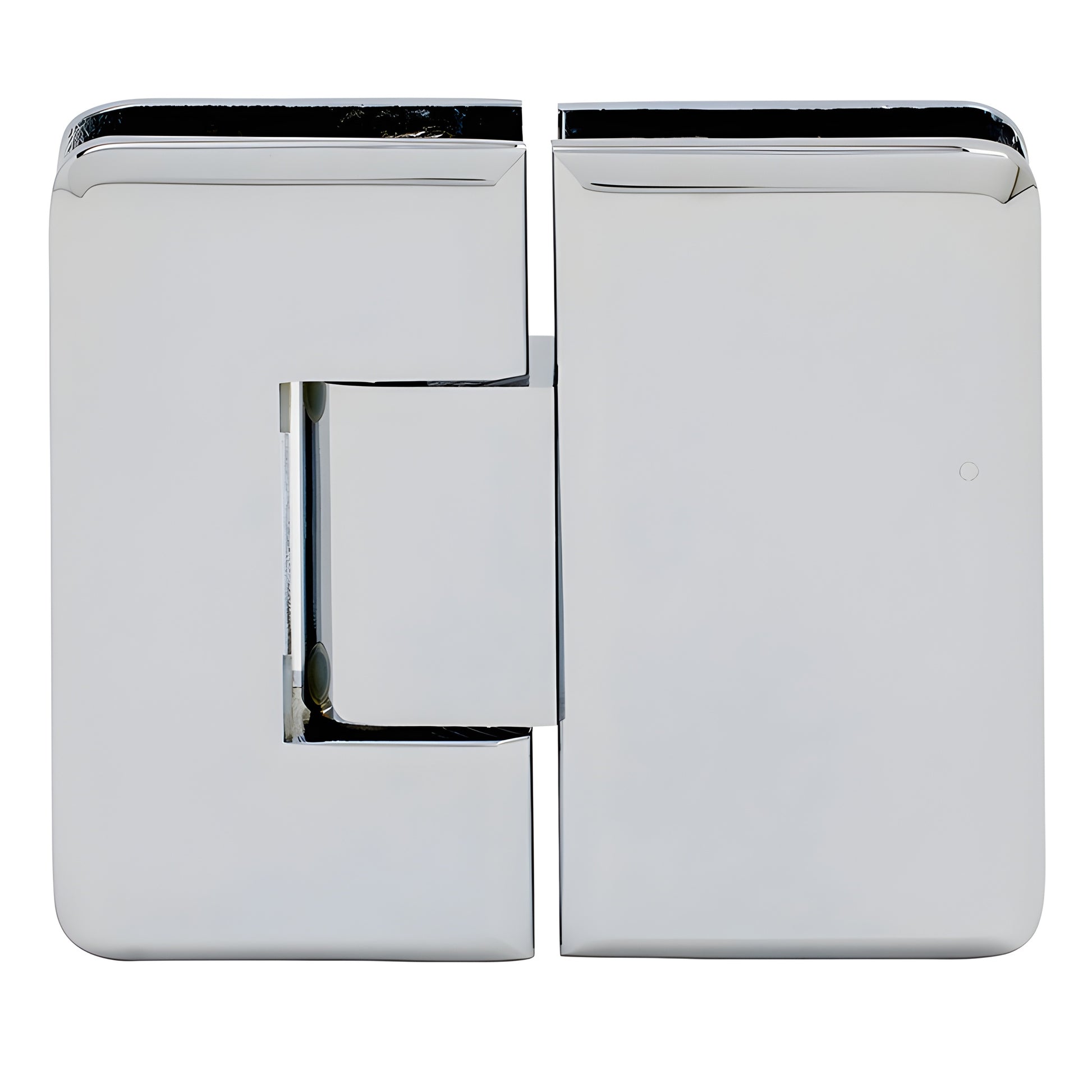

CRL Cologne Chrome 180° Glass-to-Glass Positive-Close Shower Hinge

• Special grooved internal pivot pin for positive, precise closing action
• Available as wall-mount and 180º glass-to-glass hinge
• Stocked in four popular finishes; other finishes available by special order

The Positive Close Cologne Hinge (SKU: C0L780CH) features a grooved internal pivot pin that delivers a precise, positive closing action—different from typical self-centering cologne hinges. Ideal for glass shower door installations requiring a secure, zero-degree positive close. Stocked in four popular finishes; custom finishes available on request.


Load Capacity & Glass Compatibility
Using two hinges with 3/8" to 1/2" glass (10–12 mm), holds up to 110 lbs. (50 kg) with maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10–12 mm), holds up to 140 lbs. (63 kg) with maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10–12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° inward and outward
Closing Type: Positive closing to 0° (zero degrees)
Cut-Out Required
Includes: gaskets, Phillips screws, Allen screws, and glass fabrication dimensions
Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)

Custom finishes available—contact CRL Technical Sales Shower Door Department for special orders.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For uses other than intended, obtain approval from CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may not match other brands.



For pricing, finish options, or to order SKU C0L780CH, contact CRL Customer Service or the Shower Door Technical Sales Department today.
