CRL

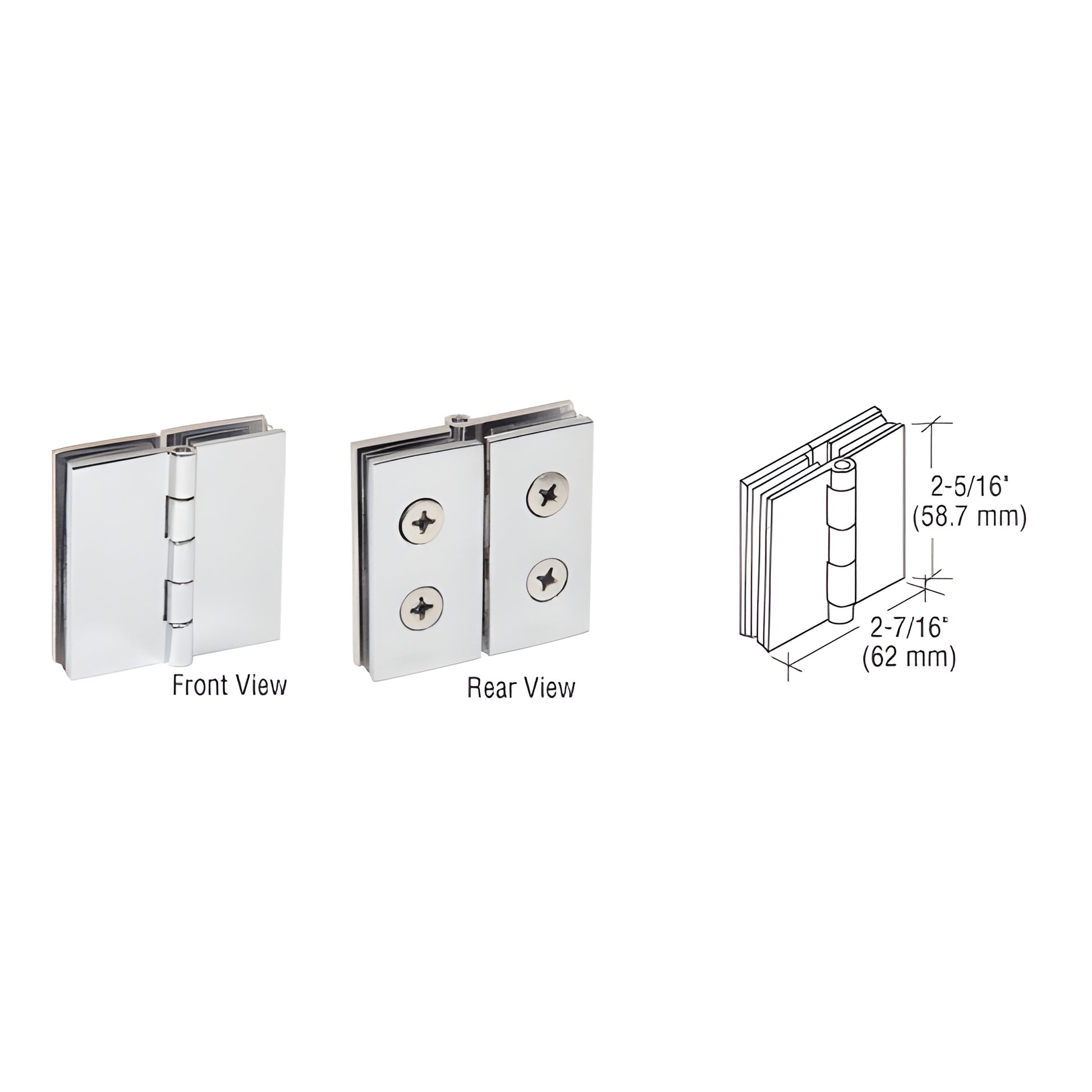

CRL Chrome 180° Glass-to-Glass Shower Door Hinge
Item# EH242
Shipping Weight: 1.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
2-5/16 in. (58.7 mm)
Material
Brass
Maximum Door Width
22 in. (558.8 mm)
Open Width
2-7/16 in. (61.9 mm)
Pack Quantity
2
Weight Capacity
30 lbs. (13.6 kg)
- For 1/4" to 5/16" (6 to 8 mm) glass
- Four 1/2" (12 mm) holes required
- One pair per package (SKU: EH242)
- Use monolithic tempered glass
For glass-to-glass inline applications, CRL Brass Double Glass-to-Glass 180 Degree Return Hinges feature forged brass construction and screw-attachment mounting. Clear vinyl pad inserts protect the glass. Available in polished brass with lacquered finish or chrome plated. Requires four 1/2" (12 mm) holes in the glass for mounting.
Maximum recommended door width: 22" (559 mm). Maximum recommended weight: 30 lbs. (13.6 kg).
Forged brass construction with clear vinyl pads for glass protection. Available finishes: polished brass (lacquered) or chrome plated.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
CAD Drawings - dwg
