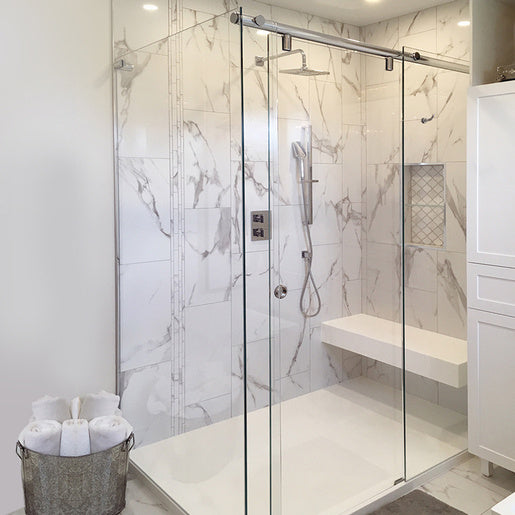

CRL Chrome 60" Hydroslide 180 Degree Sliding Shower Door Kit

Design Style

Squared

Enclosure Type

Corner, Niche, Bathtub, Tailor Made Solutions

Finish/Color

Polished Chrome

Glazing Thickness

5/16 in. To 3/8 in. (8 mm To 10 mm)

Length

60 in. (1524 mm)

Maximum Door Weight

88 lbs. (39.9 kg)

Opening Style

Slide, Fold

Roller Location

Top

Series

Hydroslide

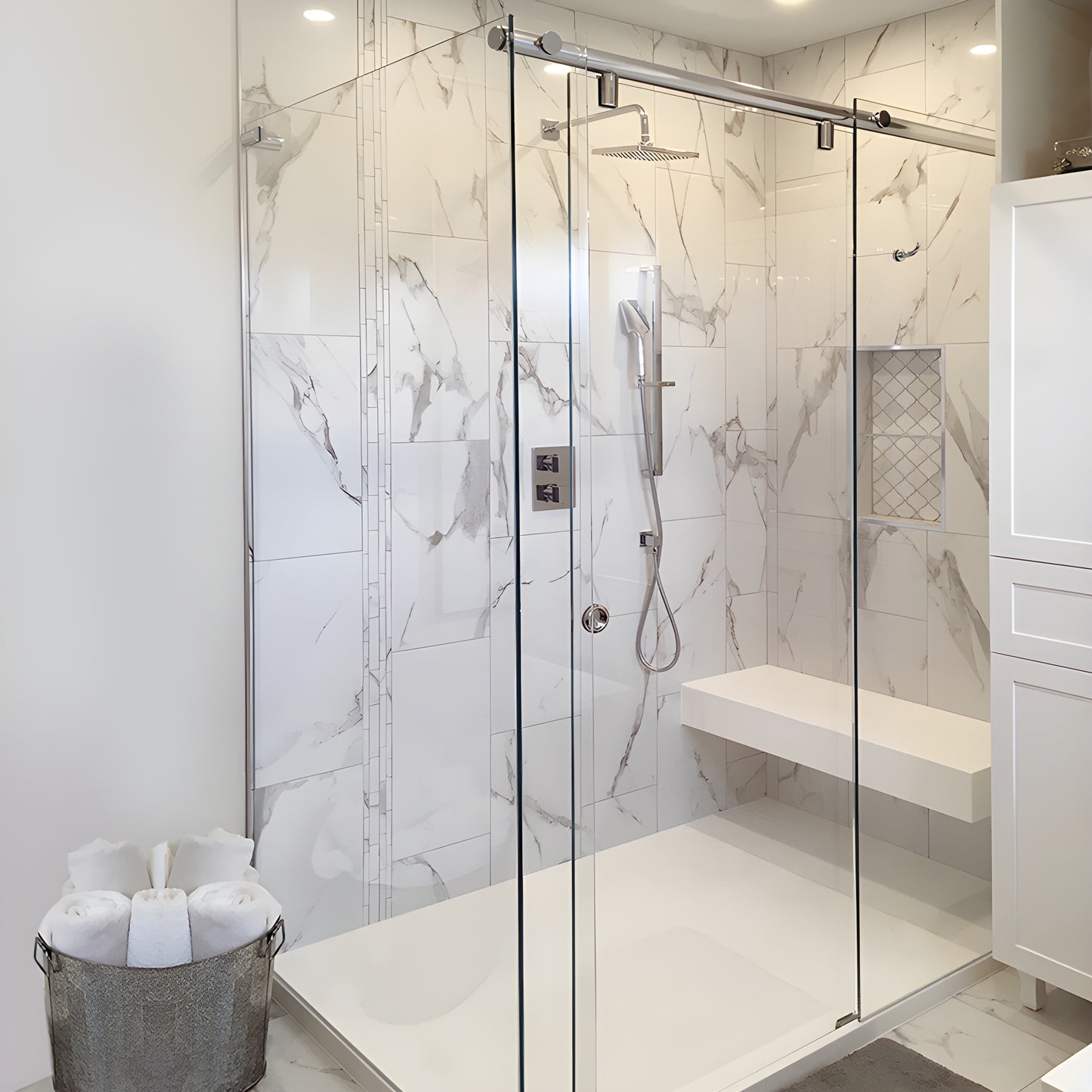

CRL Hydroslide 60" Sliding Shower Door Kit – Sleek 180° Frameless Design

Upgrade your bathroom with the CRL Hydroslide 60" Sliding Shower Door Kit, engineered for a modern, minimalist look. Perfect for compact spaces, this kit features clean, sleek lines and a frameless glass design that adds a luxurious feel to any shower or tub area.

Key Features:

• Designed for 5/16" to 3/8" (8 to 10 mm) monolithic tempered glass
• 180° wall-to-wall installation: One fixed panel and one sliding door
• Available in four elegant stock finishes; custom finishes also available
• Custom-sized units available by special order
• Ideal for standing showers or over-bathtub enclosures

European-Style All-Glass Aesthetic
The Hydroslide system delivers a premium European design with the all-glass aesthetic that enhances any modern bathroom. It supports configurations with fixed glass panels on either side, or both sides at 90° or 180° angles.

Flexible Installation Options:
Available in 60" (1.52 m) and 84" (2.13 m) widths. The track can be cut to your custom width, and door height is adjustable—just ensure the sliding glass panel weighs under 88 lbs. (40 kg).

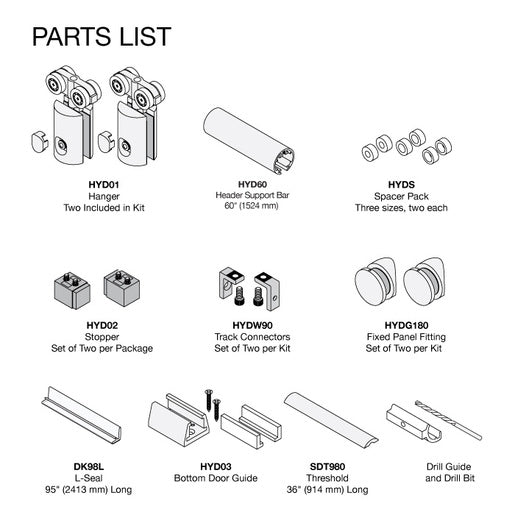

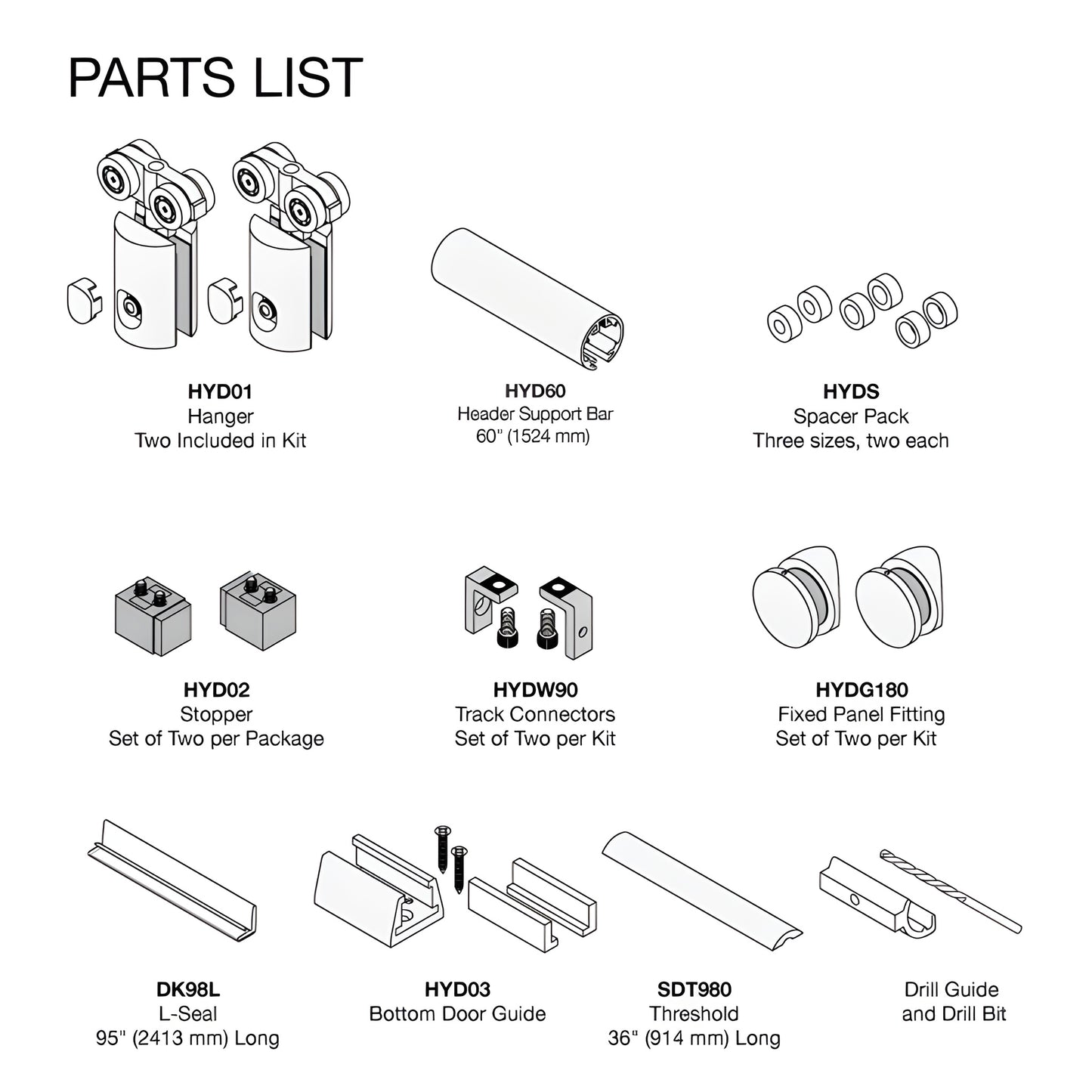

What’s Included in the 60" 180° Kit:

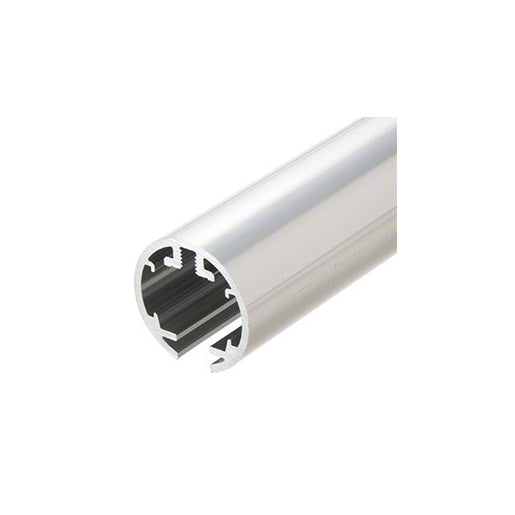

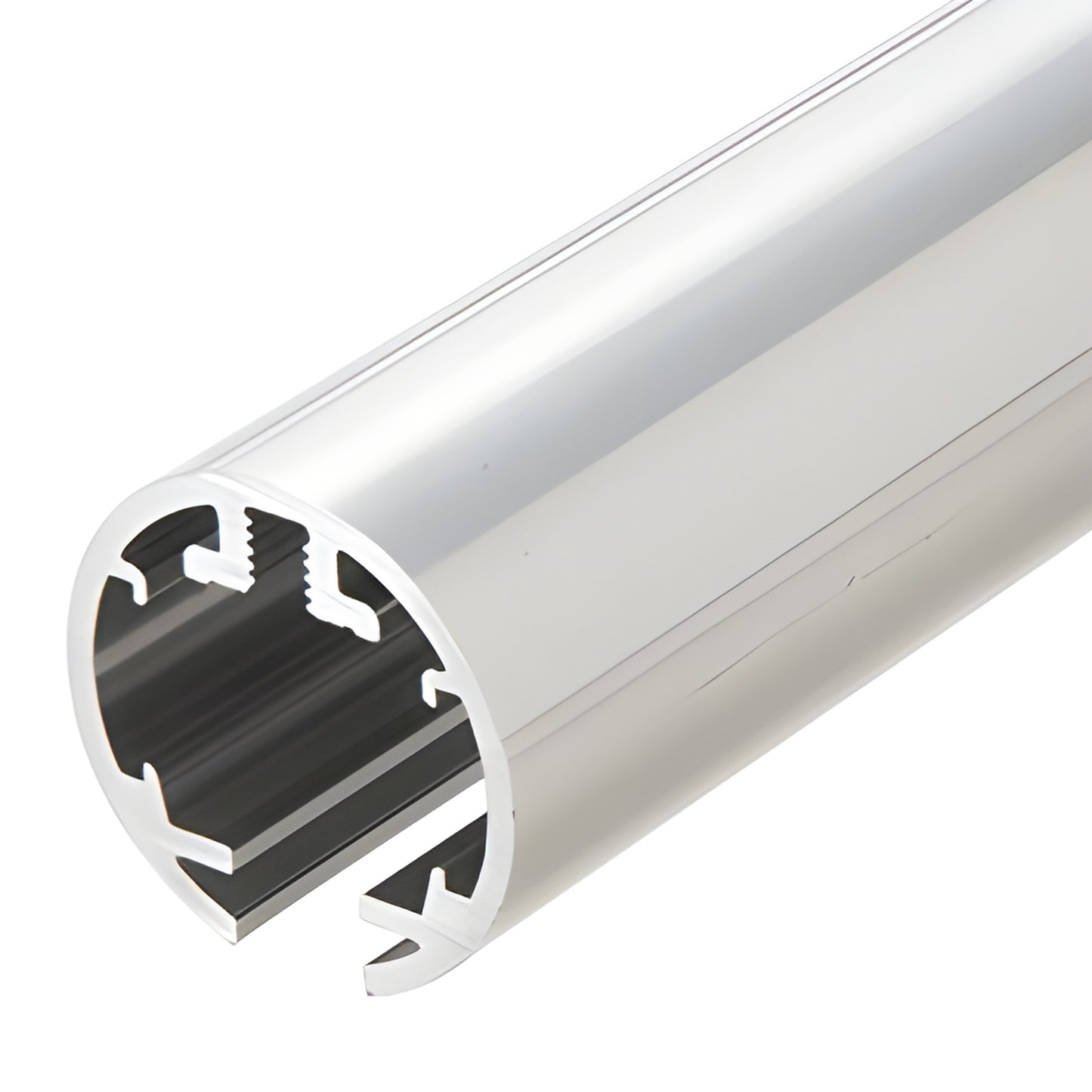

• 1 Sliding Glass Door Upper Track

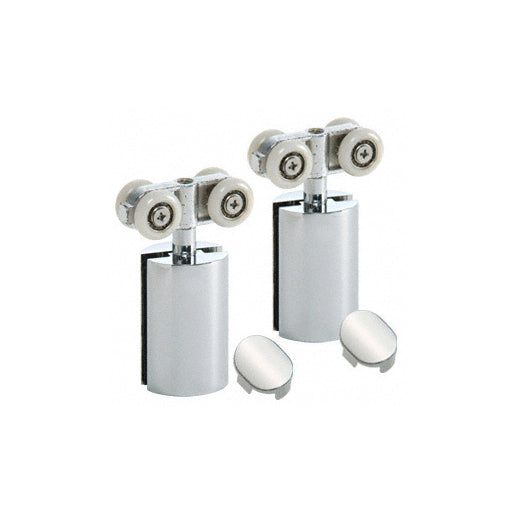

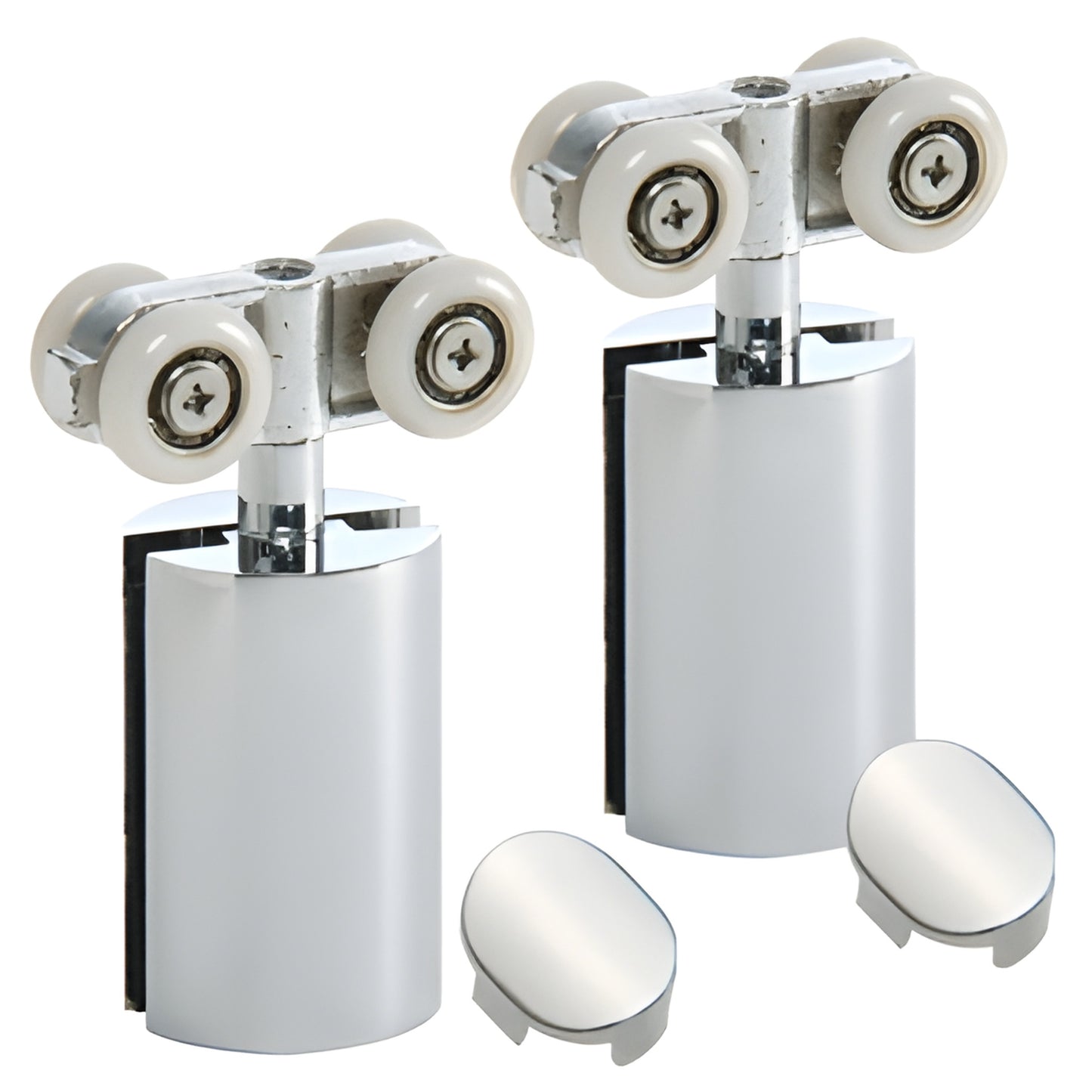

• 2 Hangers and Rollers for Sliding Door

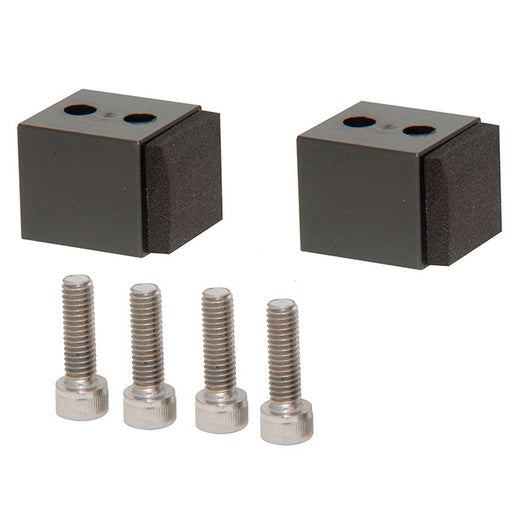

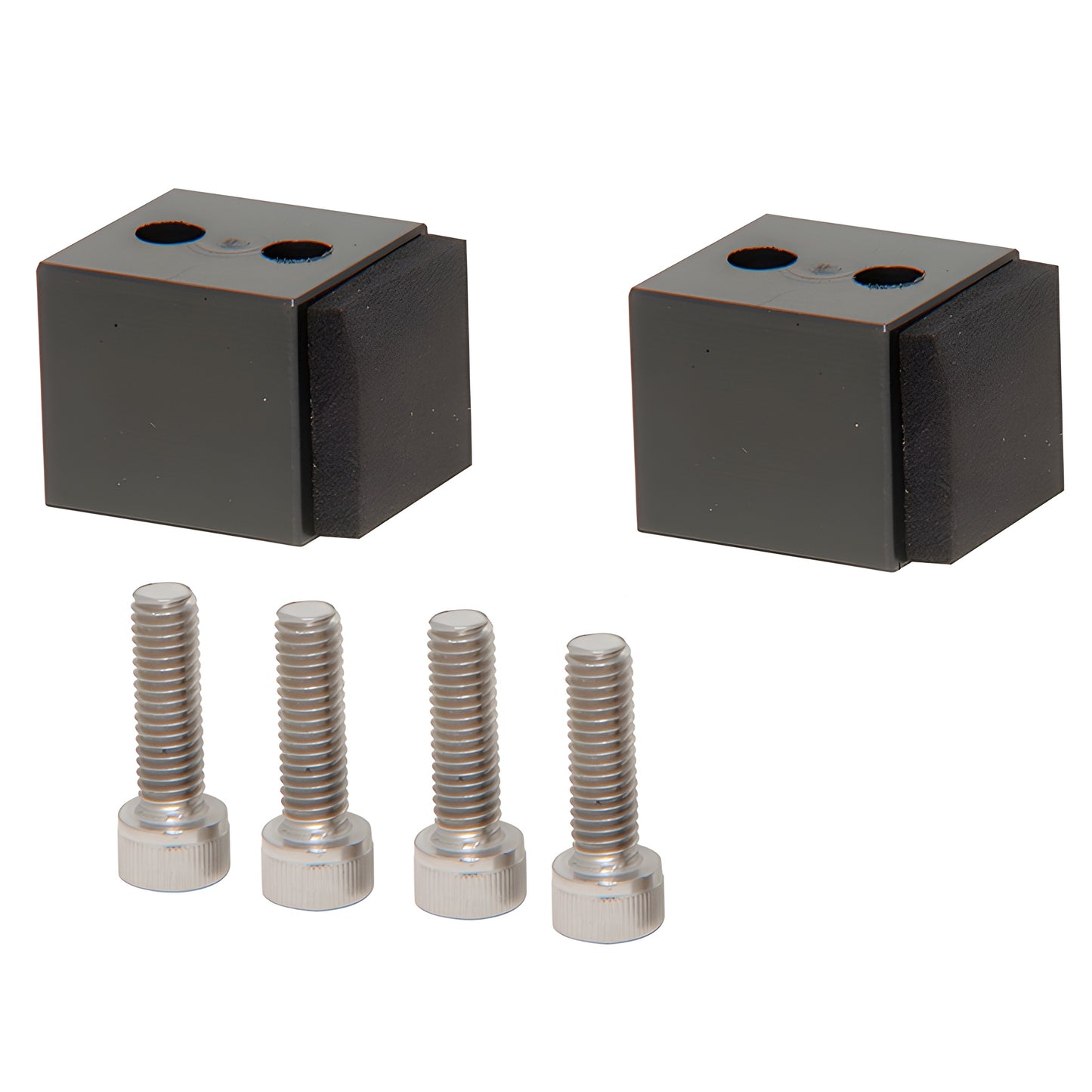

• 2 Roller Stops

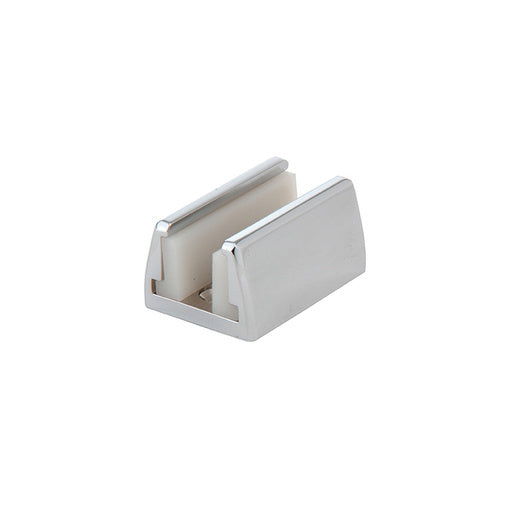

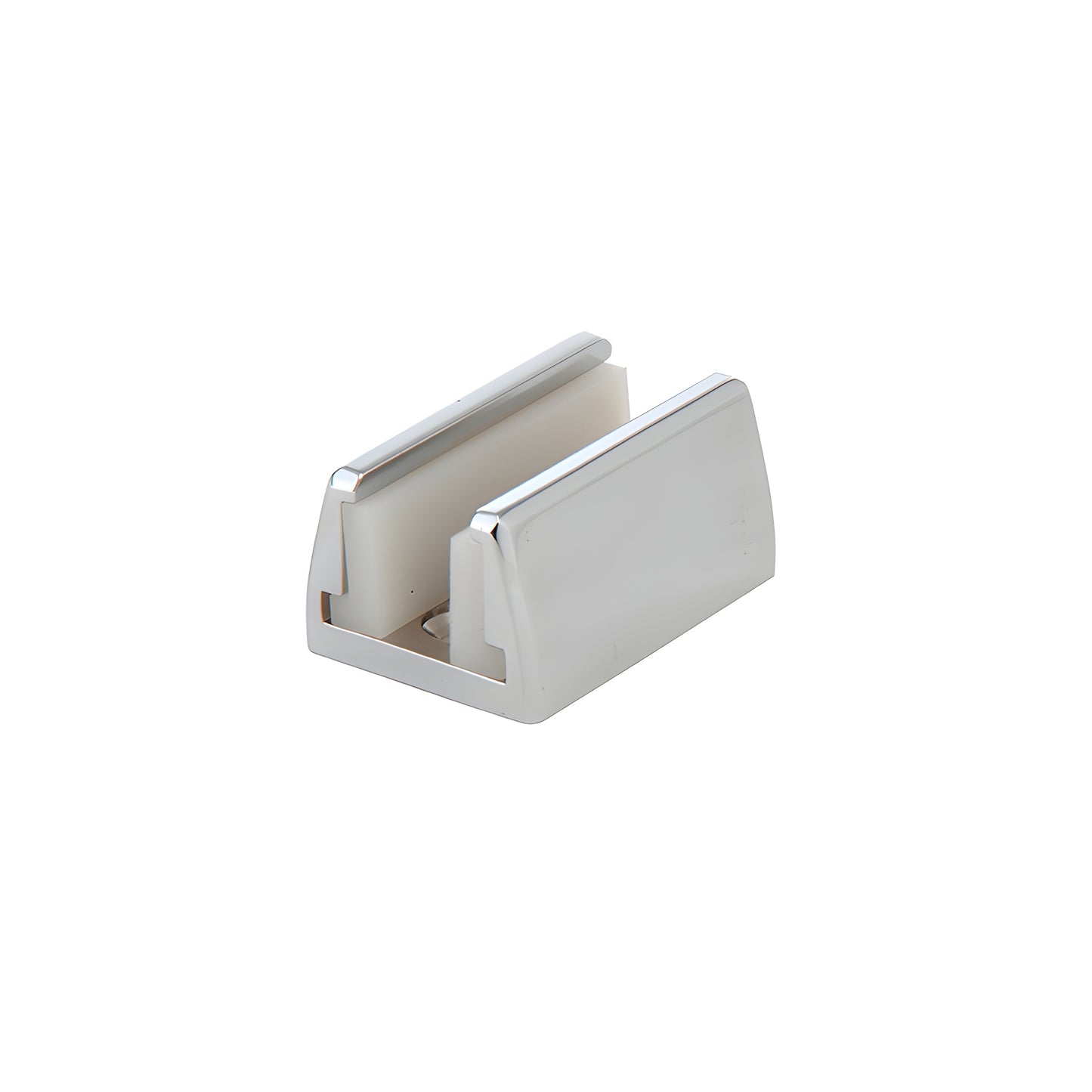

• 1 Floor Guide (HYD03)

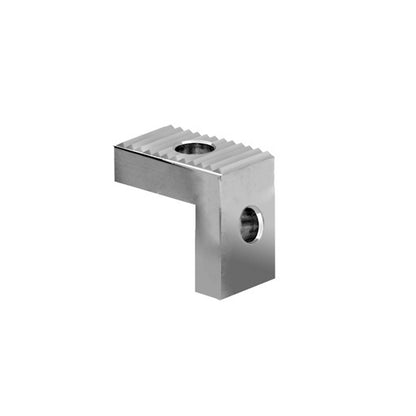

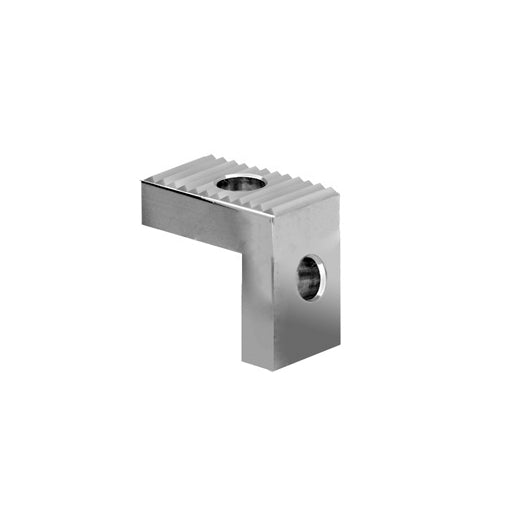

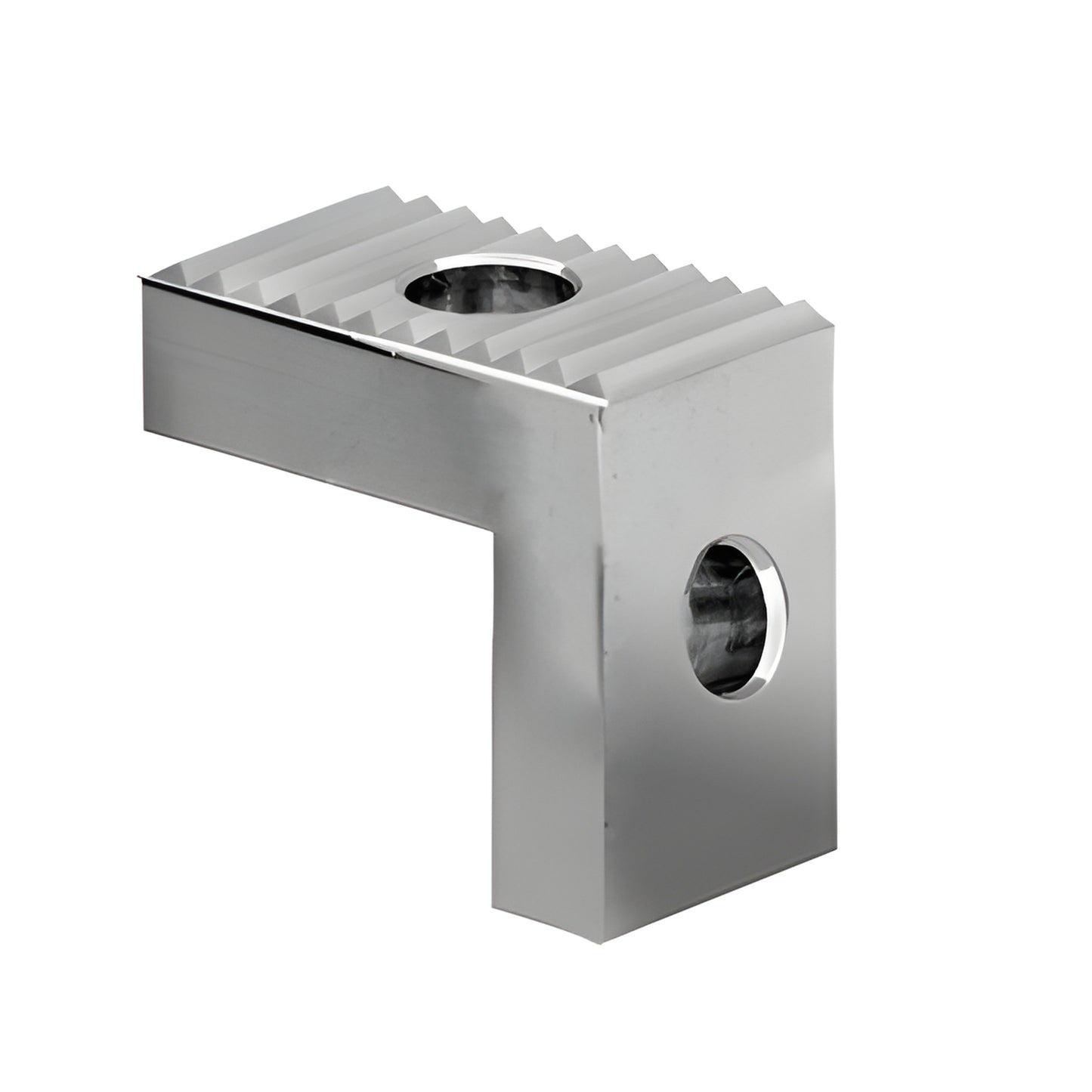

• 2 90° Wall-to-Track Connectors

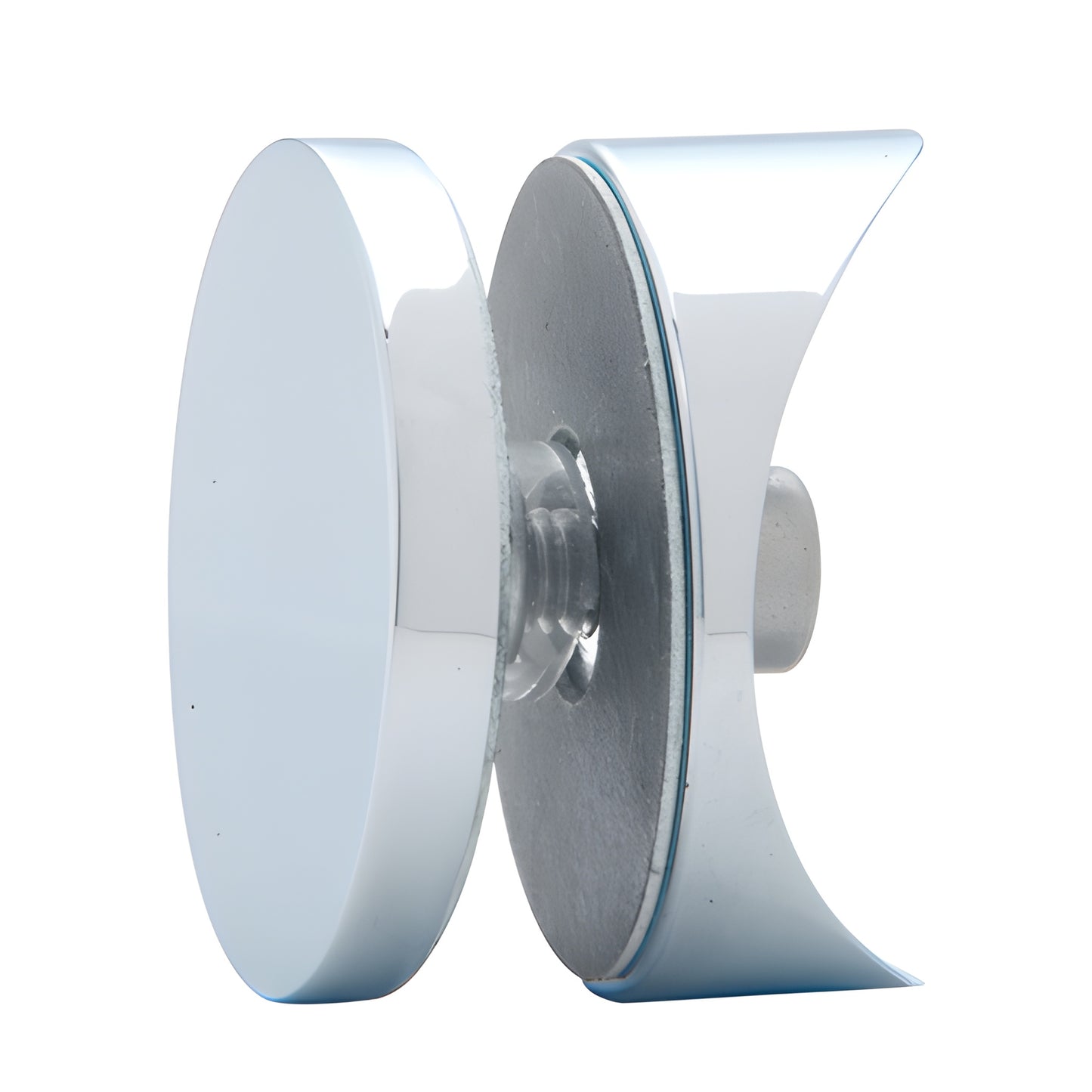

• 2 180° Glass-to-Track Connectors
• 1 36" (.91 m) Half-Round Threshold (SDT980)

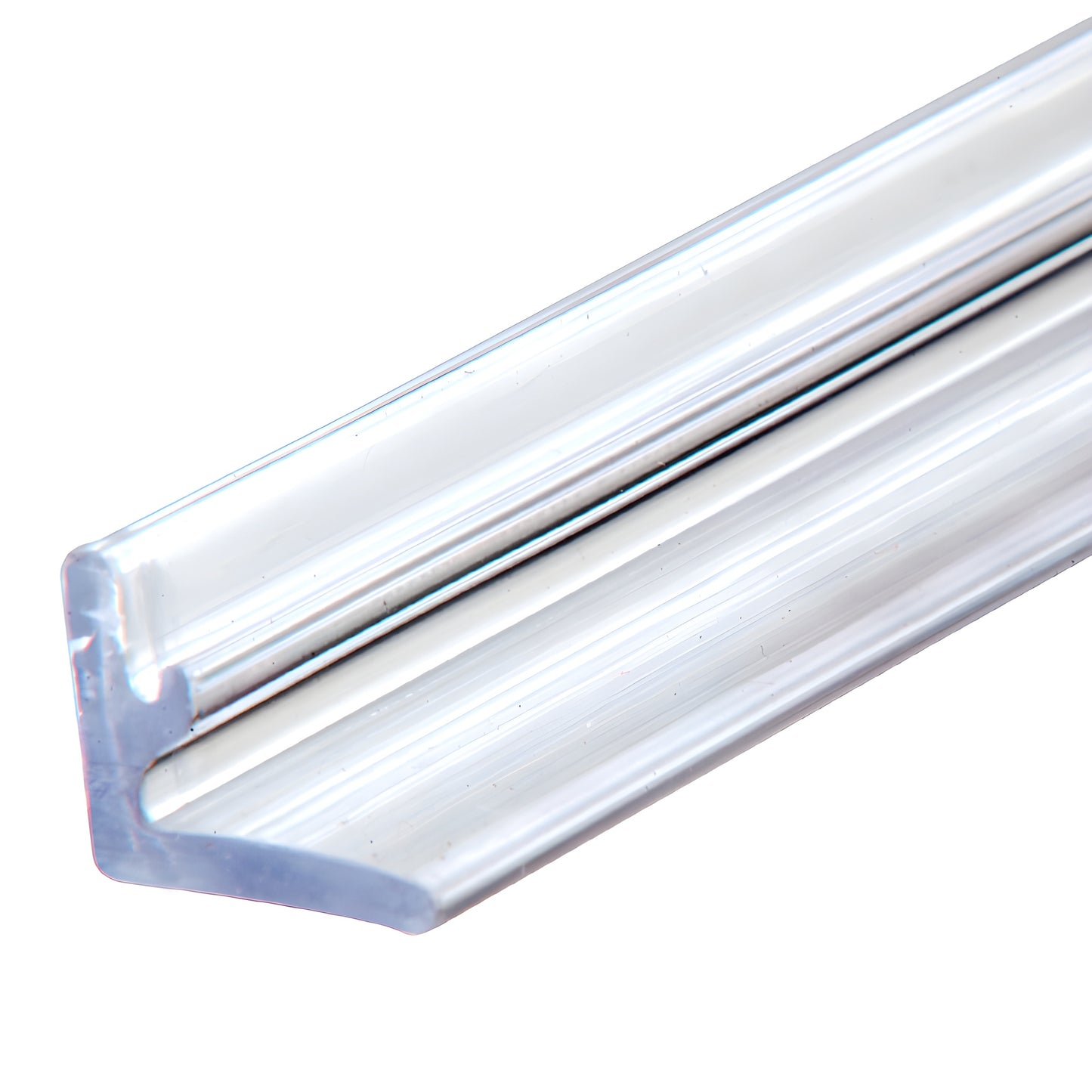

• 1 95" (2.41 m) DK98L L-Seal for Wall

Brochures & Literature

Frameless Shower Door Hardware Catalog

Installation Instructions

Hydroslide Series Sliding Door Kit HYDK60 HYDK84 Installation Instructions

Cleaning & Maintenance

Frameless Shower Door Glass and Hardware Cleaning Instructions
