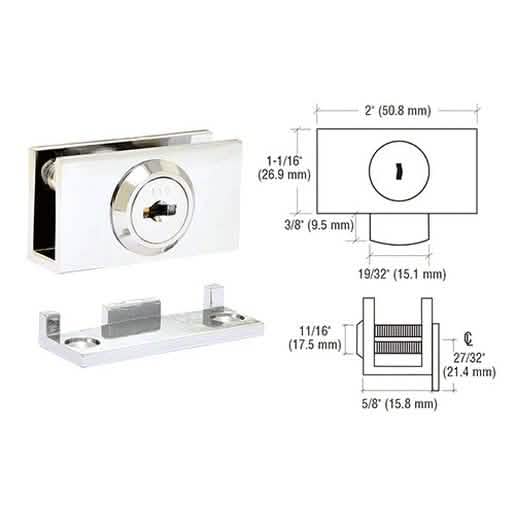

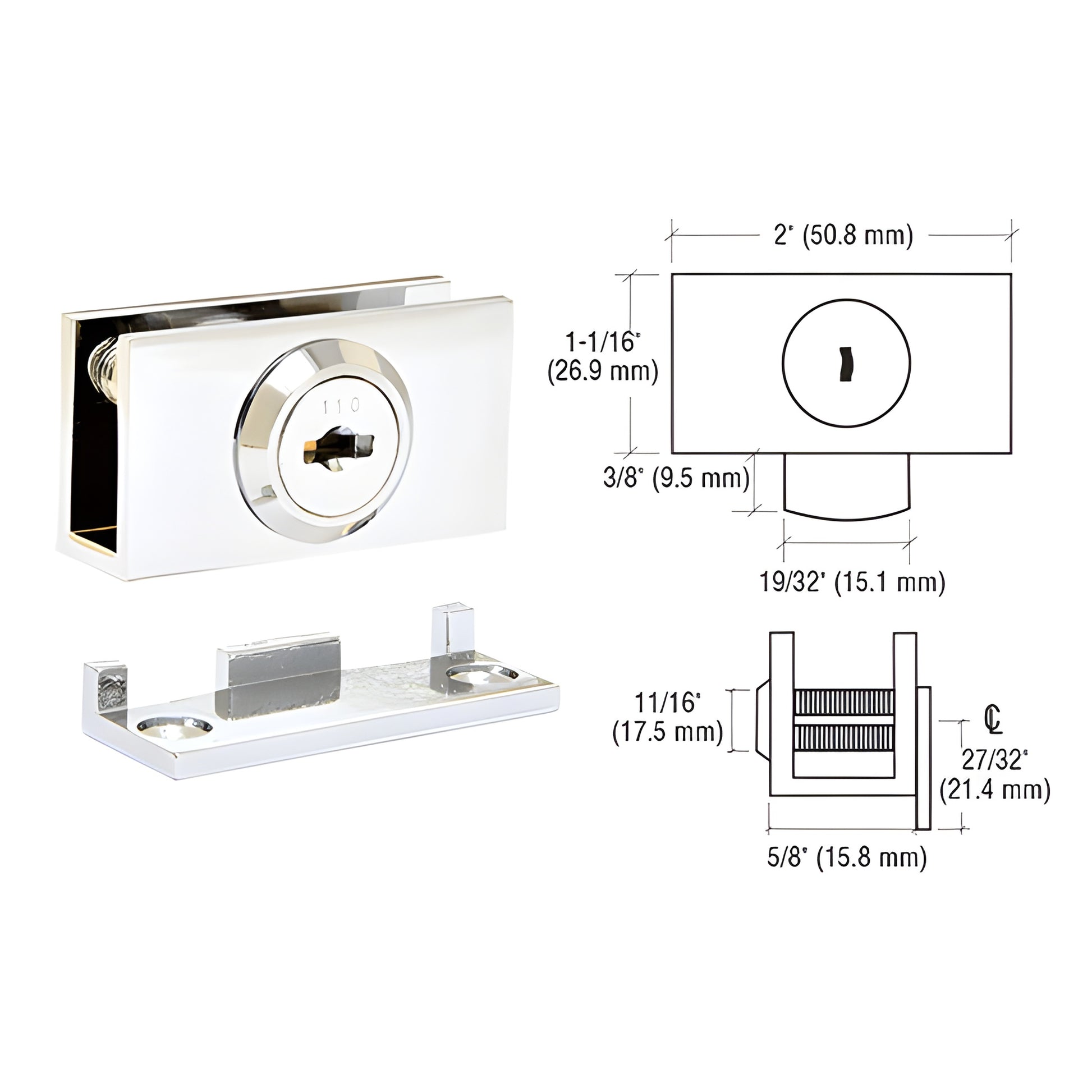

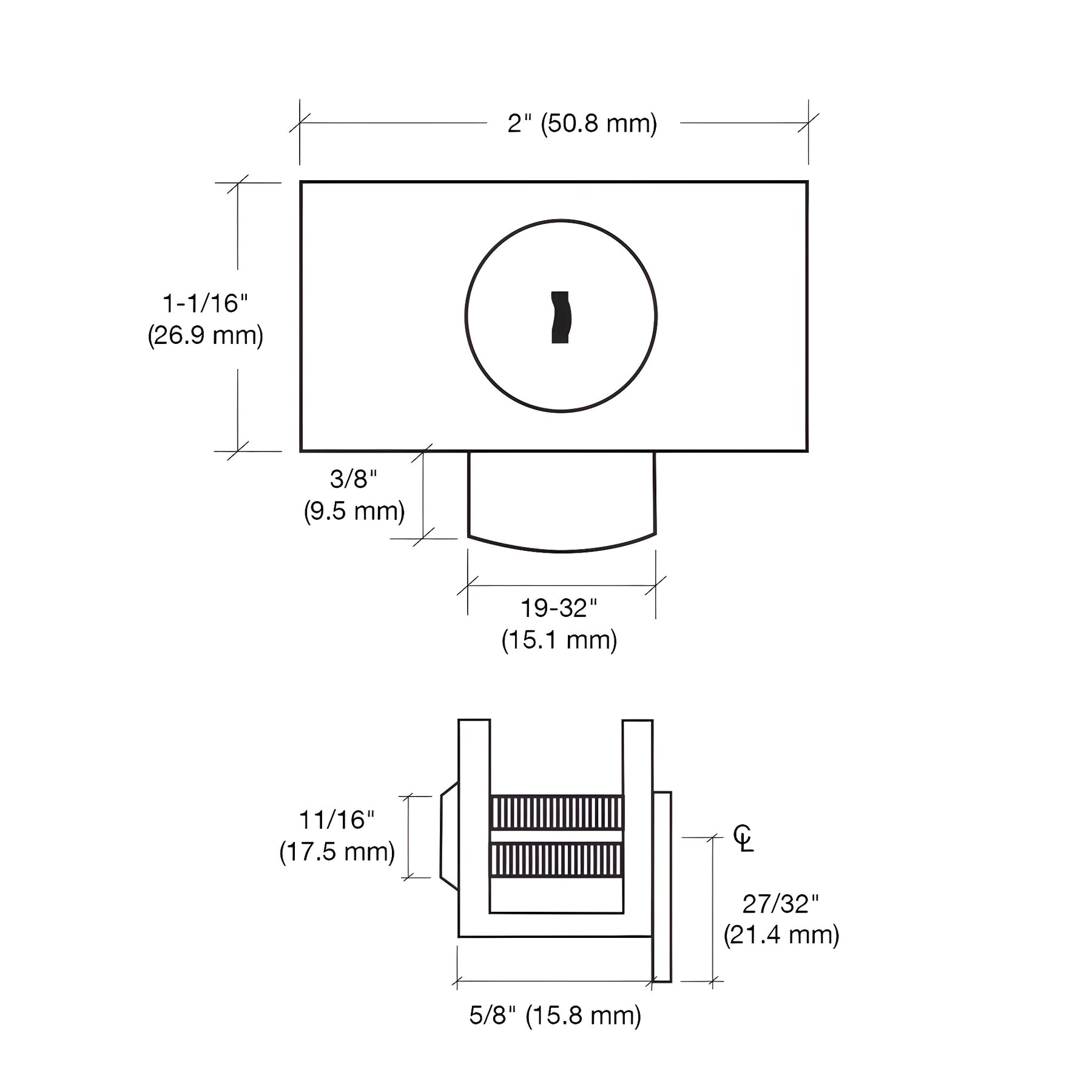

• EH98 polished chrome cam lock for 1/4" or 3/8" glass showcases with matching strike plate and dimension diagram
1 1

CRL

CRL Chrome Cam Lock for 1/4 or 3/8 in Glass Door, Randomly Keyed

CRL Chrome Cam Lock for 1/4 or 3/8 in Glass Door, Randomly Keyed

$29.00 CAD
$29.00 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# EH98
Shipping Weight: 3.373 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Chrome
Keyed
Random
Material
Aluminum

Overview

  • For 1/4" or 3/8" (6 to 10 mm) thick glass
  • Designed for glass showcases and display cabinets
  • Available in Chrome or Brass finishes

CRL Cam Locks (SKU: EH98) are precision cam locks for glass showcase doors, compatible with 1/4" or 3/8" (6 or 9.5 mm) thick glass. Secure fastening is achieved with two plastic‑tipped screws; gaskets and a notch template are included for accurate installation. The key is removable in both locked and unlocked positions. A matching stop plate is supplied in the same finish as the lock. A door cut-out is required for installation — use the included template for glass fabrication.

Product Warning:

The inside channel dimension of this lock is .397" (10.08 mm). If installing on 10 mm thick glass, measure the glass thickness prior to any glass fabrication.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.


Order the EH98 glass showcase cam lock in Chrome or Brass for secure, dependable display door protection.
