CRL Chrome Double Glass Shelf Support

• For Supporting Adjacent Tempered Glass Shelves with Center Support Panel
• Available in Three Finishes
• Rubber Rings Cushion Glass

This

CRL Double Glass Shelf Support

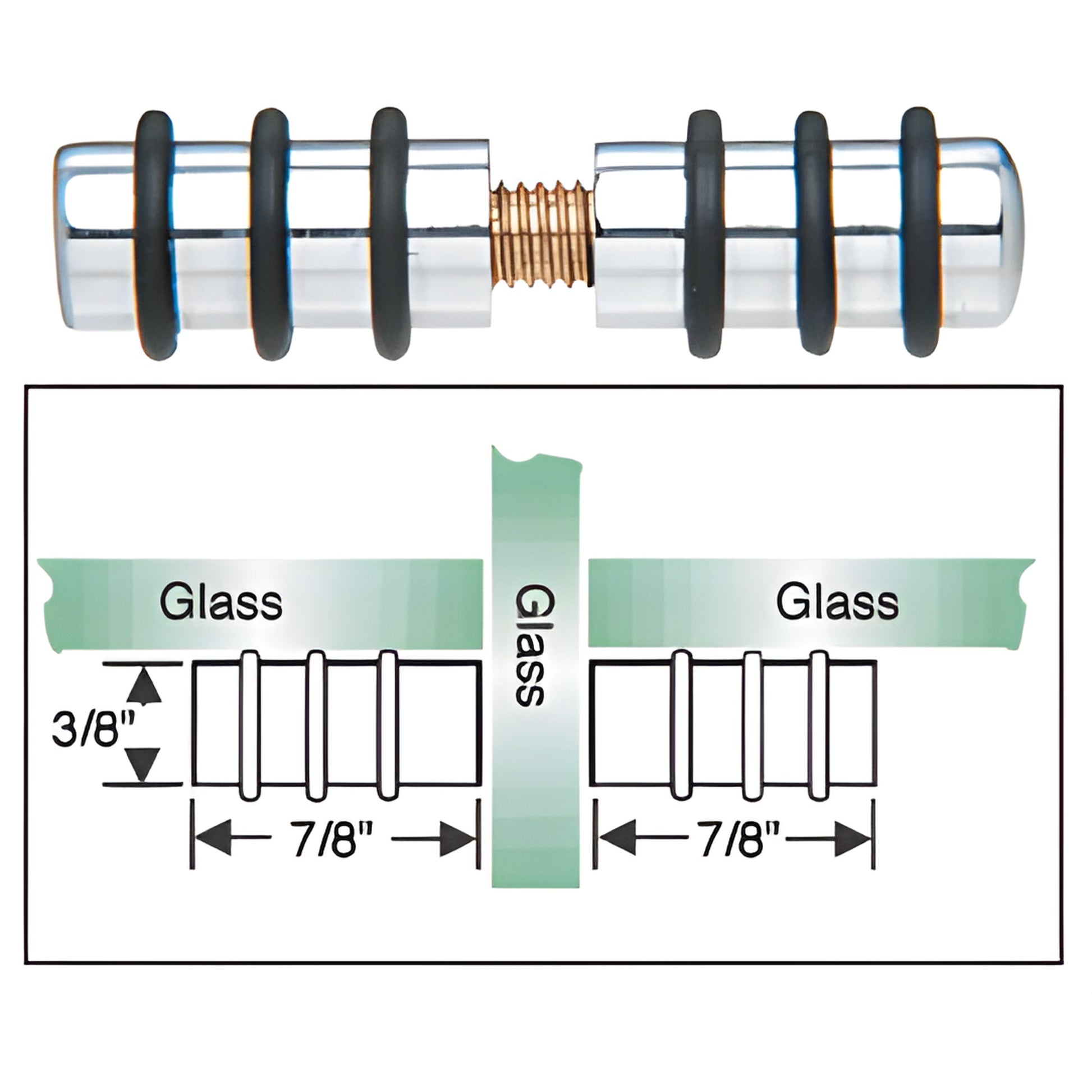

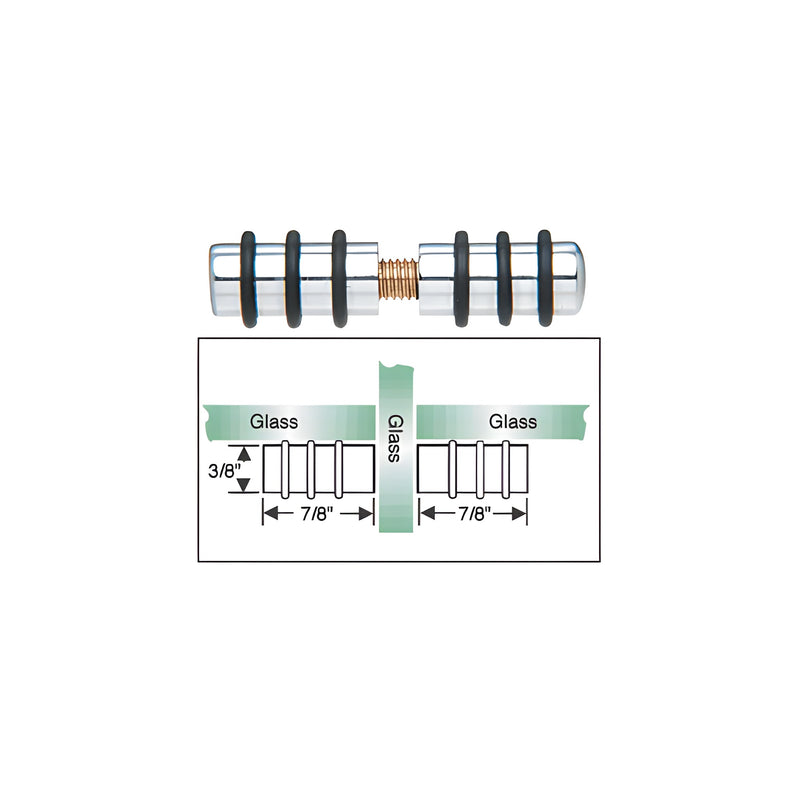

is ideal for use in cabinets or displays that have side-by-side glass, acrylic or wood shelves. Two 7/8" (22 mm) supports are connected by a threaded stud through the center panel. Rubber cushion rings keep shelves firmly in place and prevent slippage. Works with glass substrate thicknesses from 3/16" to 1/4" (5 to 6 mm). The included 1/4"-20 threaded rod may be replaced with longer threaded rods (AS14 Series) for thicker non-glass substrates.

Substrates require a 5/16" (8 mm) diameter thru-hole in order to accept the threaded stud of the Shelf Support.

Intended for use on 3/16" to 1/4" (5 to 6 mm) tempered glass, or metal or wood center panels.

Product Warning

Weight limit: 110 lbs. (50kg) per set of 4

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
