CRL Chrome Edge Grip 3/8-in Glass Clamp
CRL Chrome Edge Grip 3/8-in Glass Clamp
Regular price
$31.78 CAD
Regular price
Sale price
$31.78 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EG38CH
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (31.8 mm)
Finish/Color
Polished Chrome
Glazing Thickness
3/8 in. (10 mm)
Height
1-1/8 in. (28.6 mm)
Material
Brass
Overview
- For 3/8" (10 mm) material thickness
- No drilling required in glass or panel faces
- Works on corners and edges of panels
- Supplied with an EGCS socket head cap screw
CRL Edge Grips provide a no-drill mounting solution for decorative panels and signage, allowing quick installation and easy adjustment without penetrating the panel face. The 1-1/4" (32 mm) diameter Edge Grips are offered in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes and are compatible with CRL standoffs—making them an ideal choice for secure, finished-edge panel mounting. For heavier panels, use Edge Grips at the top, bottom, and sides for maximum support.
NOTE: To attach an Edge Grip directly to a substrate, use Cat. No. 12X112PHPSMS (No. 12 x 1-1/2" pan head Phillips sheet metal screw). Screws should be fastened into wood blocking where possible. Edge Grips are recommended for rectangular or square panels only.

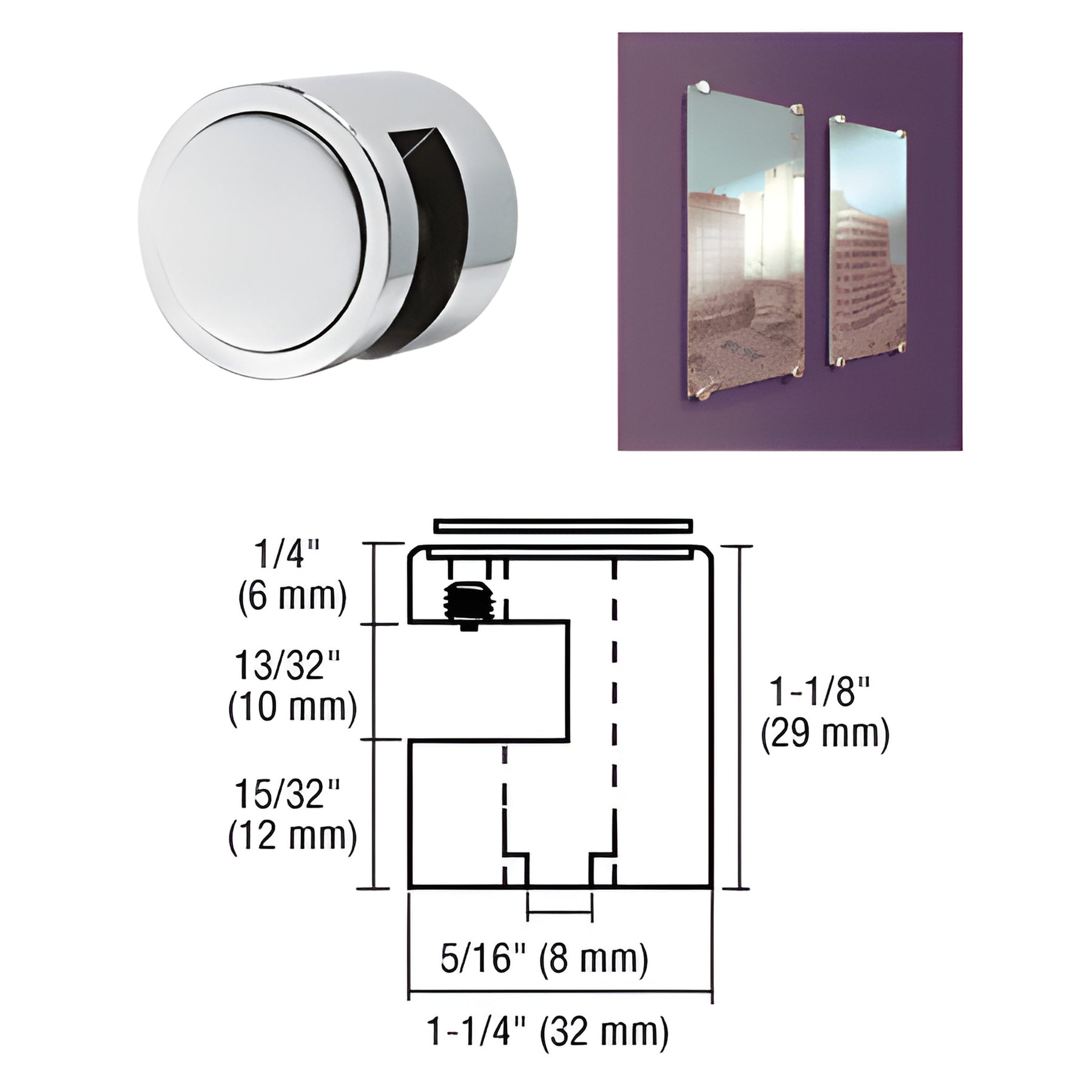

Edge Grip Specs:
Diameter: 1-1/4" (32 mm)
EG14BS Length: 1-1/16" (27 mm)
EG38 Length: 1-1/8" (28.6 mm)
EG12 Length: 1-3/16" (30.1 mm)
Replacement cover disks are available for repair or replacement.
Product Warning:
CRL Edge Grips should be installed at the top, bottom, and sides of heavier panels for maximum support.
SKU: EG38CH
Choose CRL Edge Grips for a clean, no-drill panel mounting solution—order now to get the finish and fit you need.
