CRL Chrome Frameless Triple Mirror Hinge for Glass Doors
CRL Chrome Frameless Triple Mirror Hinge for Glass Doors
Regular price
$216.95 CAD
Regular price
Sale price
$216.95 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH66
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)

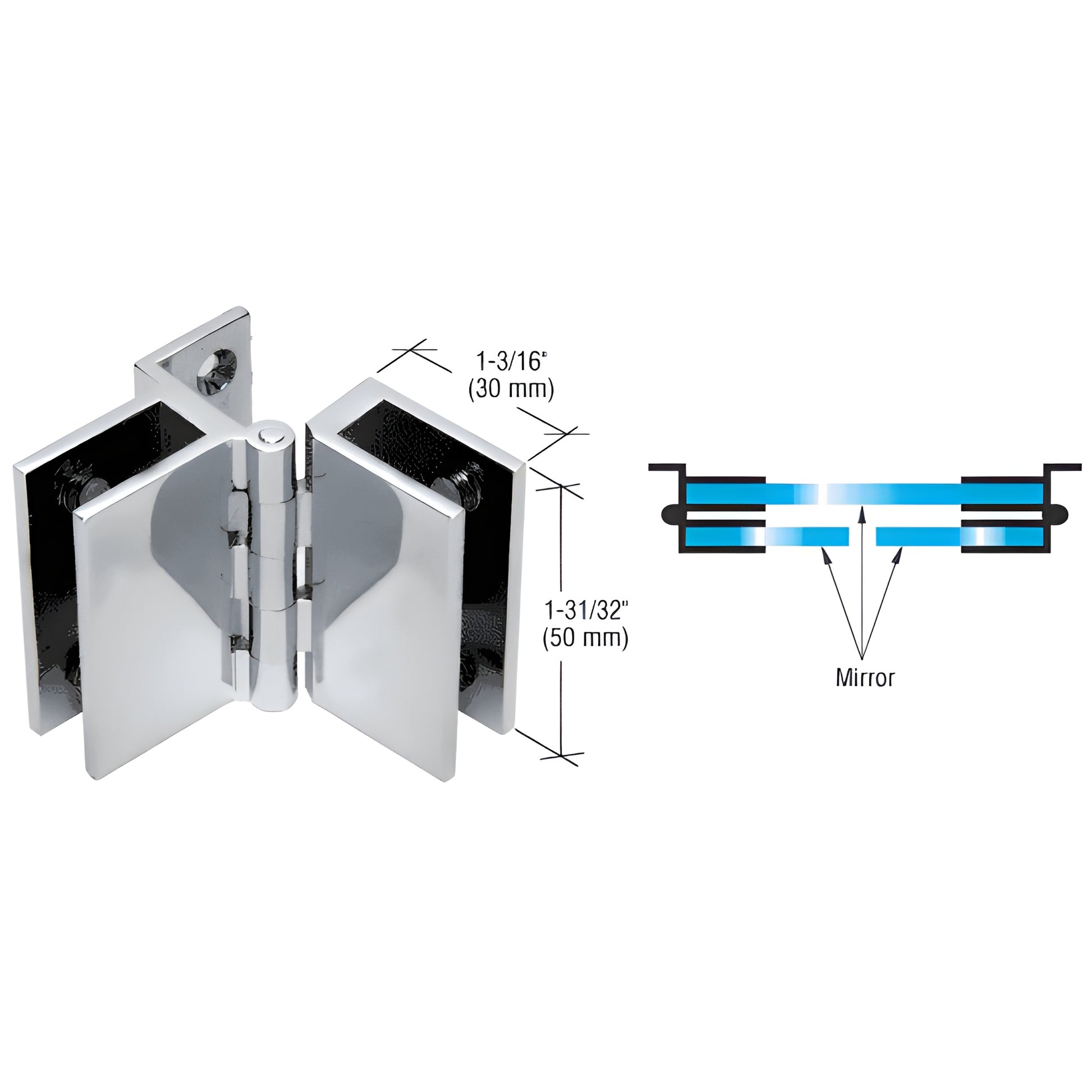

Height
1-31/32 in. (50 mm)
Material
Brass
Pack Quantity
4
Width
1-3/16 in. (30.2 mm)
Overview
- For 1/4" to 5/16" (6 to 8 mm) glass
- Secures mirror with plastic-tipped set screws
- Package contains four hinges — enough for one complete frameless triple mirror frame
NOTE: CRL strongly recommends using Cat. No. 2MT Safety Backing Tape over the entire rear surface of all mirrors installed with these hinges.
Maximum panel size to be used with this hinge:
- 5/16" (8 mm) glass:
- Wings: 51-3/16" (1.30 m) H x 17-3/4" (450 mm) W
- Center: 51-3/16" (1.30 m) H x 31-1/2" (800 mm) W
- 1/4" (6 mm) glass:
- Wings: 59-1/16" (1.50 m) H x 19-1/16" (485 mm) W
- Center: 59-1/16" (1.50 m) H x 35-7/16" (900 mm) W
SKU: EH66
Order CRL Frameless Triple Mirror Hinges (EH66) today to complete your wall-mounted, frameless mirror installation.
