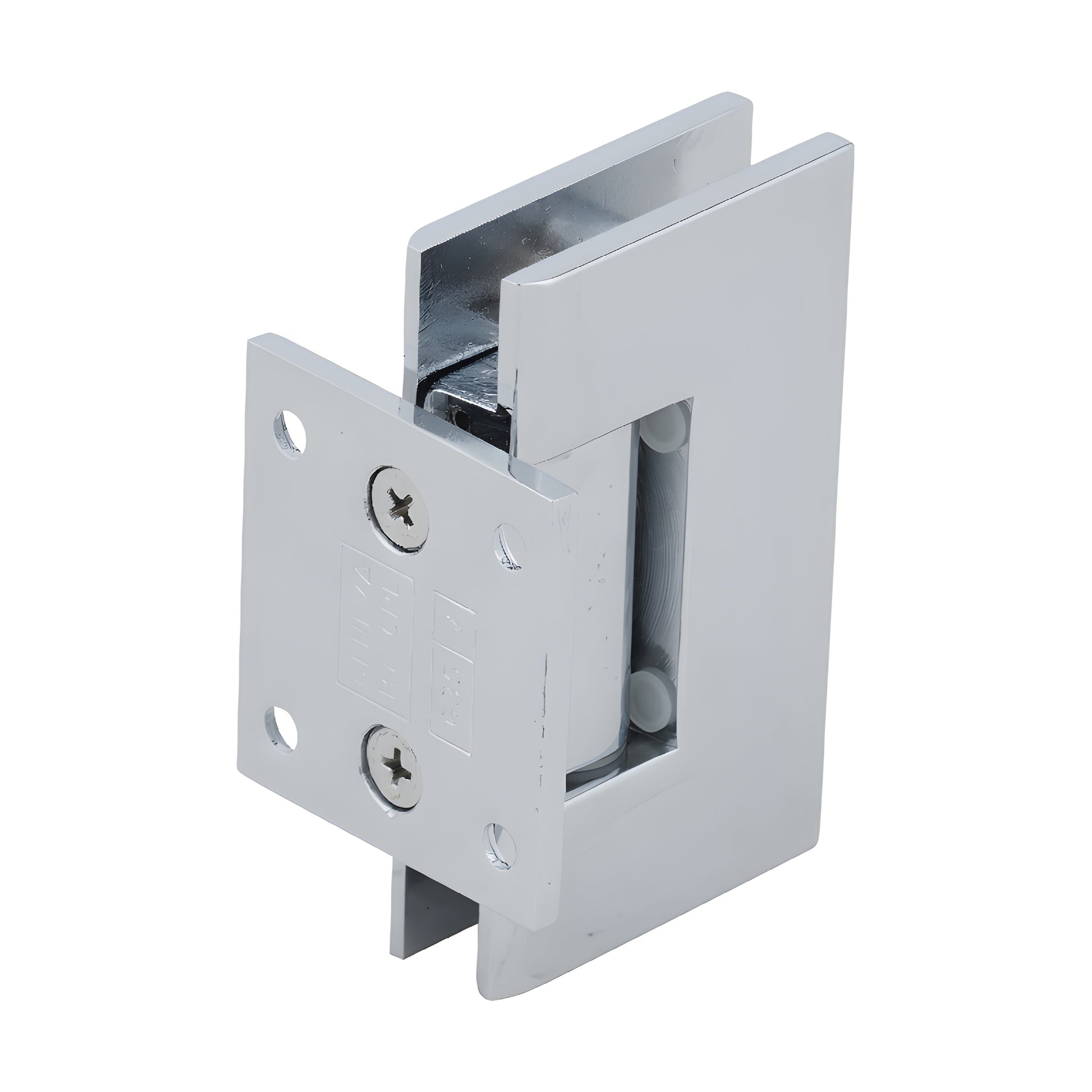

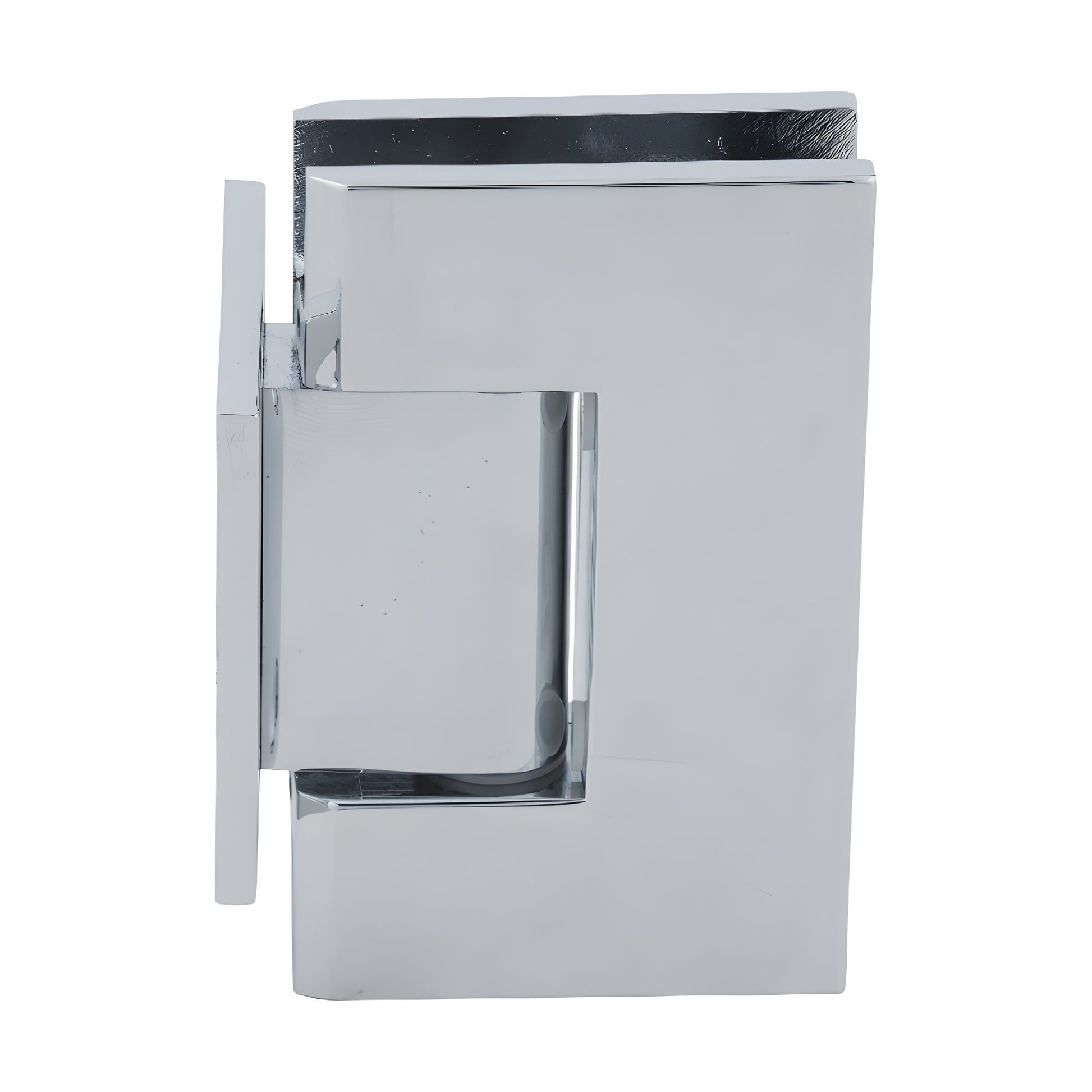

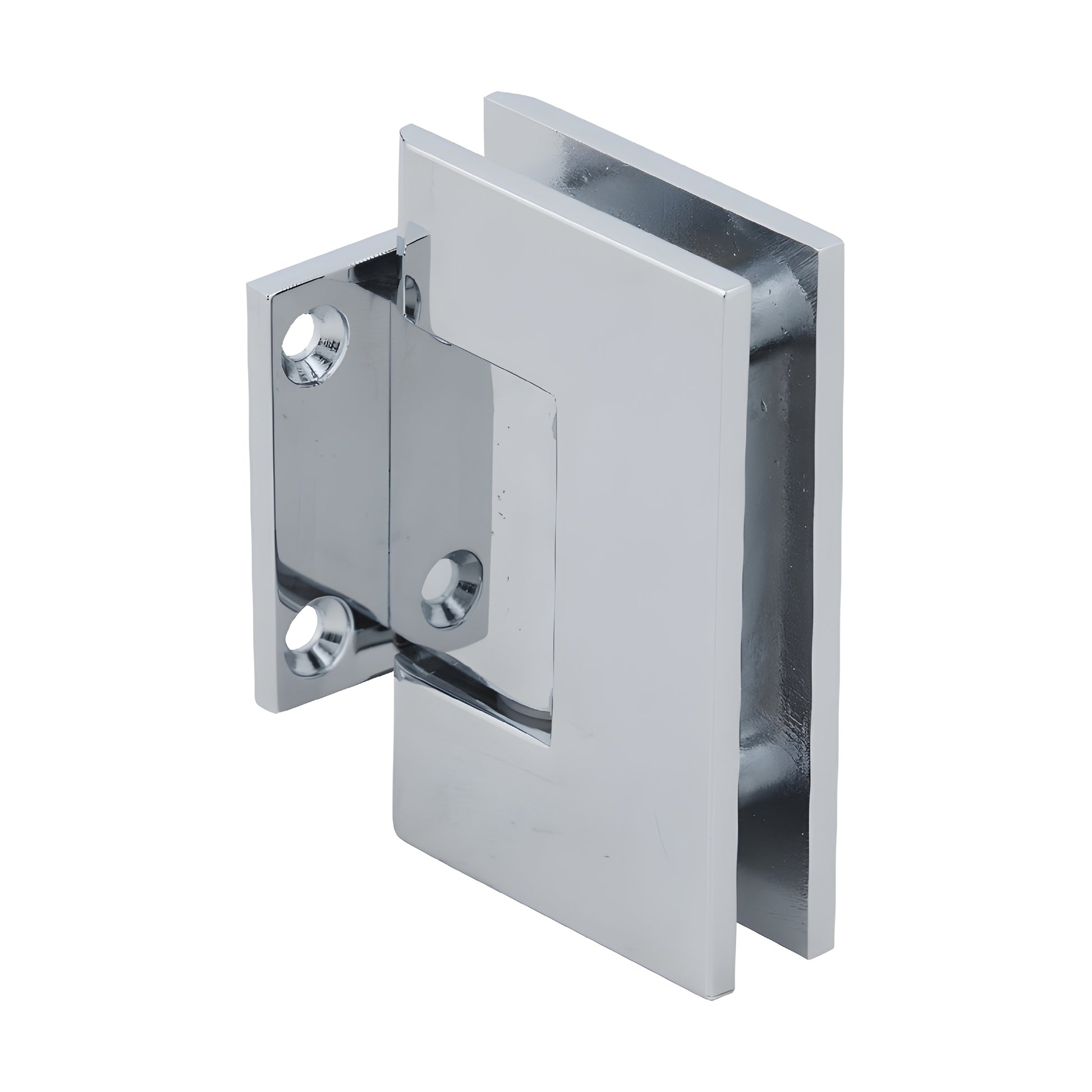

CRL Geneva Chrome 5° Preset Wall-Mount Short Back Plate Hinge

• Self-Centering hinge with Reversible 5° Pivot Pin
• Available in several durable finishes
• Three-year warranty
• Wall-mount full back plate standard (factory set for standard closing position)
• For use with monolithic tempered safety glass

The CRL Geneva Series glass shower door hinges (SKU: GEN574CH) fit 5/16" (8 mm) to 1/2" (12 mm) tempered glass and are engineered for residential and hotel glass shower doors. Six styles provide design flexibility—three wall-mount and three glass-to-glass—while solid brass construction and stainless steel pins/springs ensure long-lasting corrosion resistance and smooth operation.

Key differentiators:

• Reversible 5° pivot pin for adjustable closing behavior—standard side set at 90° (factory), opposite side marked 85° for a 5° tighter closure into the shower interior
• Custom Pivot Pins (Cat. No. GENP1N) available up to 45° for off-angle installations (contact Technical Sales Shower Door Department)
• Specifically designed for glass shower door installations—uses included cut-out template and glass fabrication dimensions

Standard Reversible Pivot Pin: Rotate the pivot pin (not flip) to switch between the 90° and 85° sides. Offset models ship pre-set to 85° for a tighter closure.

Custom Pivot Pin: If the reversible 5° pin does not achieve the desired closing position, specify a Custom Pivot Pin angle (up to 45°). Using a custom pin can affect glass sizes and enclosure aesthetics—contact our Technical Sales Shower Door Department for guidance.

Capacity:

• Two hinges (8–12 mm glass): holds up to 80 lbs (36 kg), max door width 28" (711 mm)
• Three hinges (8–12 mm glass): holds up to 120 lbs (54 kg), max door width 32" (813 mm)

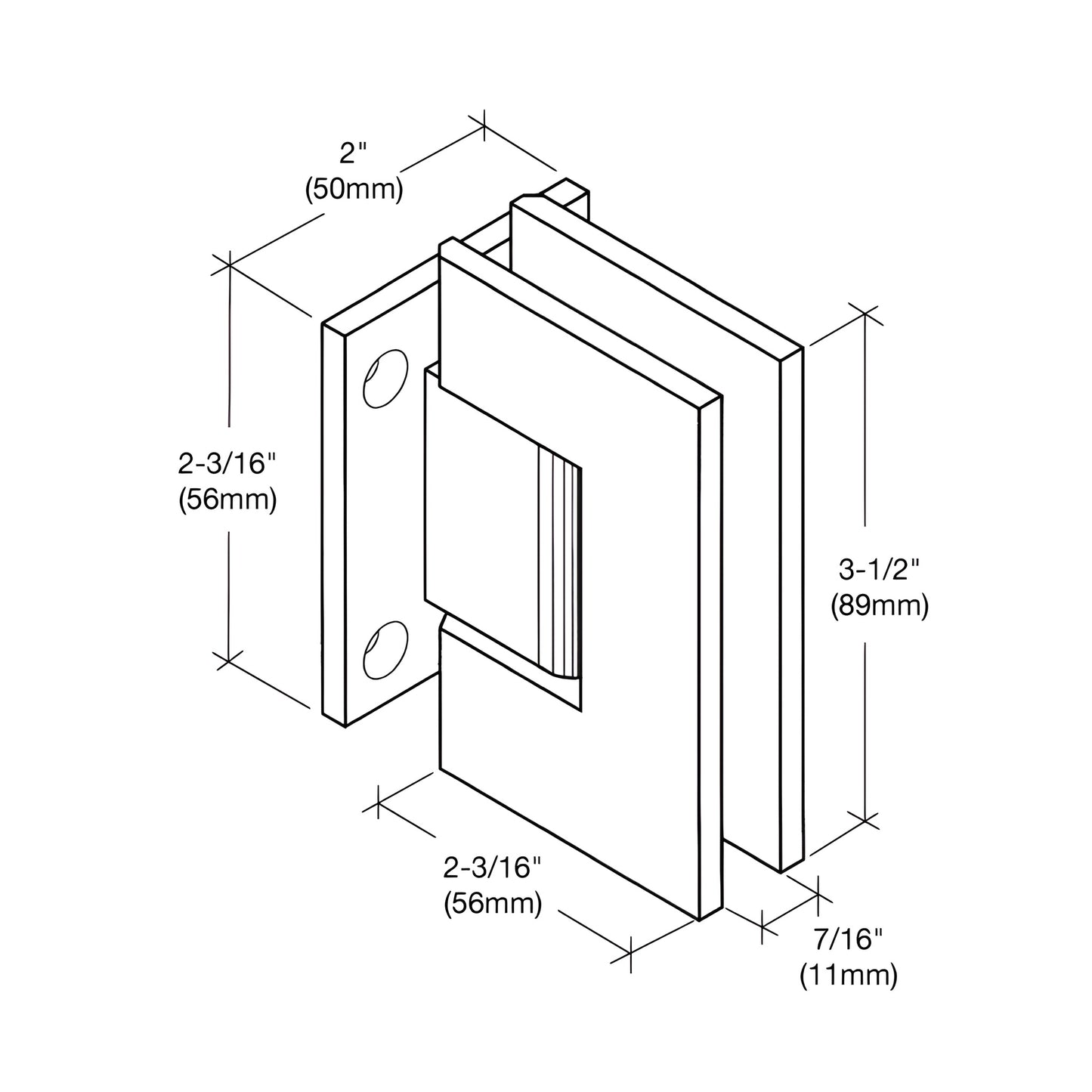

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard Model (0° closing) or 5° Pre-Set Model for tighter closure into shower interior
Construction: Solid Brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use
