CRL

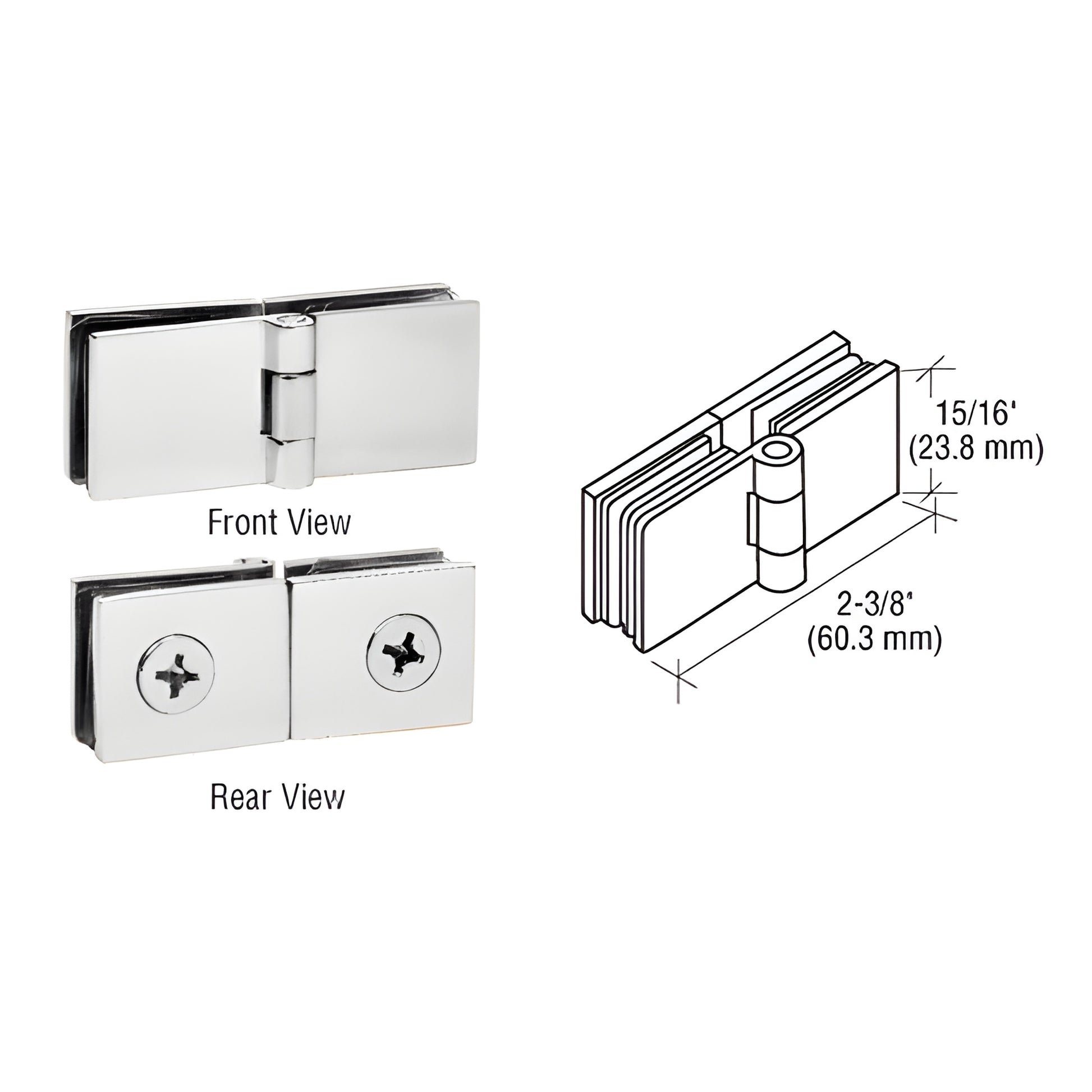

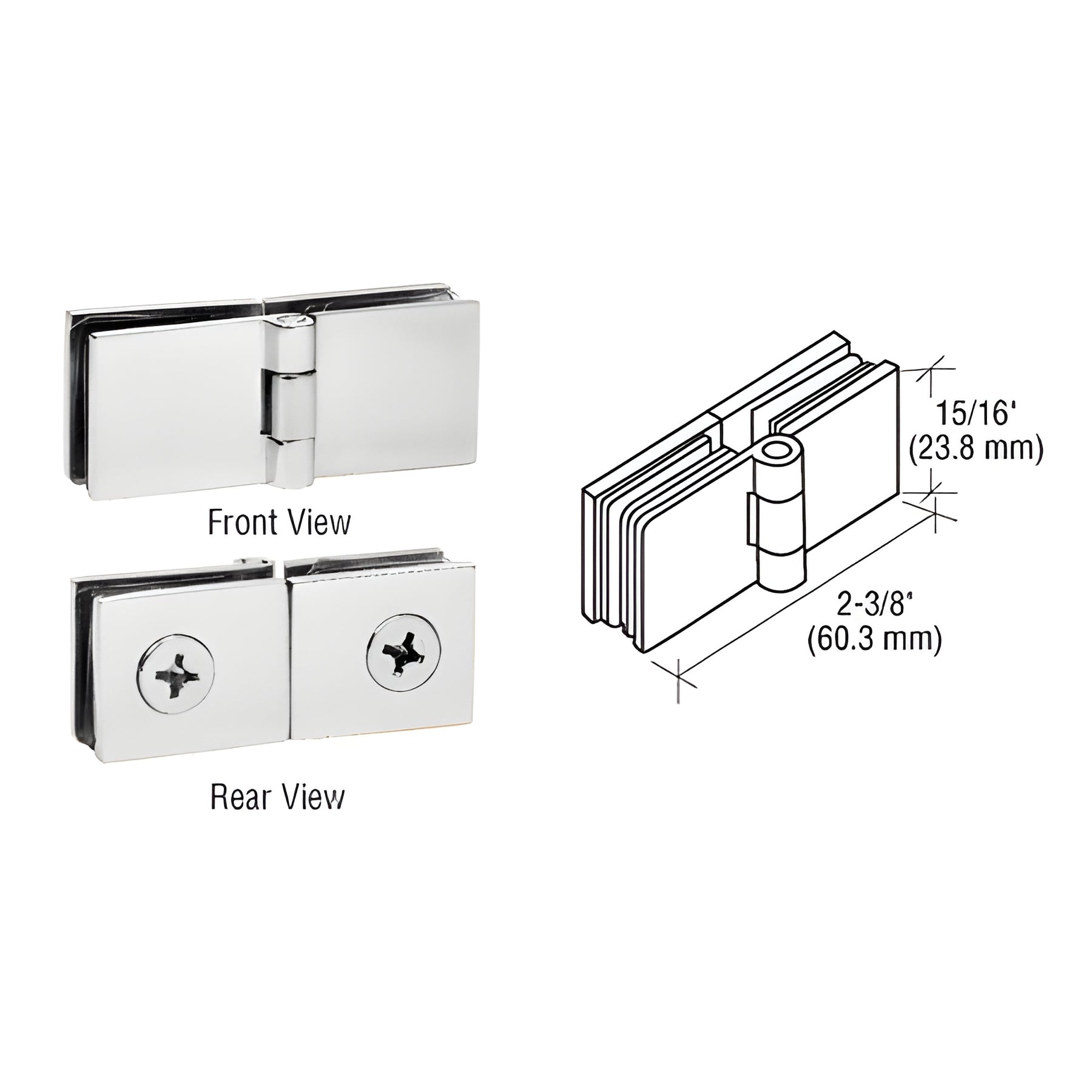

CRL Chrome Glass-to-Glass Inline Hinges for Frameless Shower Doors
CRL Chrome Glass-to-Glass Inline Hinges for Frameless Shower Doors
Regular price
$63.56 CAD
Regular price
Sale price
$63.56 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH250
Shipping Weight: 14.24 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.24 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
15/16 in. (23.8 mm)
Material
Brass
Maximum Door Width
16 in. (406.4 mm)
Open Width
2-3/8 in. (60.3 mm)
Pack Quantity
2
Weight Capacity
20 lbs. (9.1 kg)
Overview
- For 1/4" to 5/16" (6 to 8 mm) glass
- Forged brass construction for durability
- Two 1/2" (12 mm) holes required
For glass-to-glass inline applications, CRL Brass Double Glass-to-Glass 90 Degree Return Hinges (SKU: EH250) feature forged brass construction and a secure screw-attachment system. Clear vinyl pad inserts protect glass edges and reduce wear. Available in polished brass with a lacquered finish or chrome-plated options. Requires two 1/2" (12 mm) holes in the glass for mounting. Maximum recommended door width: 16" (406 mm). Maximum recommended door weight: 20 lbs. (9.1 kg). Two hinges per pack. Ideal for frameless shower doors and glass cabinet returns where a durable, low-profile 90-degree hinge is needed.
Specifications
CAD Drawings - dwg
