- Wall-mount and glass-to-glass models allow door to bi-fold into enclosure
- Used with Hydroslide upper track, one hanger, and upper track connectors (sold separately)
- Available in four finishes to match Hydroslide system hardware
- For use with monolithic tempered safety glass

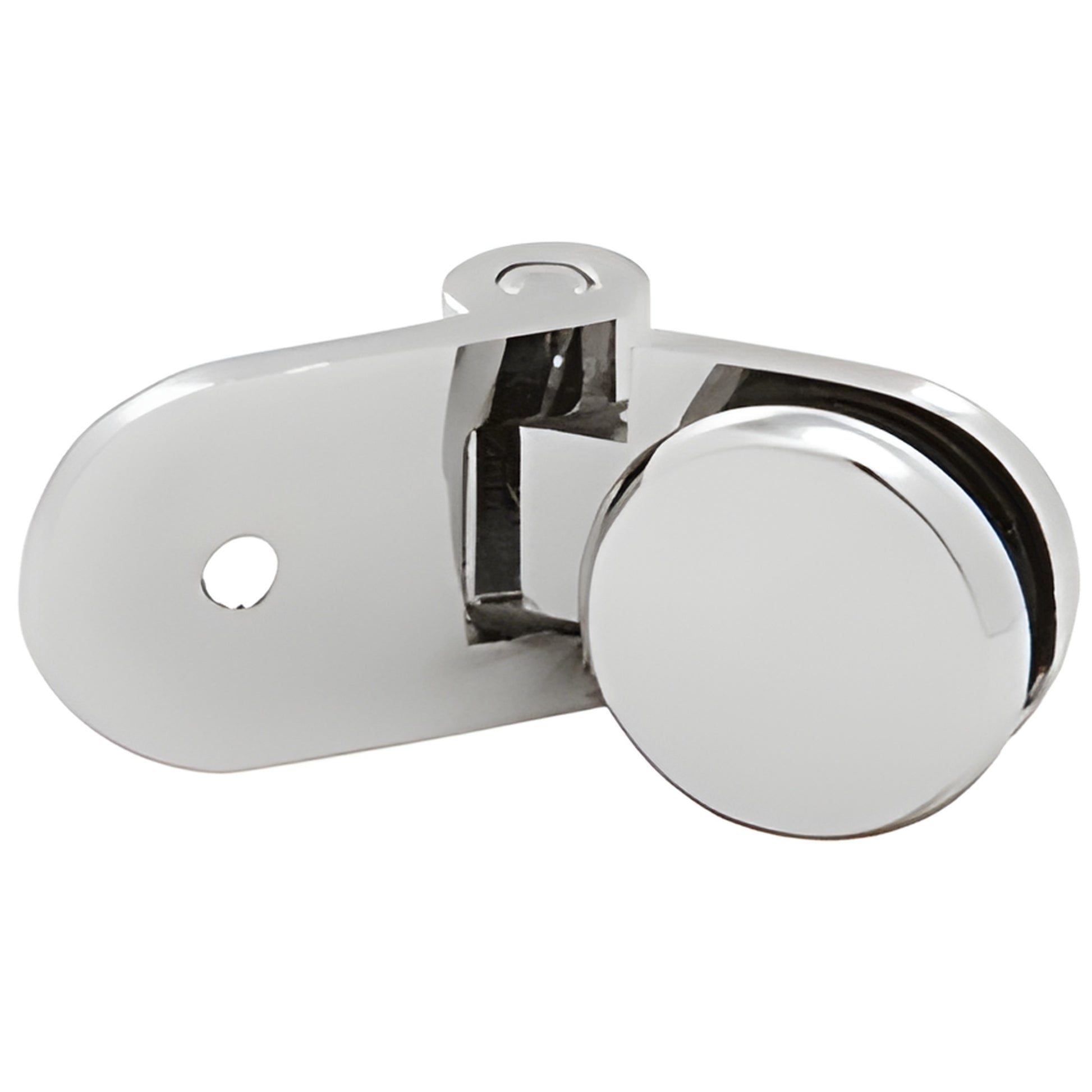

CRL Hydroslide Bi-Fold Hinges (SKU: HYDH037CH) add a new option to the Hydroslide sliding-door system: bi-fold shower door hinges that let two sliding glass panels fold into the enclosure for a larger opening than a single sliding door. These hinges are machined from solid brass, require holes in the glass, and pair with the Hydroslide upper track and hanger hardware (sold separately). Ideal long-tail search phrases: Hydroslide bi-fold shower door hinges, solid brass bi-fold hinges for tempered glass shower doors, wall-mount and glass-to-glass shower hinges for 8mm-10mm glass.
NOTE: Upper track, hanger, and 90° wall-to-upper-track connectors required for installation are sold separately.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) tempered safety glass
Construction: Solid brass
Hinge Motion: Bi-folds into shower enclosure (free swinging)
Glass Requirement: Holes required in glass (use provided template)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Capacities: Combined folding doors must not exceed 48" (1.22 m) or 100 lbs. (45 kg). Use two hinges per folding panel only.
Product Warning:
CRL shower door hinges are designed for residential or hotel shower installations. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template—cut-out dimensions for CRL hinges may differ from other brands.
Most shipping weights are approximate. If you require exact weight to determine shipping costs, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor.
Ordering: For the Hydroslide Bi-Fold Hinges (HYDH037CH) or installation questions,
