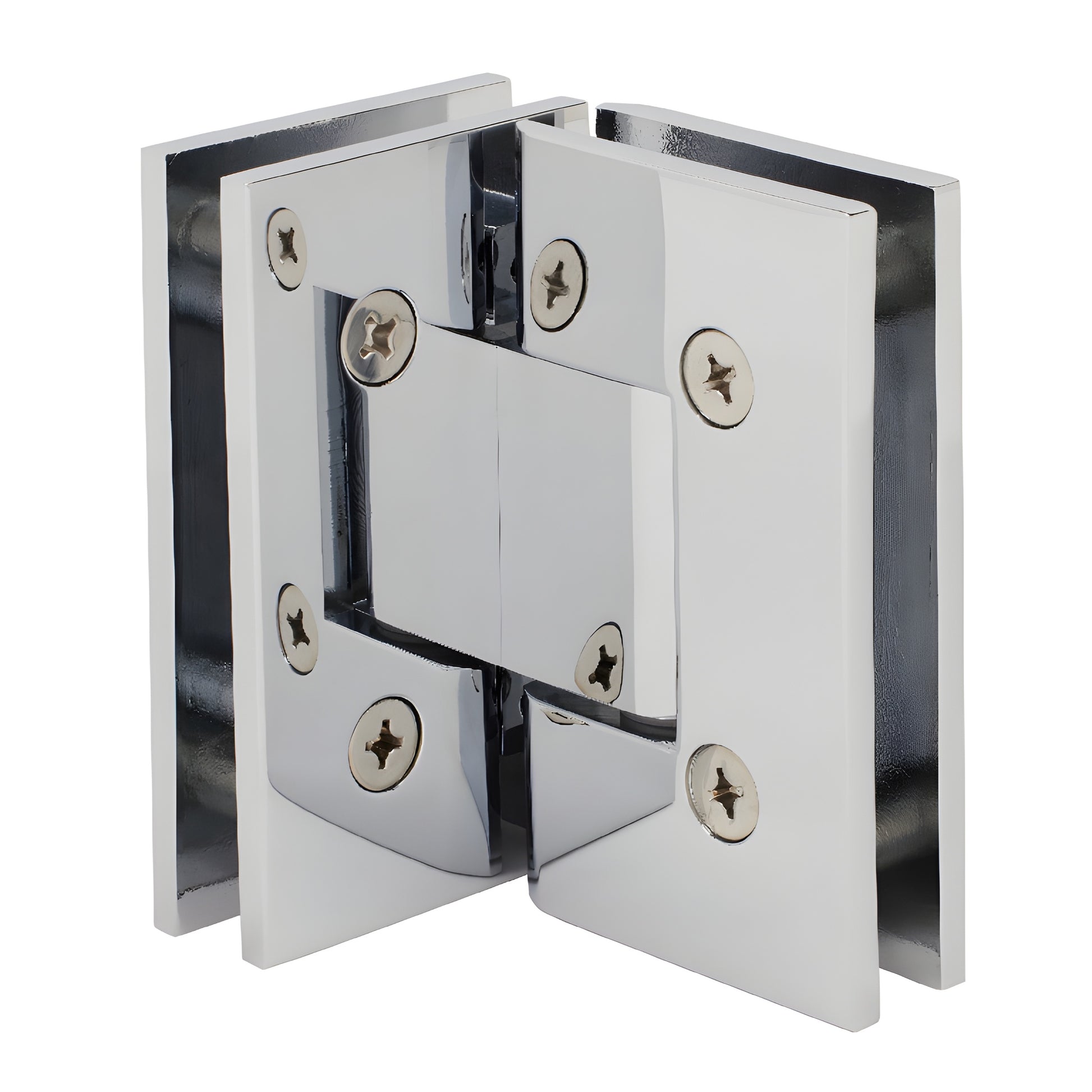

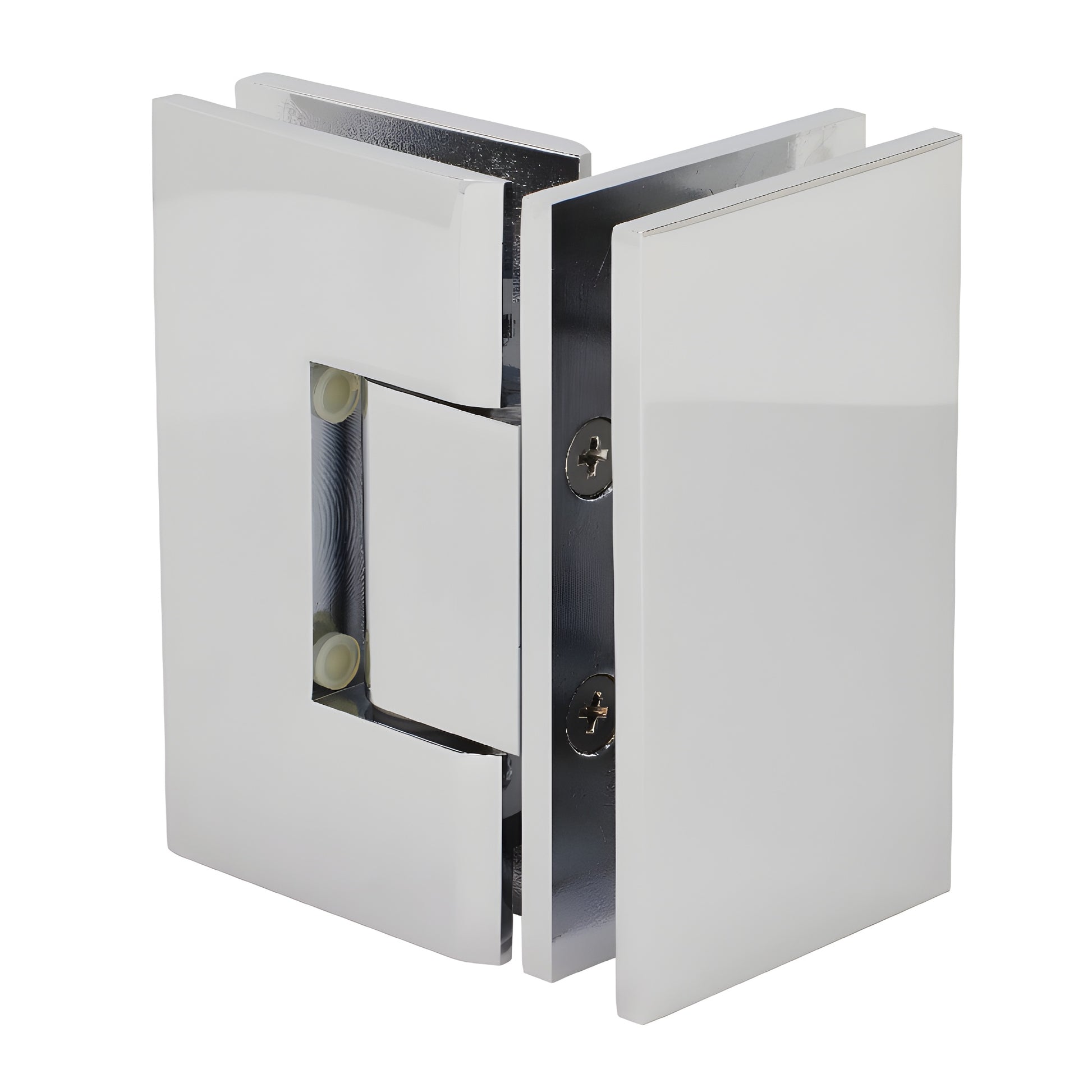

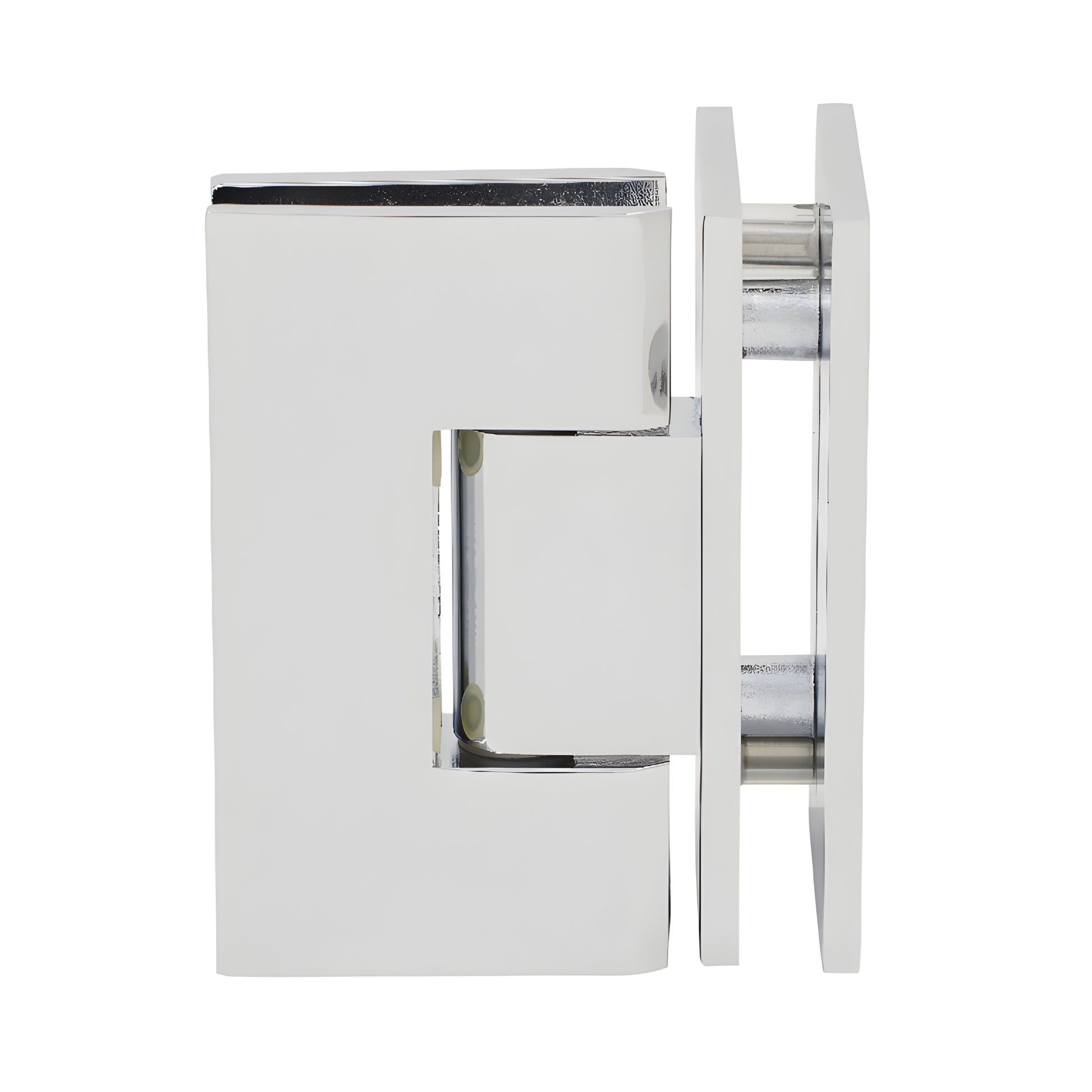

CRL Geneva 092 Chrome Junior 90° Glass-to-Glass Shower Door Hinge

• 90 Degree Glass-to-Glass Shower Door Hinge
• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty

The same elegant European design of the Geneva Series is available in a smaller format, the Junior Geneva (SKU JRG092CH), for greater application flexibility. Designed for framed or frameless glass showers, this solid brass glass-to-glass hinge fits 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass. Offered in three wall-mount styles plus 90°, 135°, and 180° glass-to-glass options, the Junior Geneva is self-centering and stocked in up to 12 finishes. Each hinge includes a reversible pivot pin to engage an optional 5° tighter door closure.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other; rotate the pin (do not flip) to activate the 5° tighter closing position for improved shower sealing and alignment.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° adjustment is insufficient.

LOAD CAPACITY:

Using two hinges with 1/4"–5/16" glass, the hinge will support up to 62 lbs (28 kg) and a maximum door width of 28" (711 mm).

Using three hinges with 1/4"–5/16" glass, the hinge will support up to 92 lbs (42 kg) and a maximum door width of 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass

Special Features: Choice of Standard model (0° factory set) or 5° pre-set model for tighter closure. All models include a reversible 5° pivot pin for improved door sealing.

Construction: Solid Brass

Hinge Swings: 90° In and 90° Out

Closing Type: Self-centering when within 15° of closed position

Includes: Gaskets, screws, and glass fabrication dimensions (template required).

Product Warning:

CRL shower door hinges are intended for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template—cut-out dimensions may differ from other brands.
