Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
CRL
CRL Chrome Long-Leg Set-Screw Frameless Shower Glass Clamp 1/4-5/16in
CRL Chrome Long-Leg Set-Screw Frameless Shower Glass Clamp 1/4-5/16in
Regular price
$19.33 CAD
Regular price
Sale price
$19.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH50
Shipping Weight: 1.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

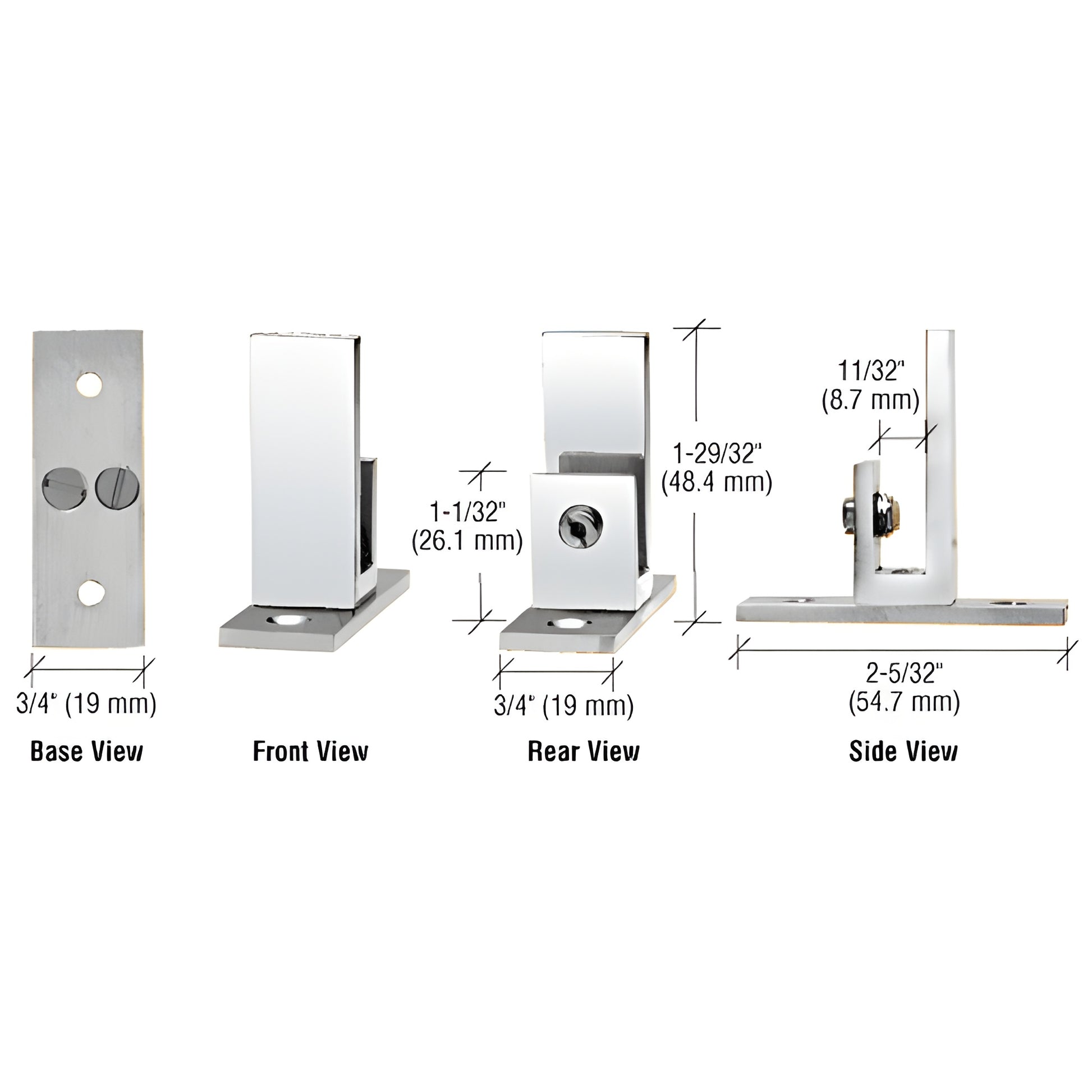

Description
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height - Overall Blank Side
1-29/32 in. (48.4 mm)
Height - Overall Set Screw Side
1-1/32 in. (26.2 mm)
Length - Base Plate
2-5/32 in. (54.8 mm)
Length - Clamp
3/4 in. (19.1 mm)
Material
Brass
Thickness - Base Plate
1/8 in. (3.2 mm)
Width - Base Plate
3/4 in. (19.1 mm)
Width - Clamp
3/4 in. (19.1 mm)
Overview
- Extremely Versatile
- For 1/4" to 5/16" (6 to 8 mm) Tempered Glass
CRL Long Leg Set Screw Glass Clamps — SKU: EH50 are solid brass glass clamps designed for secure glass shelving and railing applications. The extra long leg provides added support for attaching glass shelves to walls or connecting glass panels in railing systems. Each clamp secures tempered glass (6–8 mm / 1/4"–5/16") with a plastic-tipped set screw and includes two wood screws for mounting to wood substrates or wall studs. One clamp per pack.
These long-leg set screw glass clamps solve common glass mounting challenges such as flush glazing, connecting panels for railing systems, and attaching shelves to walls. Ideal long-tail keywords: long leg glass shelf clamp, solid brass glass clamp for tempered glass shelves, set screw glass clamp for 6mm glass.
NOTE: Install clamps into wall studs or a wood substrate. Recommended maximum shelf depth is 5" (127 mm). One clamp per pack.
Specifications
CAD Drawings - dwg
