CRL Chrome Pivot Hinges for 1/4 in Glass Display Cases
CRL Chrome Pivot Hinges for 1/4 in Glass Display Cases
Regular price
$31.78 CAD
Regular price
Sale price
$31.78 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH236
Shipping Weight: 5.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

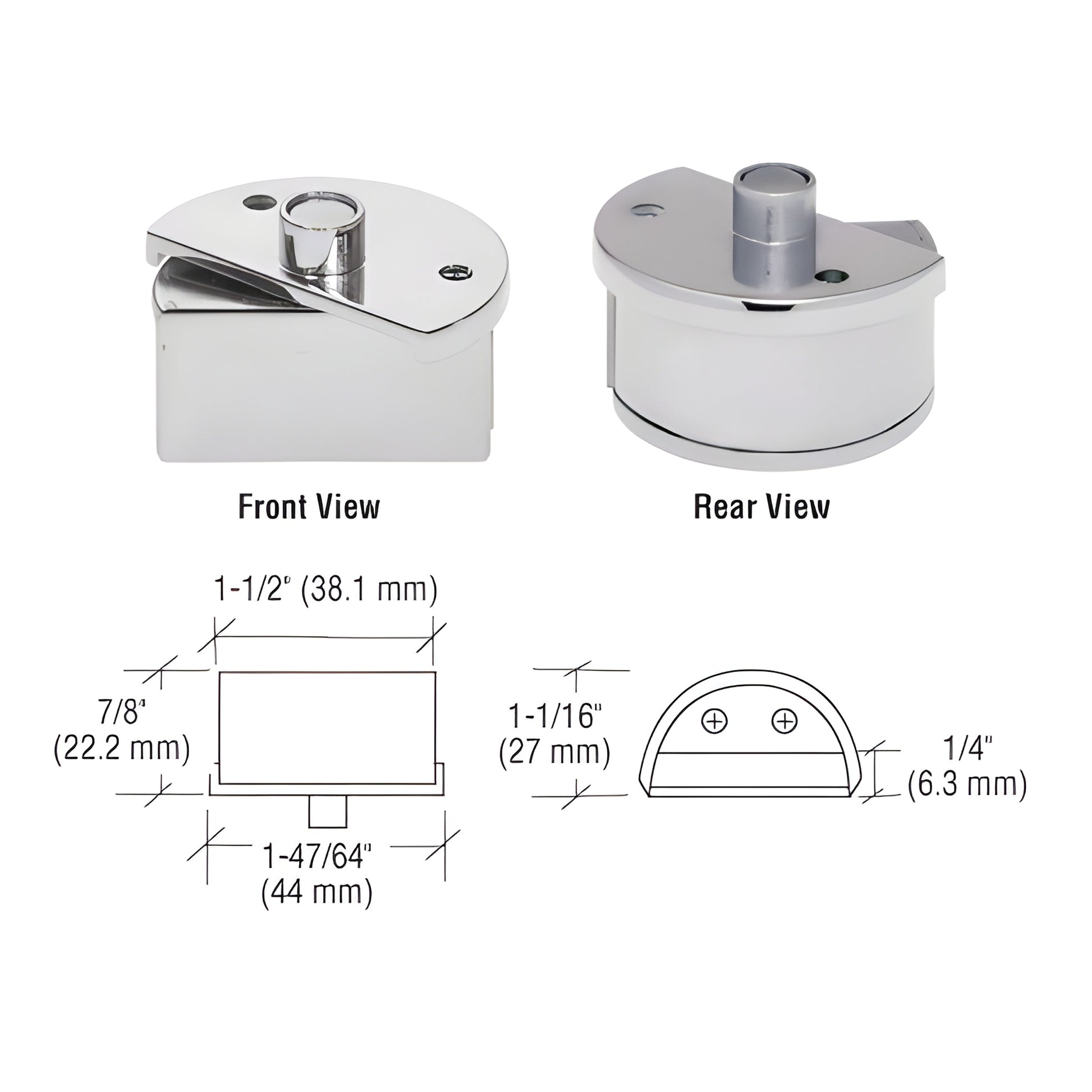

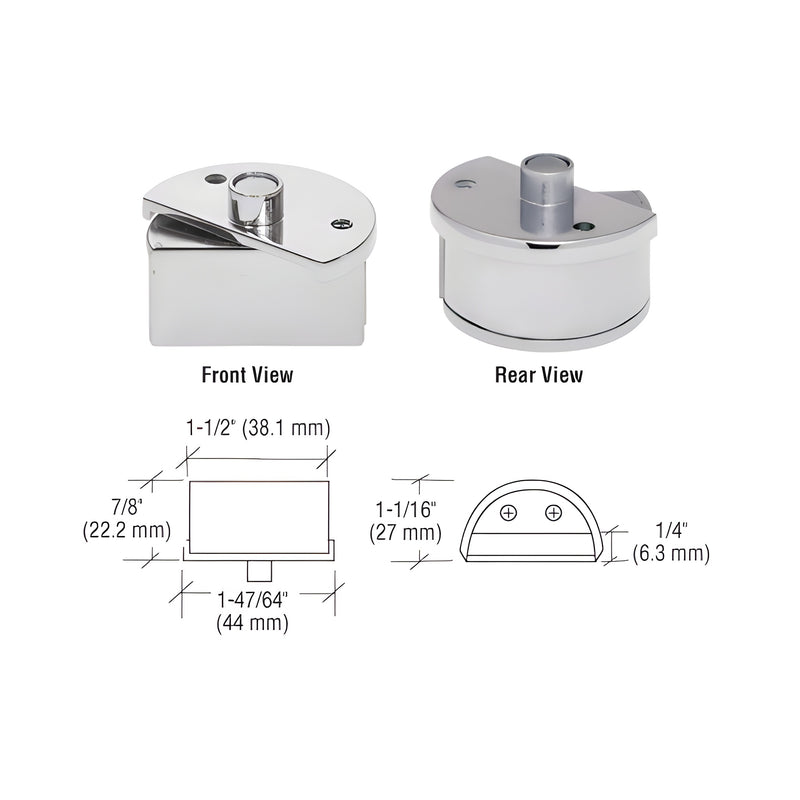

Description
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. (6 mm)
Height
7/8 in. (22.2 mm)
Material
Brass
Maximum Door Width
22 in. (558.8 mm)
Pack Quantity
2
Weight Capacity
25 lbs. (11.3 kg)
Width
1-47/64 in. (44.1 mm)
Overview
- Fits 1/4" (6 mm) glass
- No holes or cut-outs required — installs without drilling
- Also available in brass finish
- Easy-to-install frameless glass door hinge
Each package (SKU: EH236) contains one complete set: one upper hinge, one lower hinge, two screws, one L-shaped plastic gasket, and one flat plastic gasket. A positive positioning keeper holds doors at a true 90° when closed. Recommended maximum door width: 22" (559 mm). Maximum door weight: 25 lbs (11.3 kg). Minimum clearance required: 1/4" (6 mm) top and 1/4" (6 mm) bottom. One top-and-bottom set per pack.
Order SKU EH236 today to get a no-drill 1/4" glass hinge with an optional brass finish.
