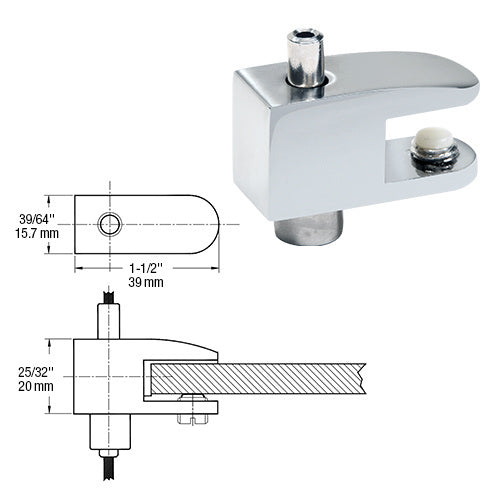

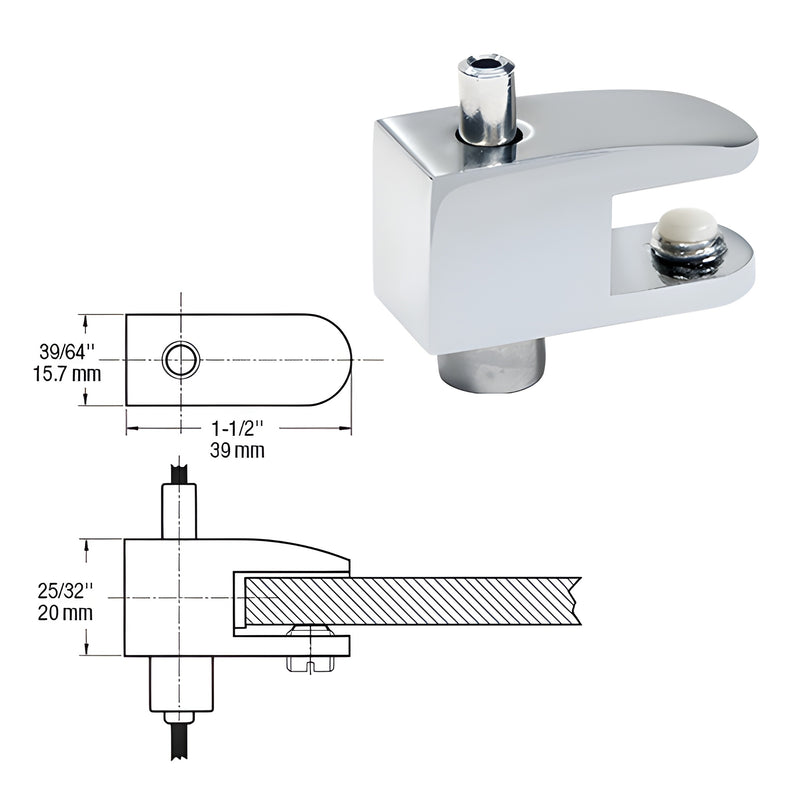

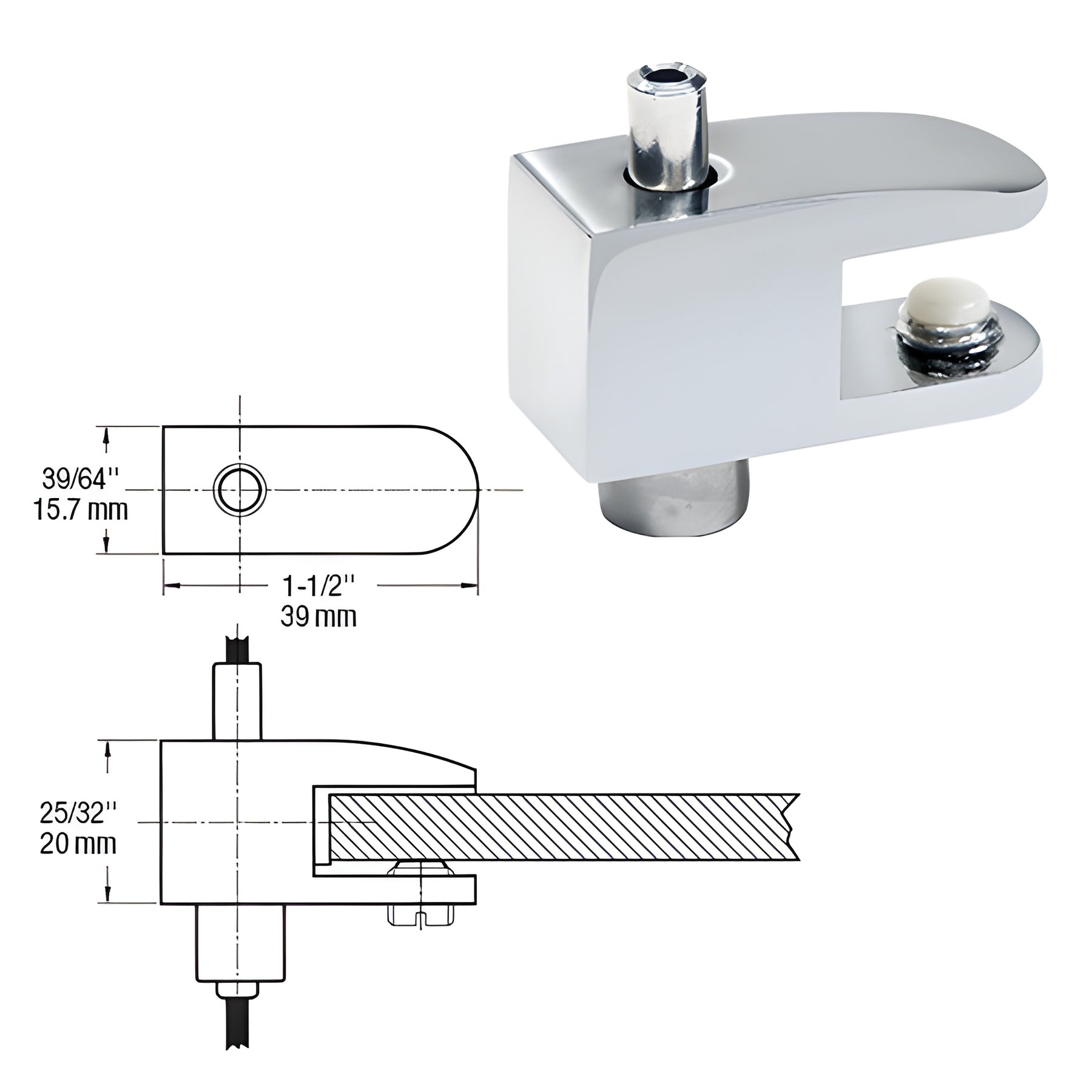

CRL Chrome Plated Fixed Single Shelf Bracket for Cable Display System

• Holds Panels Securely in Horizontal Position
• For 1/4" and 5/16" (6 to 8 mm) Panels
• Available in Several Finishes

The CRL Fixed Single Shelf Bracket for the Cable Display System have a highly efficient and secure set screw clamping system. The Fixed Brackets are very easily installed by inserting the stainless Steel Cable end thru the Bracket's lower push tube. When the "push tube" is depressed, the Bracket can be adjusted to the desired position on the cable. The Brackets will stay firmly and securely in place on the 2 mm cable. To re-position the Brackets, simply depress the "push tube" and slide the Bracket up or down on the cable. The Brackets are designed to accommodate 1/4" to 5/16" (6 to 8 mm) panels.


Product Warning:

WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20 lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount Fittings. If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18kg.).
