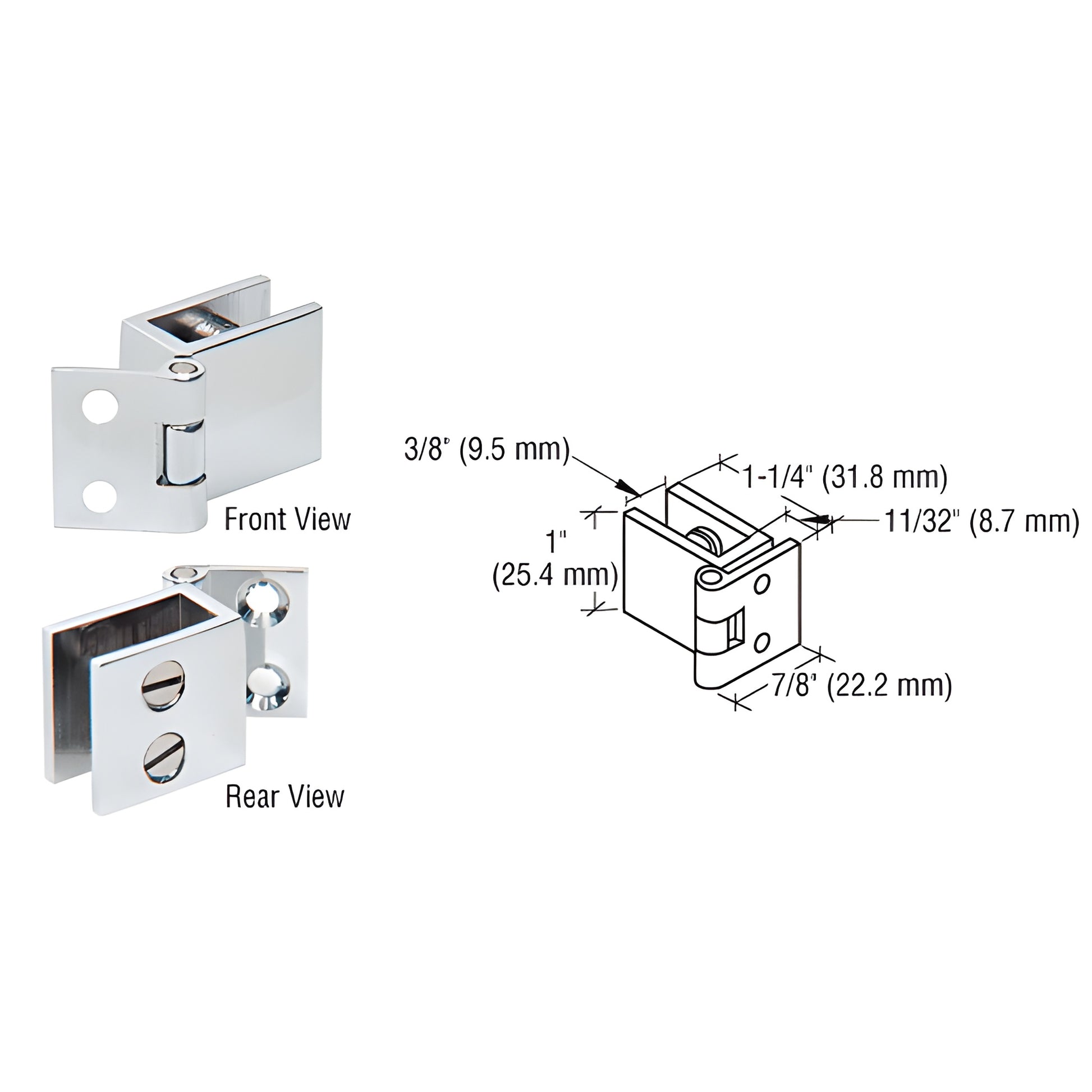

CRL Chrome Small Set Screw Hinge for 1/4" to 5/16" Glass

CRL Chrome Small Set Screw Hinge for 1/4" to 5/16" Glass
CRL Chrome Small Set Screw Hinge for 1/4" to 5/16" Glass

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUEH72
Sold as1 Pack
Finish/Color:Polished Chrome
Glazing Thickness1/4 in. To 5/16 in. (6mm To 8 mm)
Height1 in. (25.4 mm)
MaterialBrass
Maximum Door Width16 in. (406.4 mm)
Weight Capacity8 lbs. (3.6 kg)
Width1-1/4 in. (31.8 mm)

Description

Product Details

  • Available in Several Finishes
  • For 1/4" to 5/16 (6 to 8 mm) Glass
  • No Holes or Cut-Outs Required
  • Use Monolithic Tempered Glass

This CRL Hinge is used for a general purpose glass-to-wall installation. The glass is secured with plastic tipped set screws for no-drill attachment. The maximum recommended door width is 16" (406 mm). Maximum weight should not exceed 8 lbs. (3.6 kg). Two per pack with matching finish wood screws.

Specifications

Technical Resources

CAD Drawings - pdf

PDF
EH72 Detailed CAD Drawings.pdfOpen PDF ↗

CAD Drawings - dwg

DWG
EH72 Detailed CAD Drawings.dwgOpen DWG ↗
