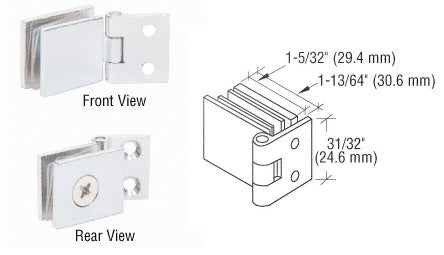

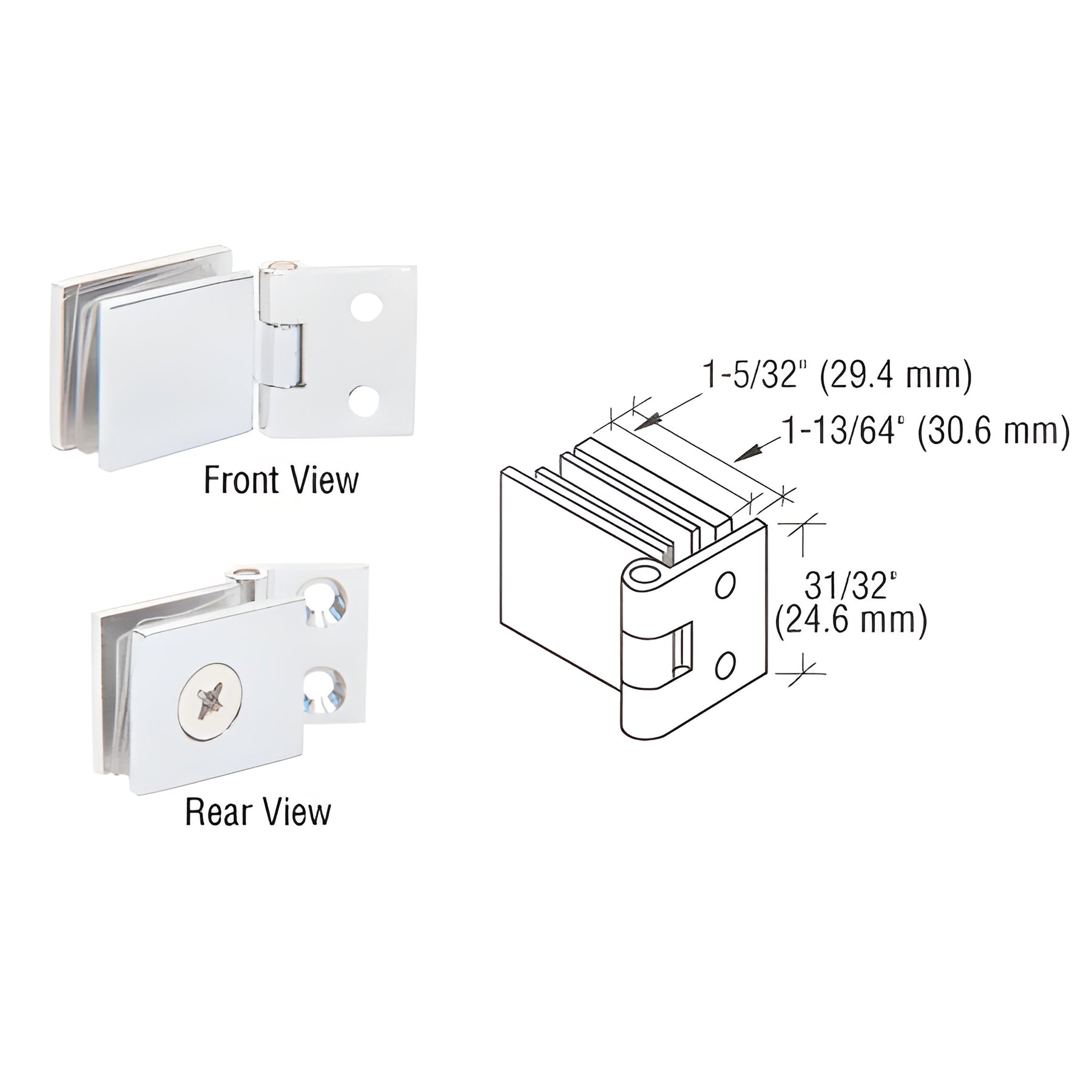

CRL Chrome Single Wall-to-Glass Hinges

Finish / Colour (2)

Polished Brass
Polished Chrome

Overview

SKU	EH262
Sold as	1 Pack
Finish/Color:	Polished Chrome
Glazing Thickness	1/4 in. To 5/16 in. (6mm To 8 mm)
Height	31/32 in. (24.6 mm)
Material	Brass
Maximum Door Width	14 in. (355.6 mm)
Weight Capacity	10 lbs. (4.5 kg)
Width	1-13/64 in. (30.6 mm)

Description

Product Details

For 1/4" to 5/16" (6 to 8 mm) Glass
Two Per Package
One 1/2" (12 mm) Hole Required

For wall mounted glass applications. CRL Brass Single Wall-to-Glass Hinges are made of forged brass construction with a screw attachment feature. Clear vinyl pad inserts protect glass. Available in polished brass with lacquered finish or chrome plated. Requires 1/2" (12 mm) holes in glass for mounting. The maximum recommended door width is 14" (356 mm) and maximum weight should not exceed 10 lbs. (4.5 kg).
