CRL

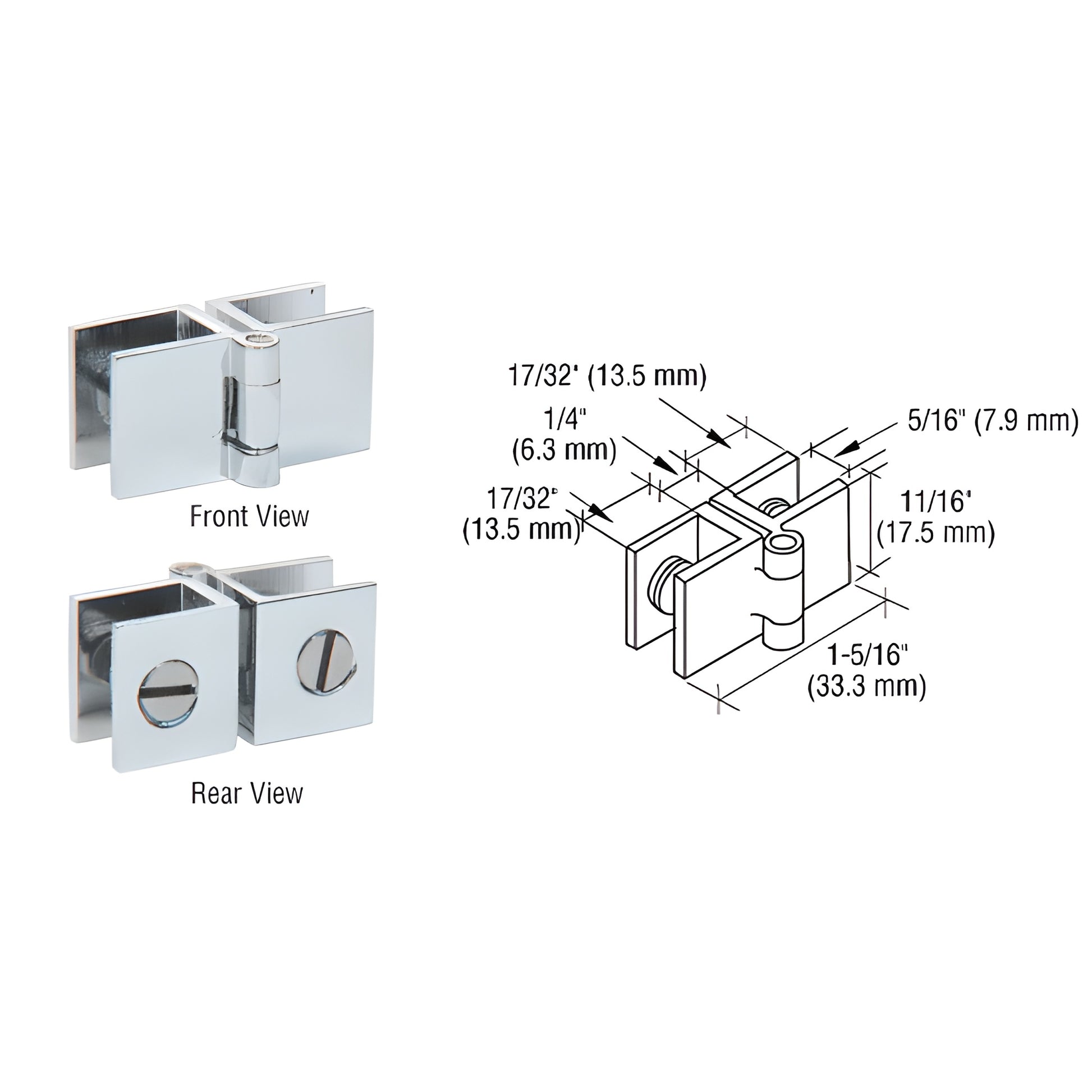

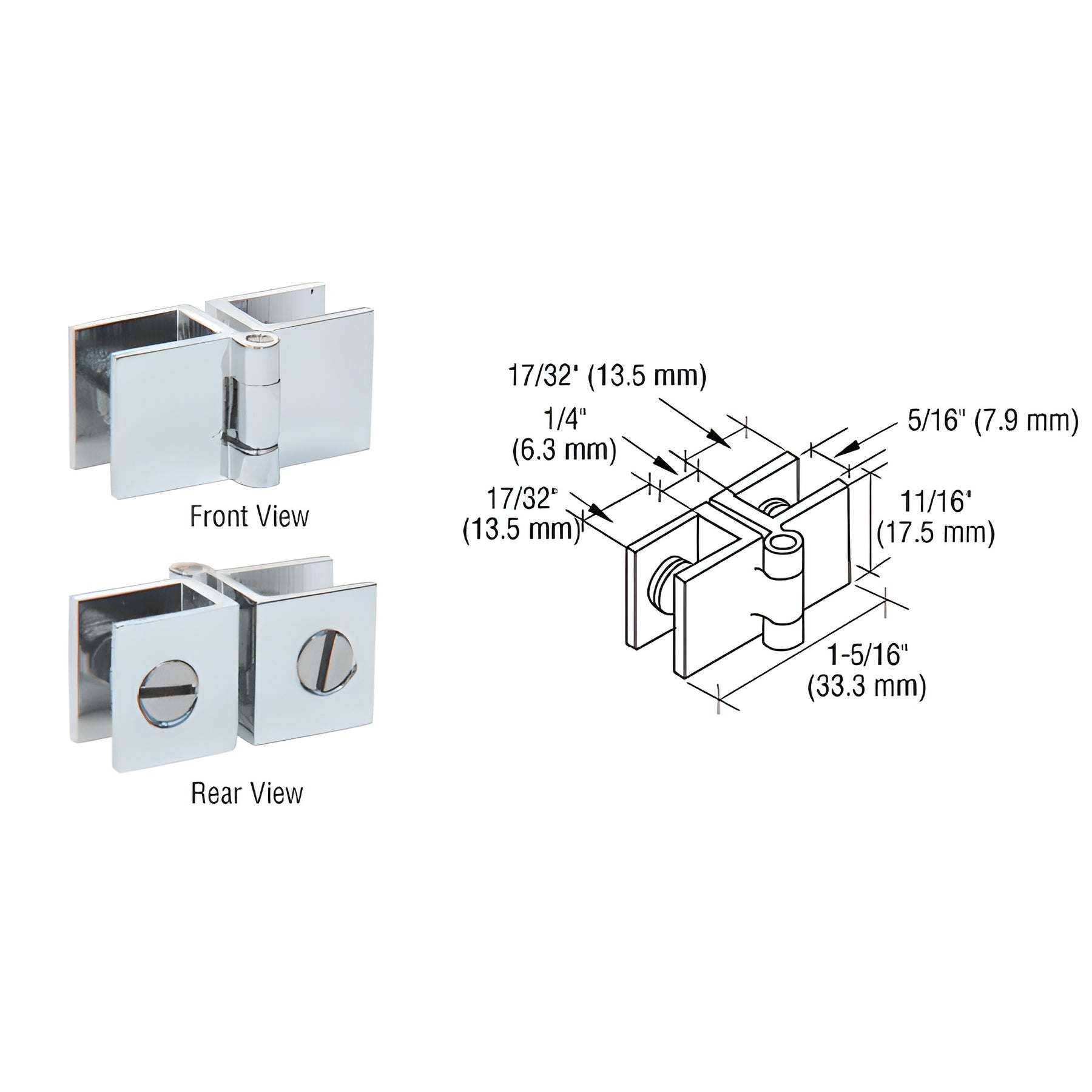

CRL Chrome Small Glass-to-Glass Out-Swing Set-Screw Shower Hinge
Item# EH196
Shipping Weight: 0.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Polished Chrome
Glazing Thickness
3/16 in. To 1/4 in. (5 mm To 6 mm)
Height
11/16 in. (17.5 mm)
Material
Brass
Maximum Door Width
10 in. (254 mm)
Open Width
1-5/16 in. (33.3 mm)
Pack Quantity
2
Weight Capacity
3 lbs. (1.4 kg)
- For 3/16" and 1/4" (5 and 6 mm) thick glass
- No holes or cut-outs required — no-drill installation with set screws
- Ideal for showcase, display, or stereo cabinet doors
CRL's newest hinge selection offers reliable, low-profile hardware for glass doors. The CRL Small Chrome Glass-to-Glass Out-Swing Set Screw Hinge (SKU: EH196) is a popular, compact chrome hinge designed for 3/16" and 1/4" glass. These glass-to-glass out-swing set screw hinges feature plastic-faced set screws for a secure, no-drill attachment and a clean, smooth chrome finish that complements showcases and stereo cabinets. Maximum recommended door width: 10" (254 mm). Maximum weight per door: 3 lbs. (1.4 kg). Two hinges per pack.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor.
Order the EH196 small chrome glass-to-glass out-swing set screw hinge for easy, no-drill installation — add to cart now.
CAD Drawings - dwg
