CRL Chrome 180° Glass-to-Glass Hinge for Frameless Shower Doors

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body — finishes: Brite Chrome, Satin Nickel, Satin Anodized
• Adjustable closing speed via control valve
• Durable alternative to floor closers and patch fittings for all-glass retrofits

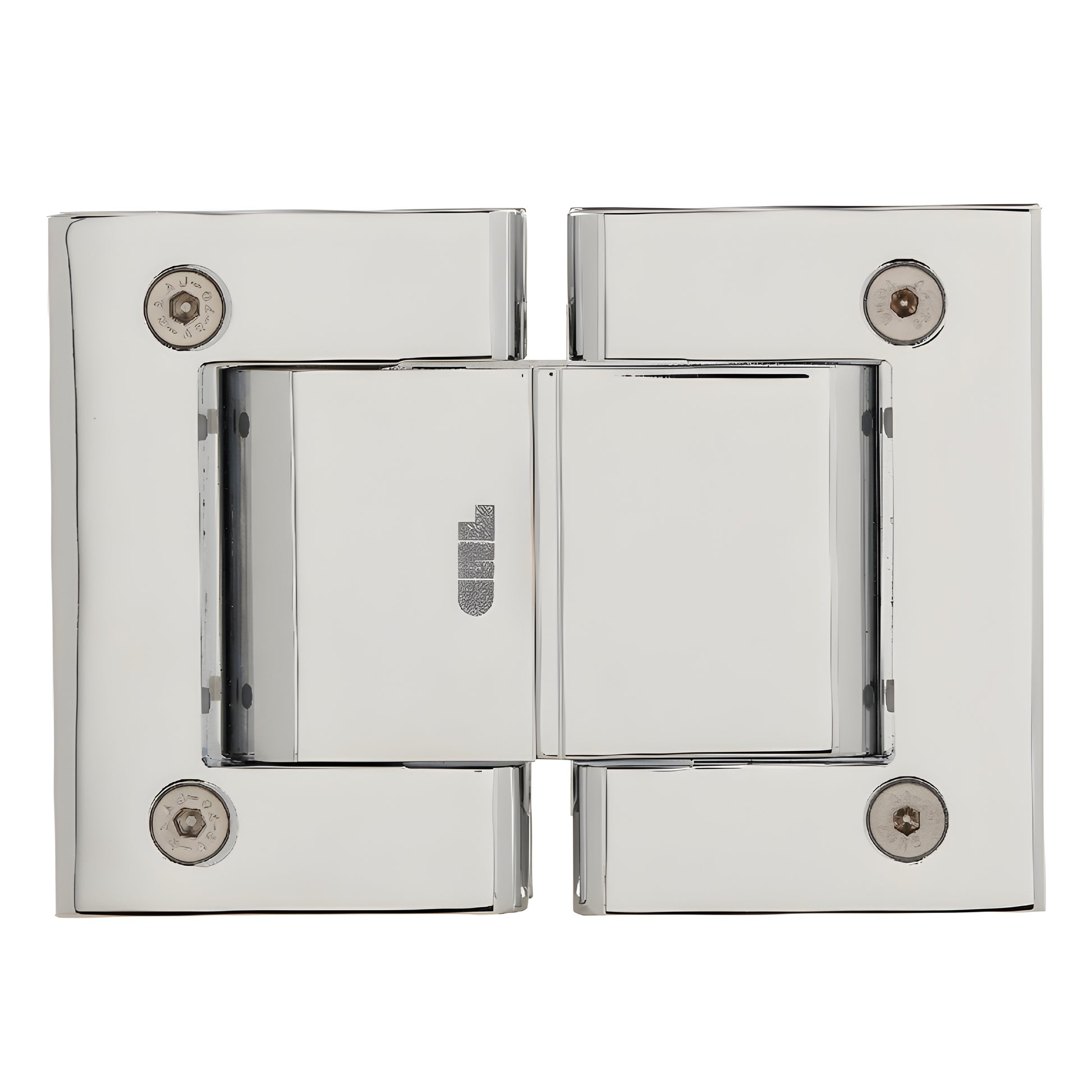

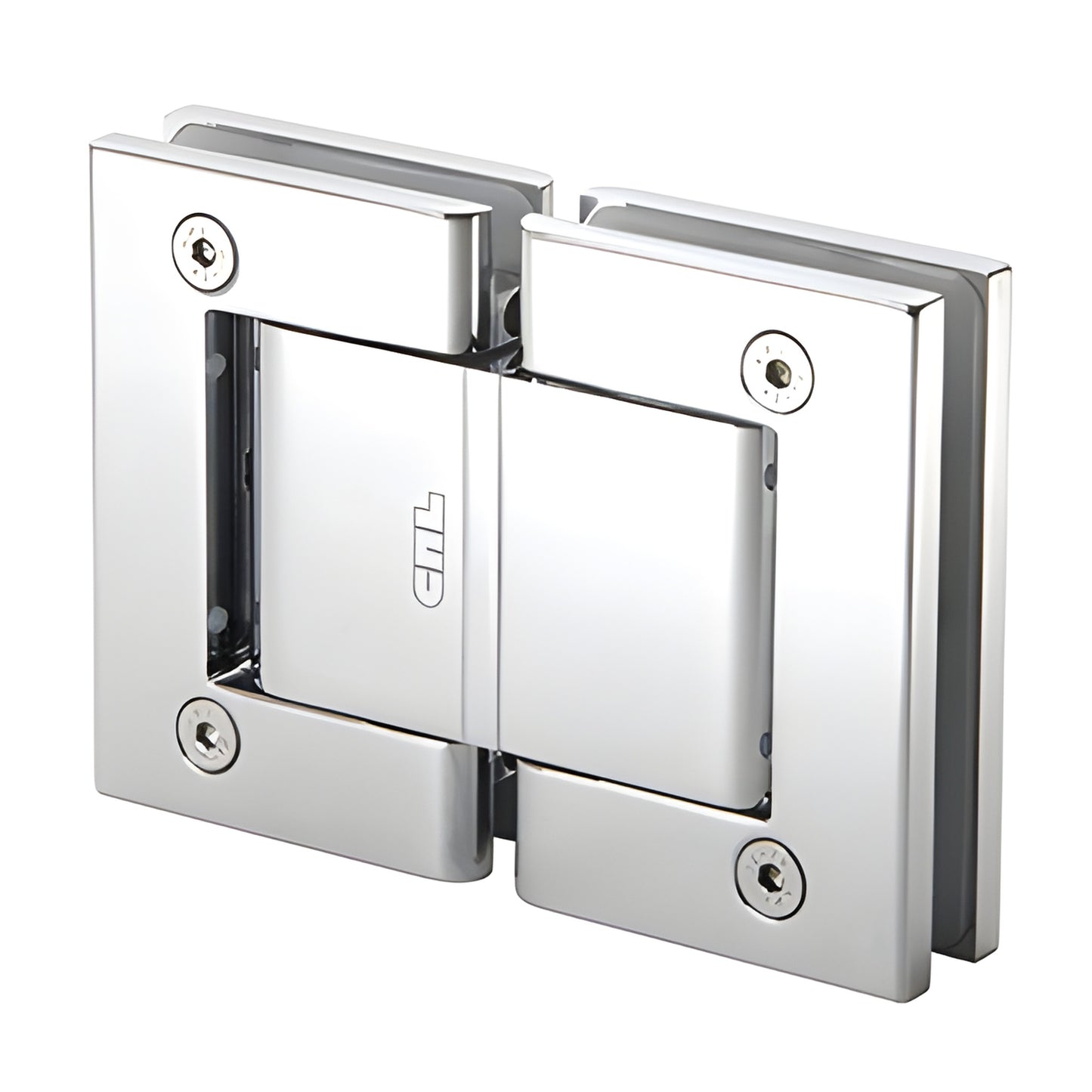

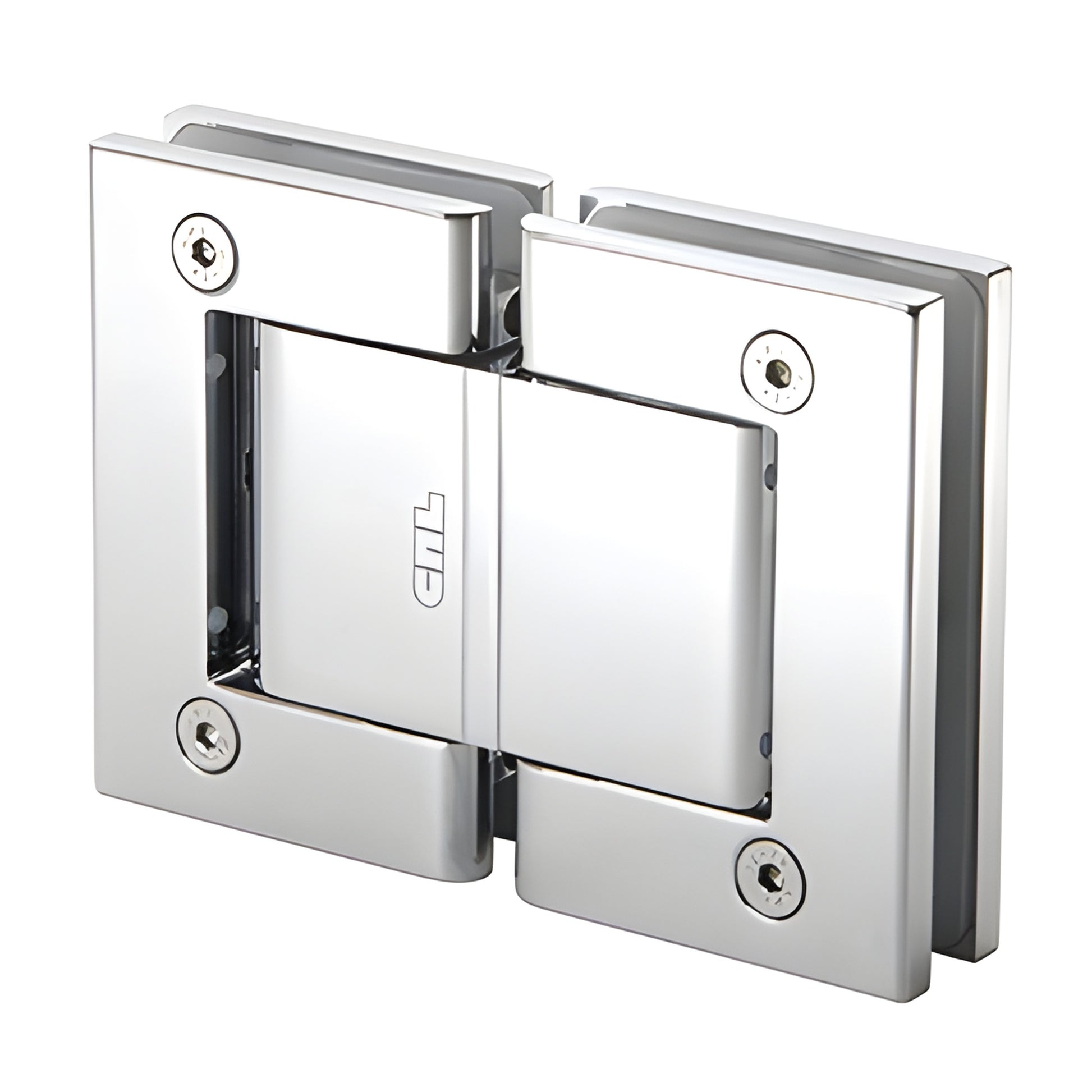

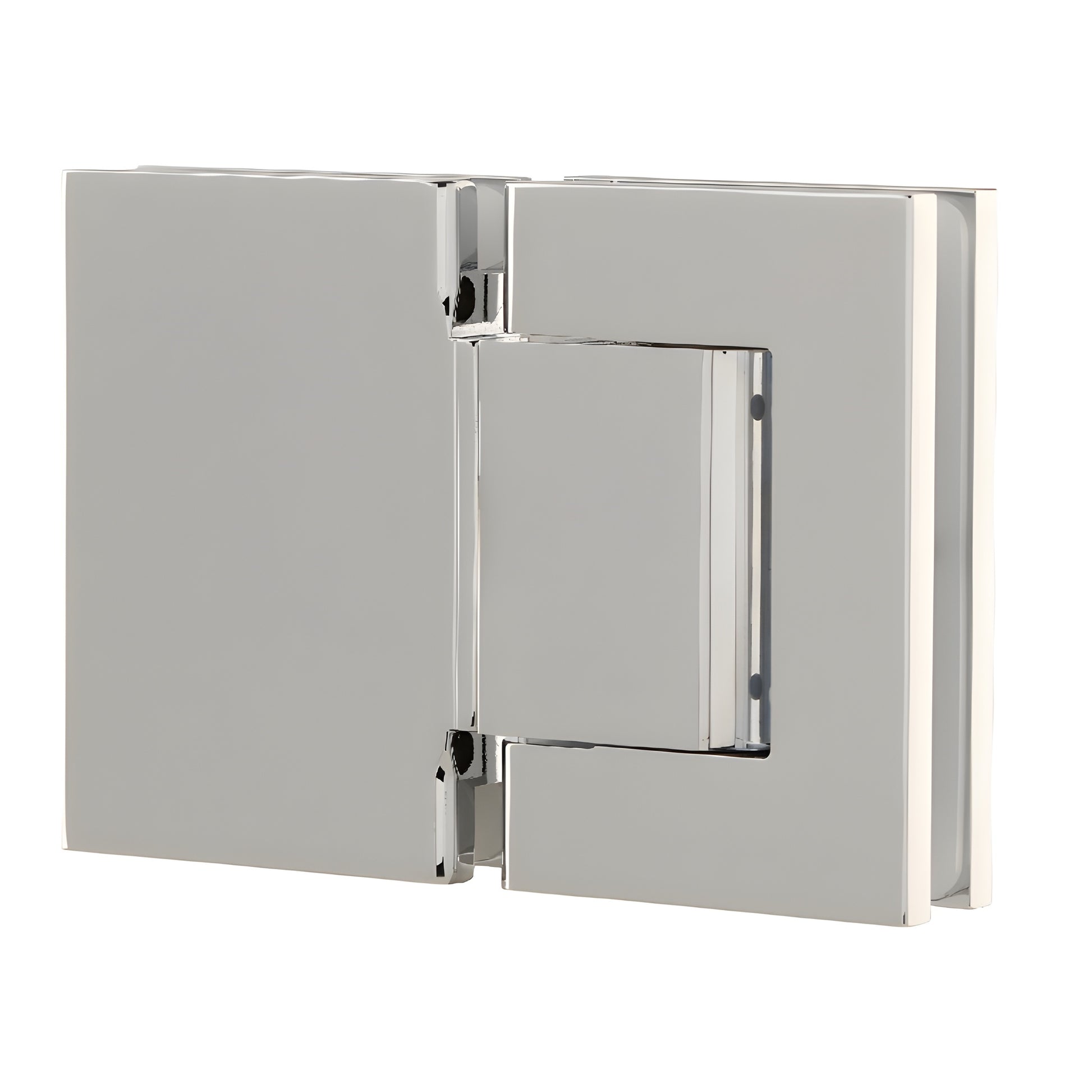

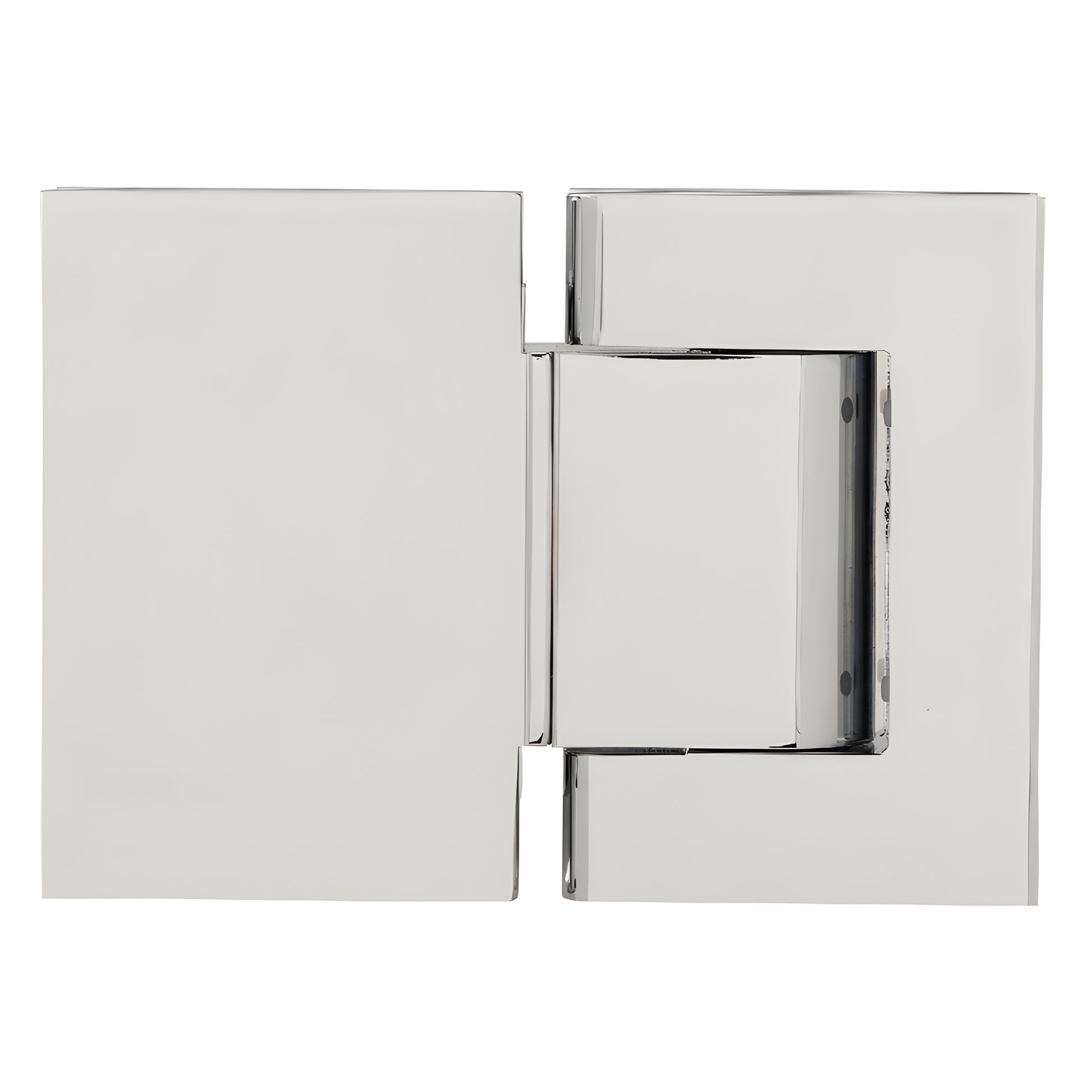

The CRL Oil Dynamic Full Back Plate Wall Mount Hinge (SKU: H8215BTCH) is a self-closing glass door hinge that swings 90° in and out with a 0° stop. Designed for interior glass doors up to 39" (1 m) wide, two hinges support a maximum combined door weight of 176 lbs (80 kg). Oil Dynamic blends automatic mechanical hinge action with hydraulic damping to eliminate the need for floor-mounted or overhead closers—ideal for installing an all-glass door without extensive retrofitting.

Ambidextrous design and a precision control valve let you set the closing speed for consistent operation. Aluminum construction and over 1 million test cycles ensure long-lasting performance. Includes snap-in molded gaskets for 5/16" to 9/16" (8 to 13.52 mm) glass. Cut-out glass fabrication is required.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90° inwards and outwards (except H8060 model)
Closing Type: Automatic closing from 0° to 80°
Includes: Snap-in molded gaskets for 5/16" to 9/16" (8 to 13.52 mm) glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 176 lbs (80 kg)
Product Warning:
Do not use more than two hinges on one door. For alternate uses, obtain approval from the CRL Technical Sales Department. Use only the template included—CRL cut-out dimensions may differ from other brands.

Choose the Oil Dynamic H8215BTCH hinge for a low-profile, hydraulic self-closing solution—order now for fast interior glass door installation.
