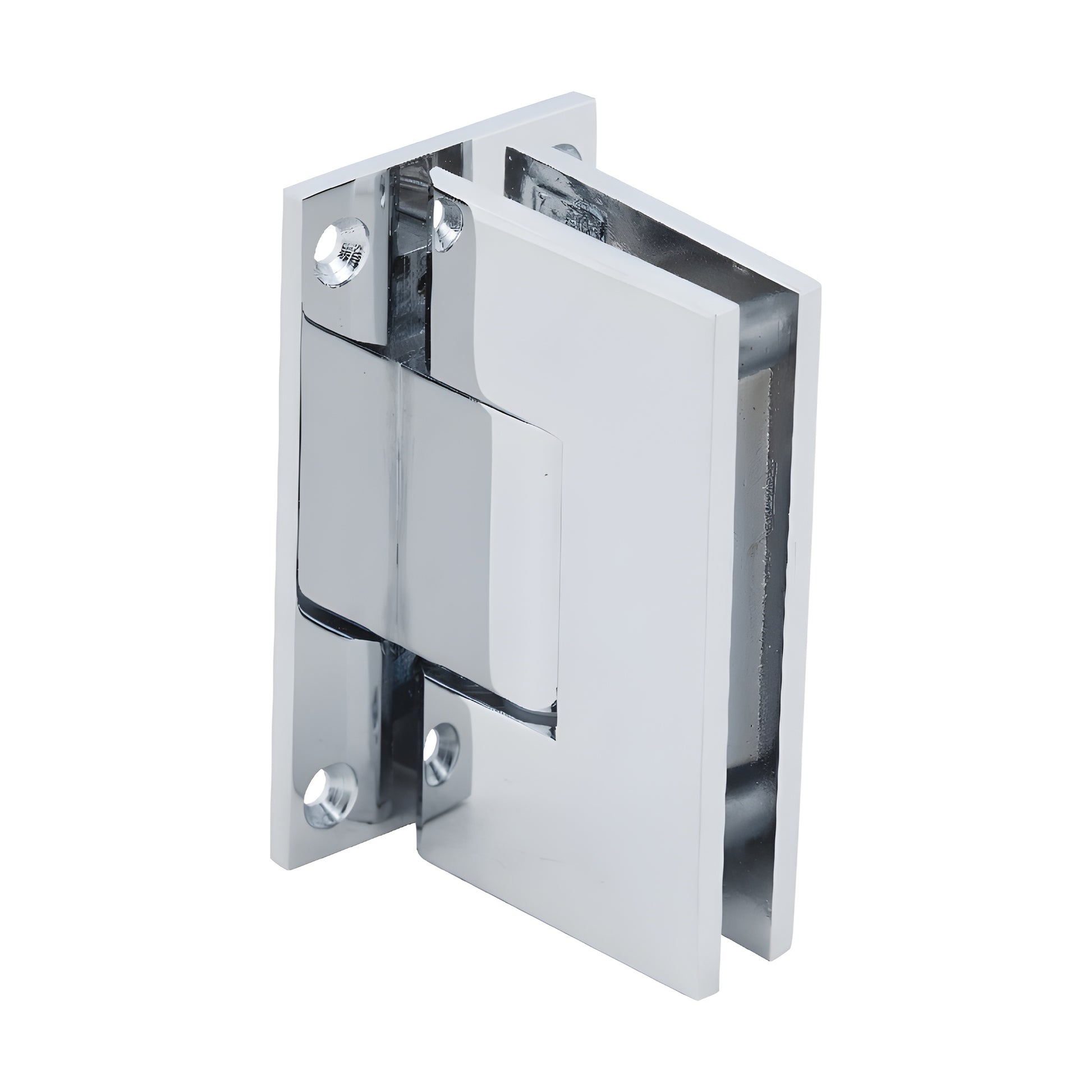

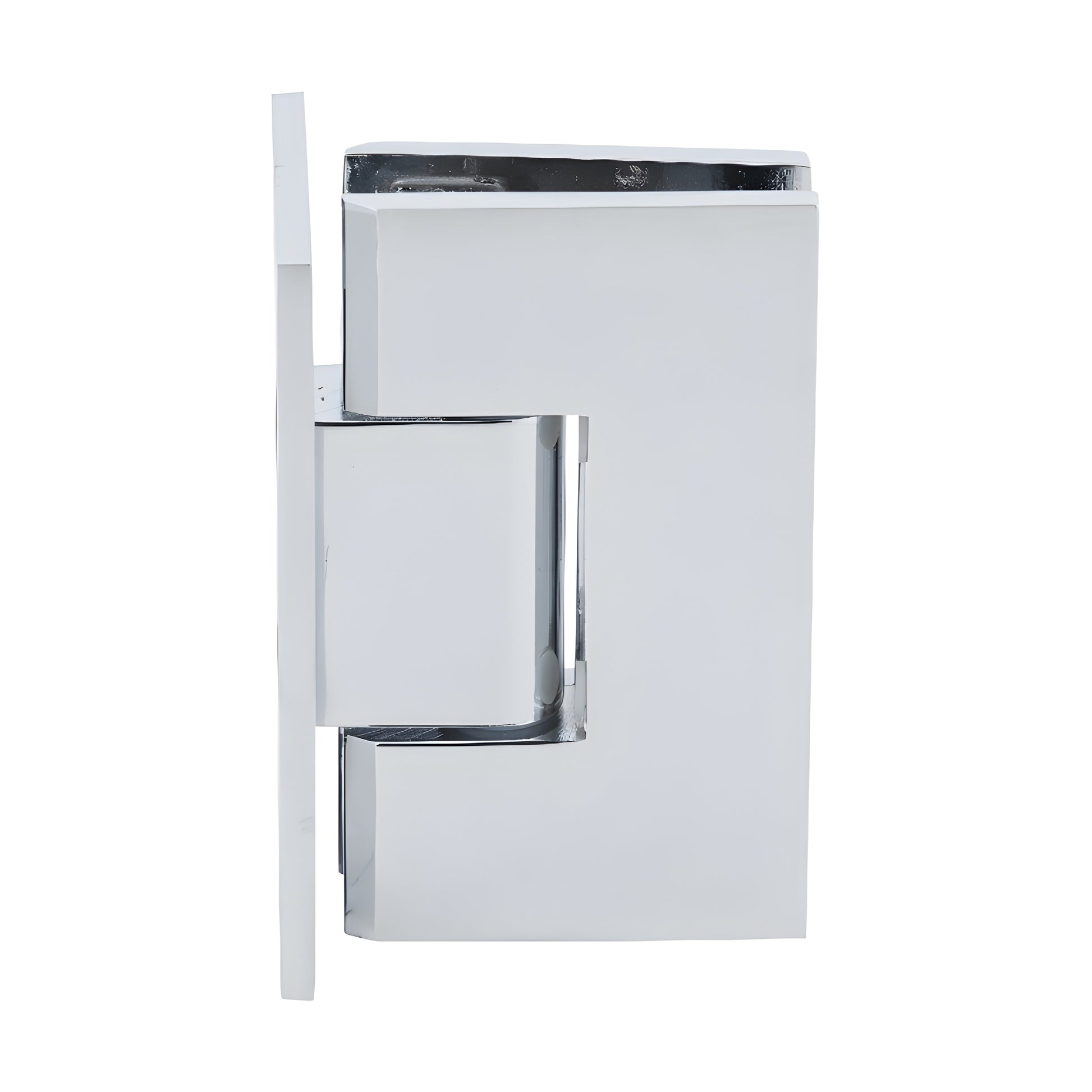

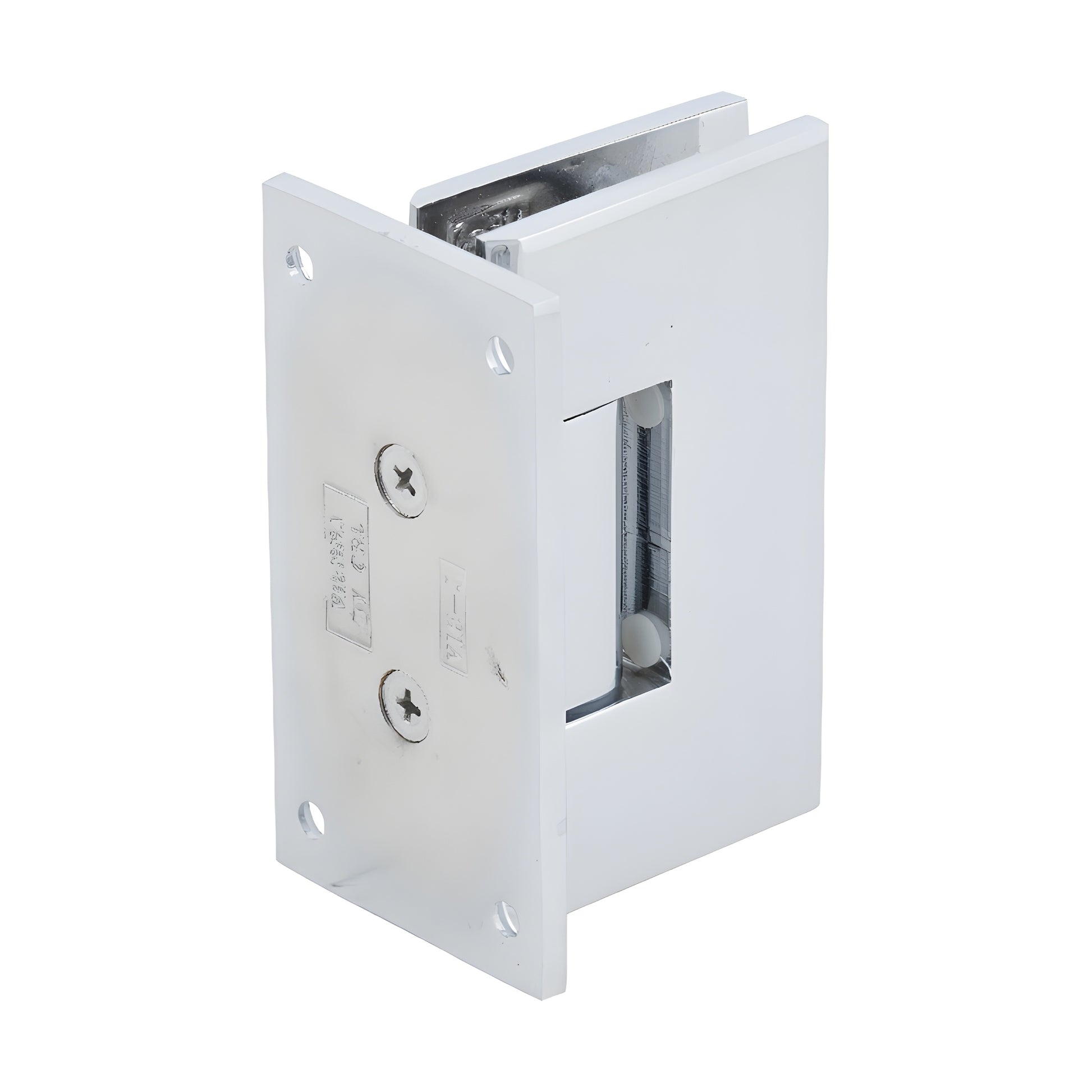

CRL Vienna Chrome Positive-Close Wall-Mount Hinge Full Back Plate

• Special grooved internal pivot pin for precise, positive closing action
• Positive Close Vienna Hinge—different from self-centering Vienna hinges
• Stocked in wall-mount and 180° glass-to-glass models
• Available in four popular finishes; other finishes available by special order
• Designed for monolithic tempered safety glass

The Positive Close Vienna Hinge (SKU: V1E067CH) features an internal grooved pivot pin that delivers a precise, positive closing action ideal for glass shower doors and commercial glass enclosures. Stocked for wall-mount and 180° glass-to-glass installations and available in multiple finishes to match your hardware.

Load Capacity & Glass Compatibility

• Using two hinges with 3/8"–1/2" (10–12 mm) tempered glass: holds up to 110 lbs (50 kg); max door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" (10–12 mm) tempered glass: holds up to 140 lbs (63 kg); max door width 36" (914 mm)

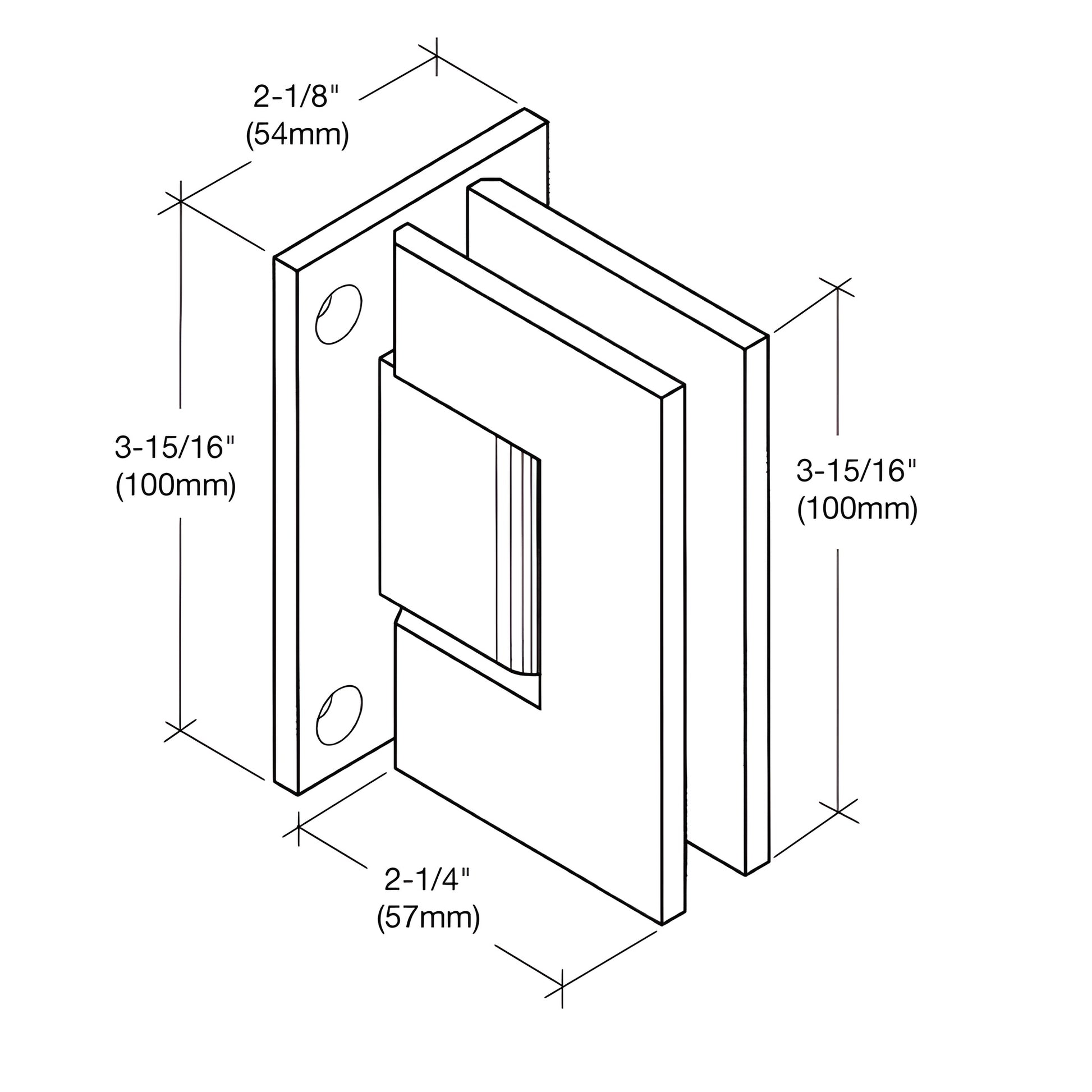

SPECIFICATIONS:

• Glass Thickness: 3/8" to 1/2" (10–12 mm) tempered safety glass
• Construction: Solid brass
• Hinge Swings: 90° inwards and outwards (double-action)
• Closing Type: Positive closing to zero degrees (positive close)
• Includes: gaskets, Phillips screws, Allen screws, and glass fabrication dimensions
• Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)
• Cut-out required—use only the included template

Custom finishes available on request. Contact CRL Technical Sales Shower Door Department for special orders.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template provided—cut-out dimensions may not match other brands.

Order the Positive Close Vienna Hinge (V1E067CH) for a reliable, precise glass shower door hinge—contact CRL or add to cart to get started.
