CRL

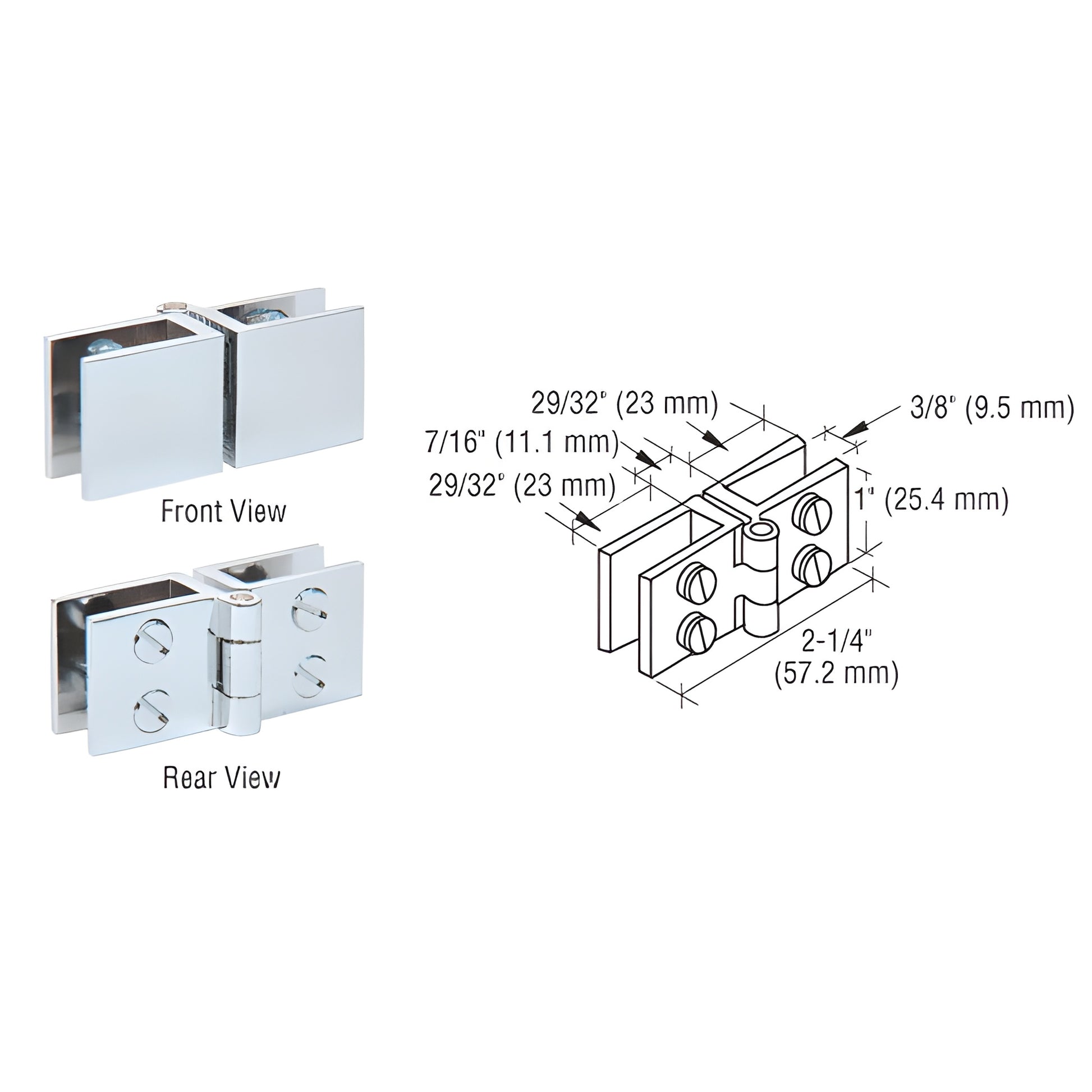

CRL Chrome Wide-Face Glass-to-Glass In-Swing Set-Screw Shower Hinge
Item# EH164
Shipping Weight: 6.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
1 in. (25.4 mm)
Material
Brass
Maximum Door Width
16 in. (406.4 mm)
Open Width
2-1/4 in. (57.2 mm)
Pack Quantity
2
Weight Capacity
8 lbs. (3.6 kg)
- For 1/4" to 5/16" (6 to 8 mm) glass
- No holes or cut-outs required — no-drill glass hinge
- Ideal for showcase cabinets, stereo cabinets, and glass display cases
These CRL Inswing Hinges (SKU: EH164) are glass-to-glass inswing hinges engineered for 180° operation in showcase and stereo cabinets. Secure the glass without drilling using plastic-tipped set screws for a damage-free, no-drill attachment. Recommended maximum panel width: 16" (406 mm). Recommended maximum weight per door: 8 lbs. (3.6 kg). Includes two hinges per pack.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
CAD Drawings - dwg
