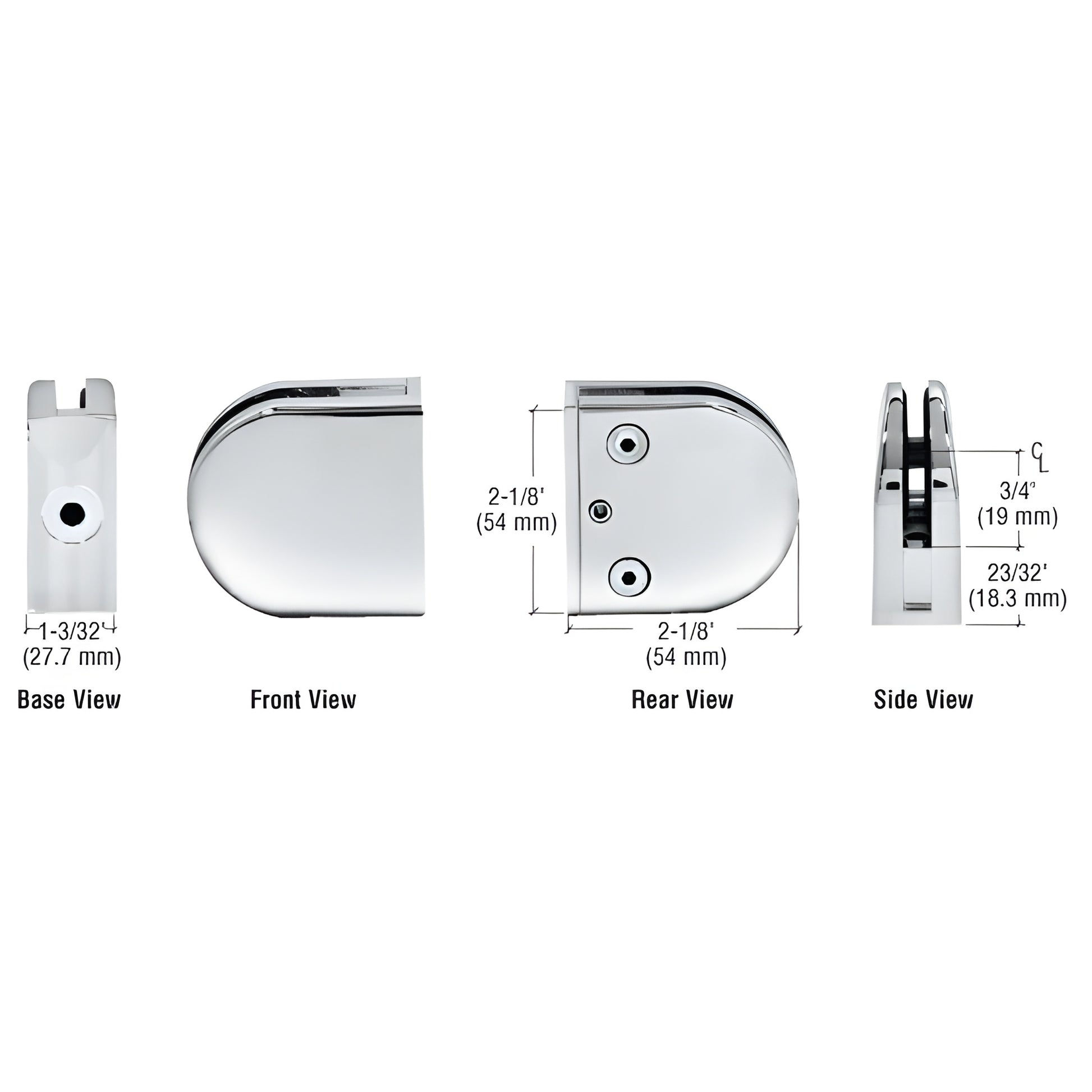

CRL Z-Series Chrome Flat-Base Zinc Glass Clamp for 3/8" Glass

• For 3/8" (10 mm) glass
• Replacement gaskets: CRL Cat. No. Z38RG
• Applications: mezzanines, partitions, railings and windbreaks
• Use monolithic tempered glass
• Steel pin available for additional glass support (included)
• Custom painted finishes available upon request

CRL Z-Series Round Type Radius Base Glass Clamps (SKU: Z410CH) are precision clamps designed for 3/8" (10 mm) glass. Available in zinc or stainless steel, these round-radius base glass clamps provide a clean, secure mounting solution for interior and exterior glass railings, partitions, mezzanines and windbreaks. Stainless steel or powder-painted zinc options increase durability in exterior applications.

To secure the Z-clamp to thin-wall tubing (< 1/8”), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32” (13.5 mm) hole and install the Rivet-Nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required when using the steel pin for additional glass support.

SPECIFICATIONS:

• Glass thickness: For 3/8" (10 mm)
• Base design: Flat radius base
• Mounts to: Square tubing or other flat surfaces
• Materials: Zinc or stainless steel
• Exterior recommendation: Stainless steel or powder-painted zinc for improved corrosion resistance
• Glass fabrication holes (when using steel pin):
  • 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole
  • 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole
• Includes: Rubber gaskets, steel pin (optional use) with grommet
• Replacement hardware: CRL ZCS5X5CH replacement screws

Product Warning:
For interior installations where the glass is not supported from the bottom edge, CRL recommends pinning each glass panel to prevent slippage. Rubber gaskets and steel pins are provided.
